Starter Relay: Locations

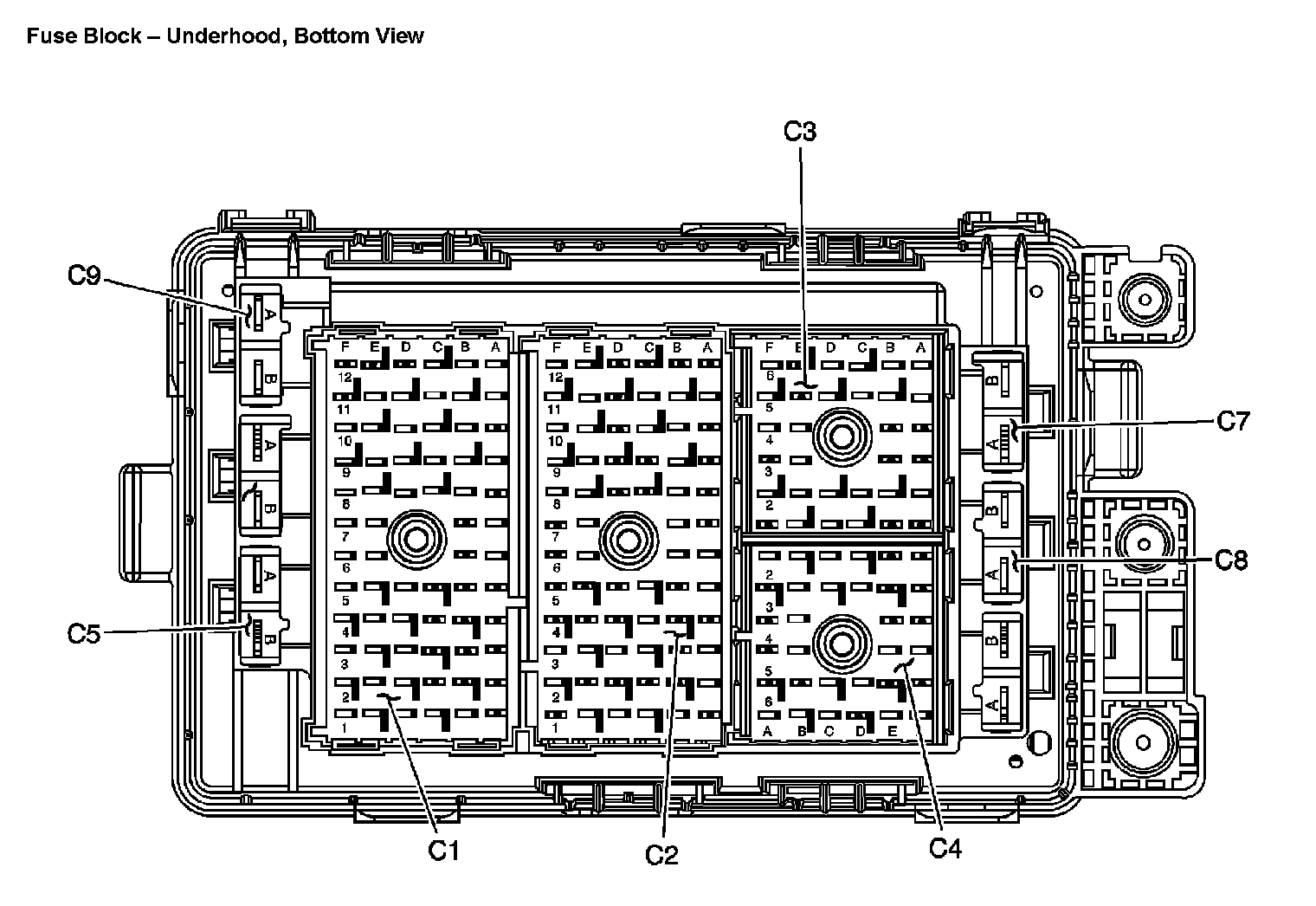

Location View:

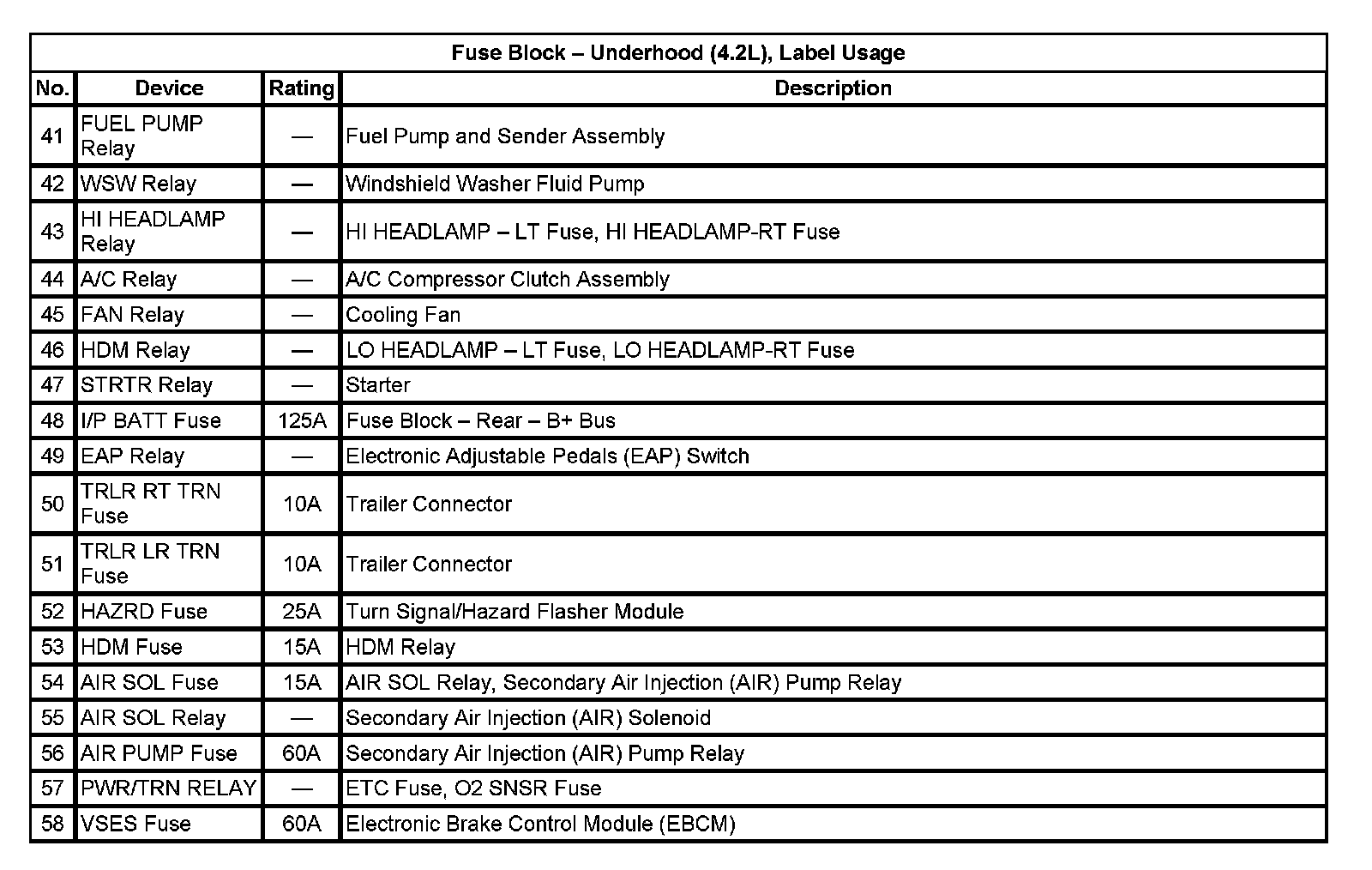

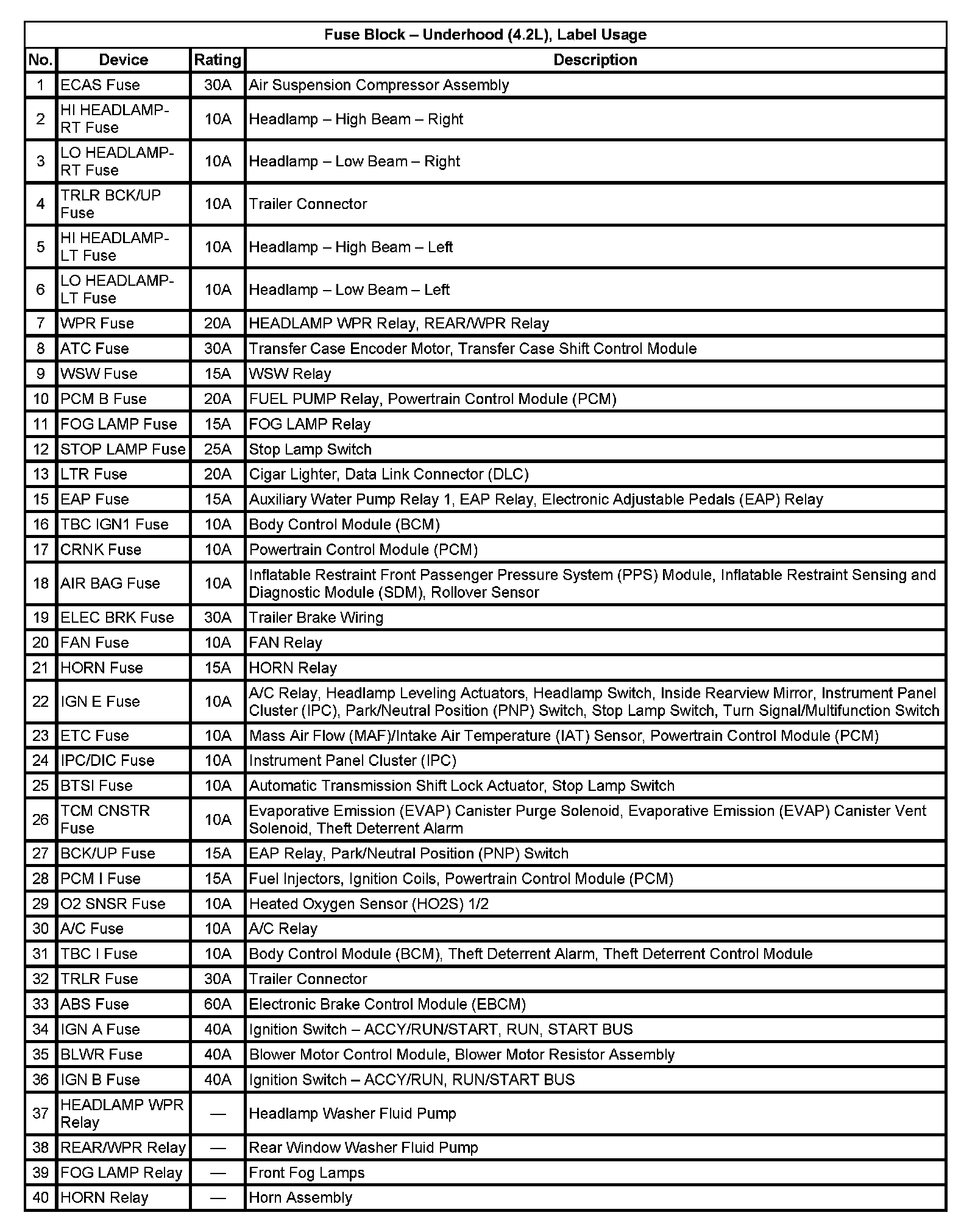

Application Table (Part 1):
Application Table (Part 2):

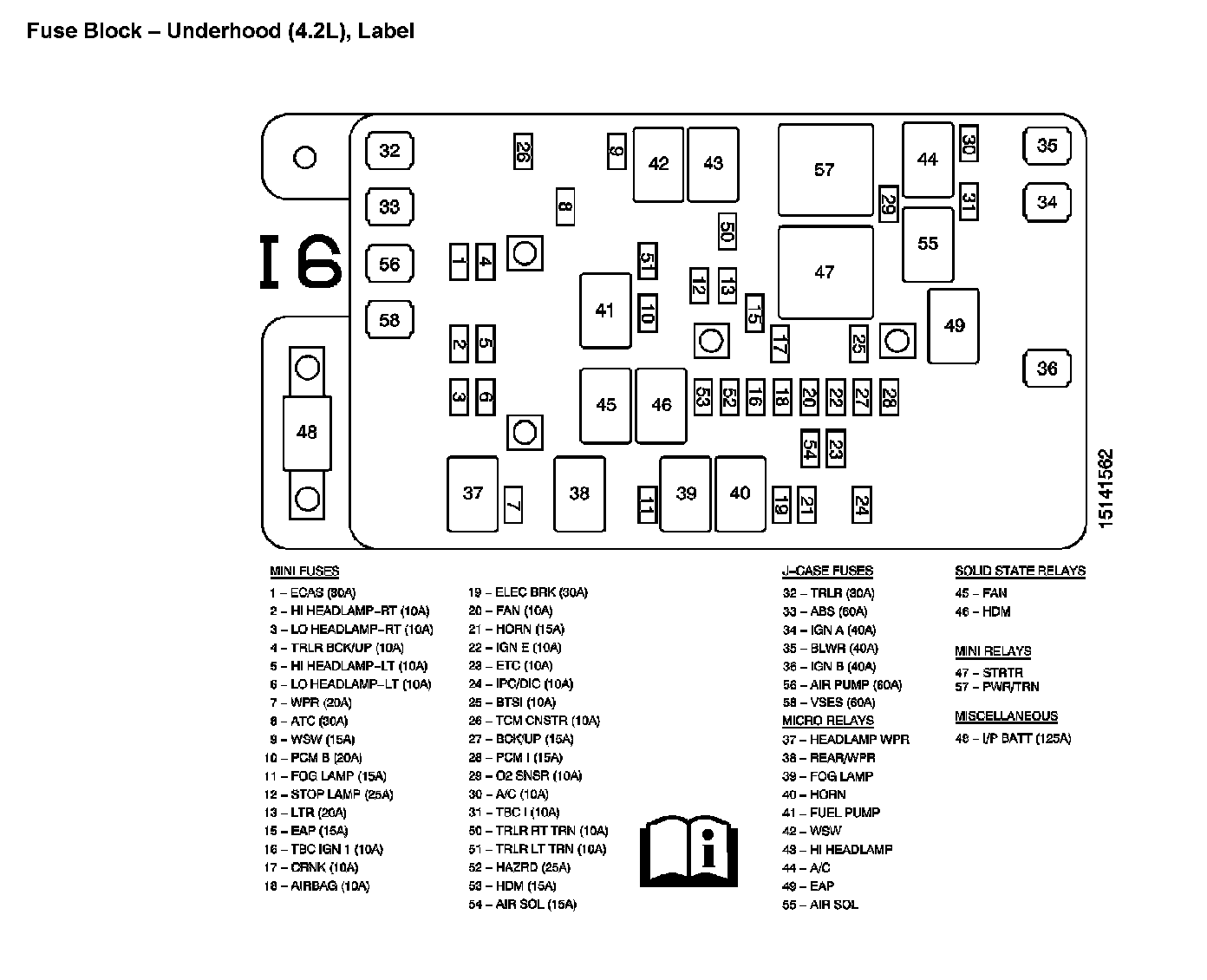

Location View:

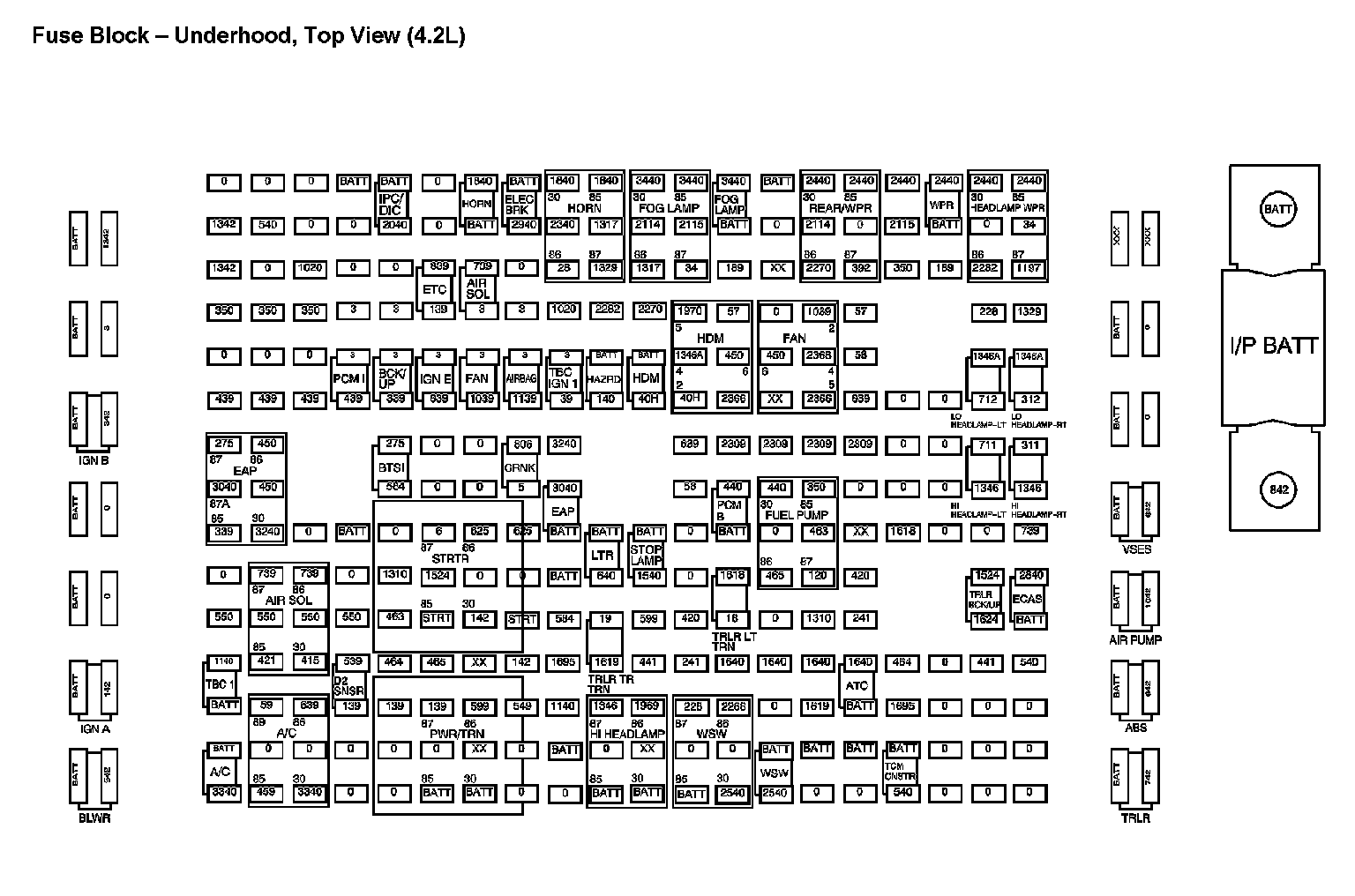

Location View:
