LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Isuzu
>>
2006
>>
Ascender 4WD L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

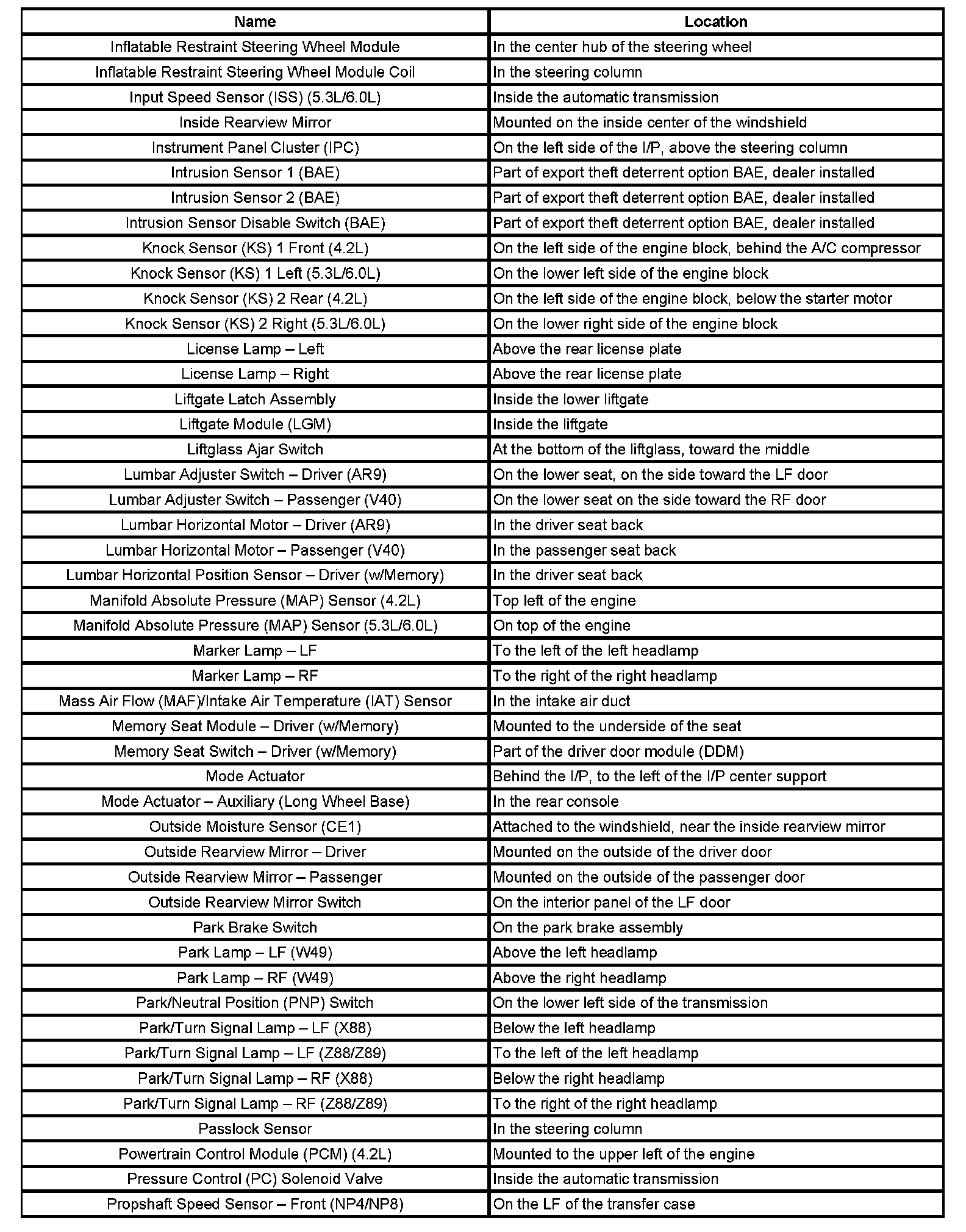

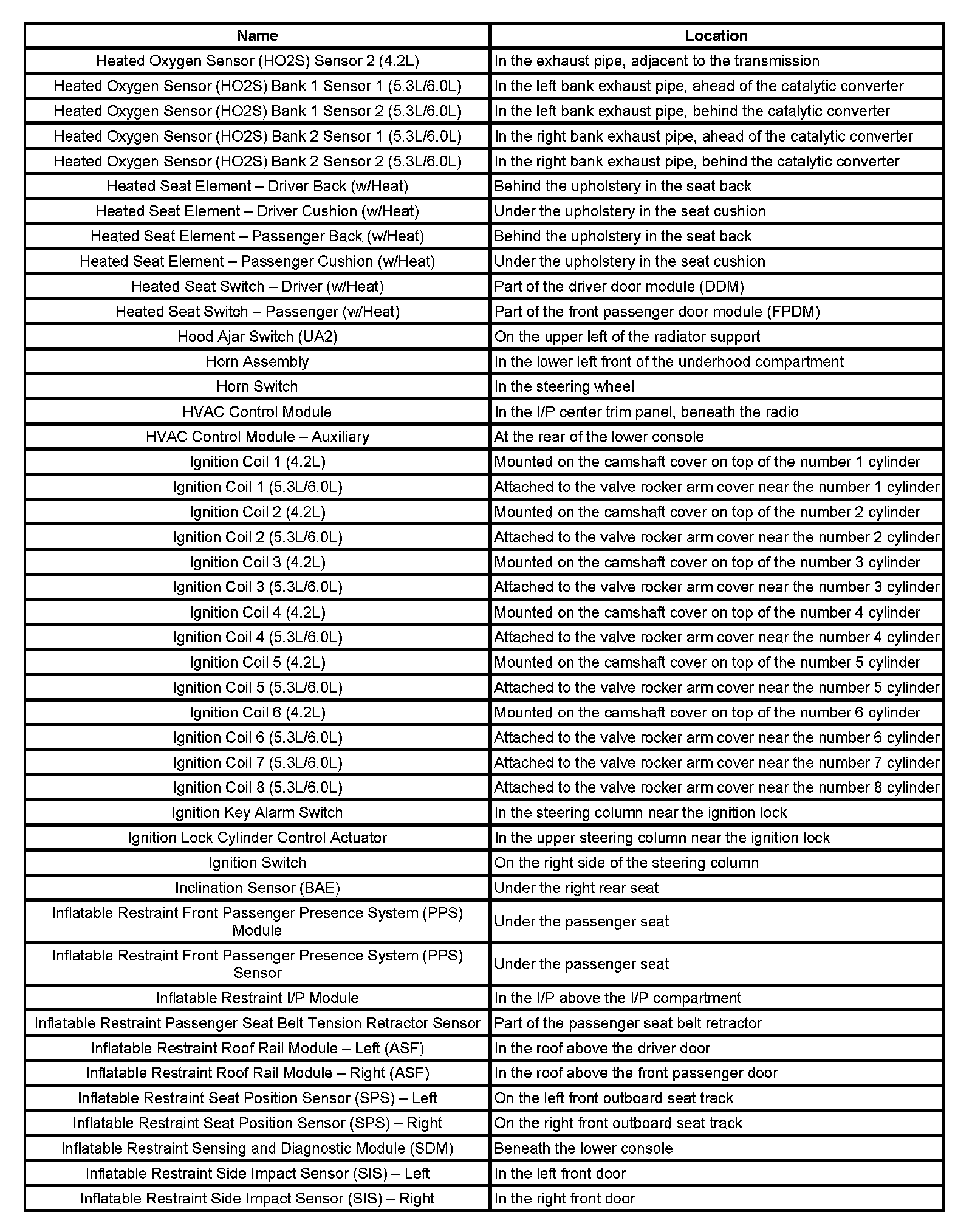

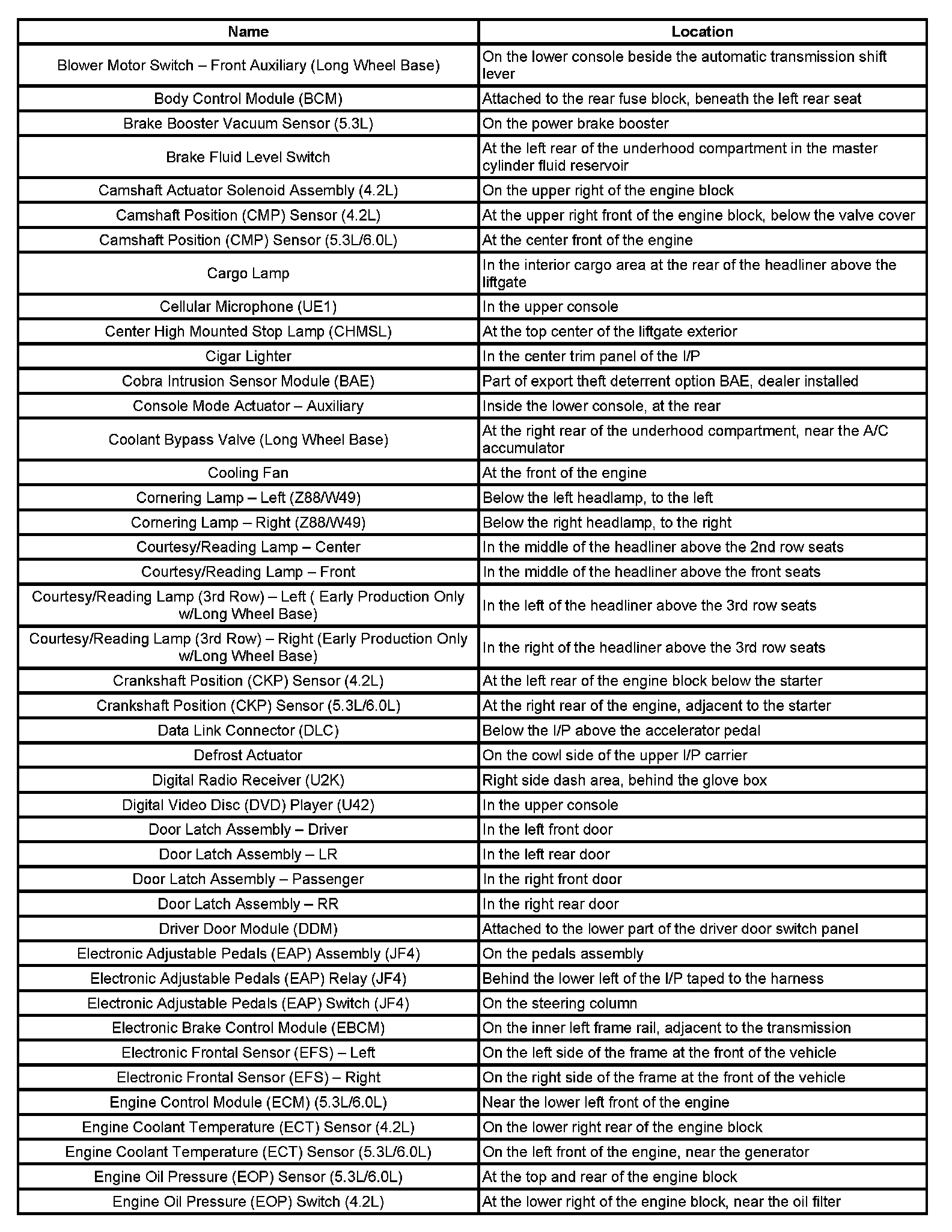

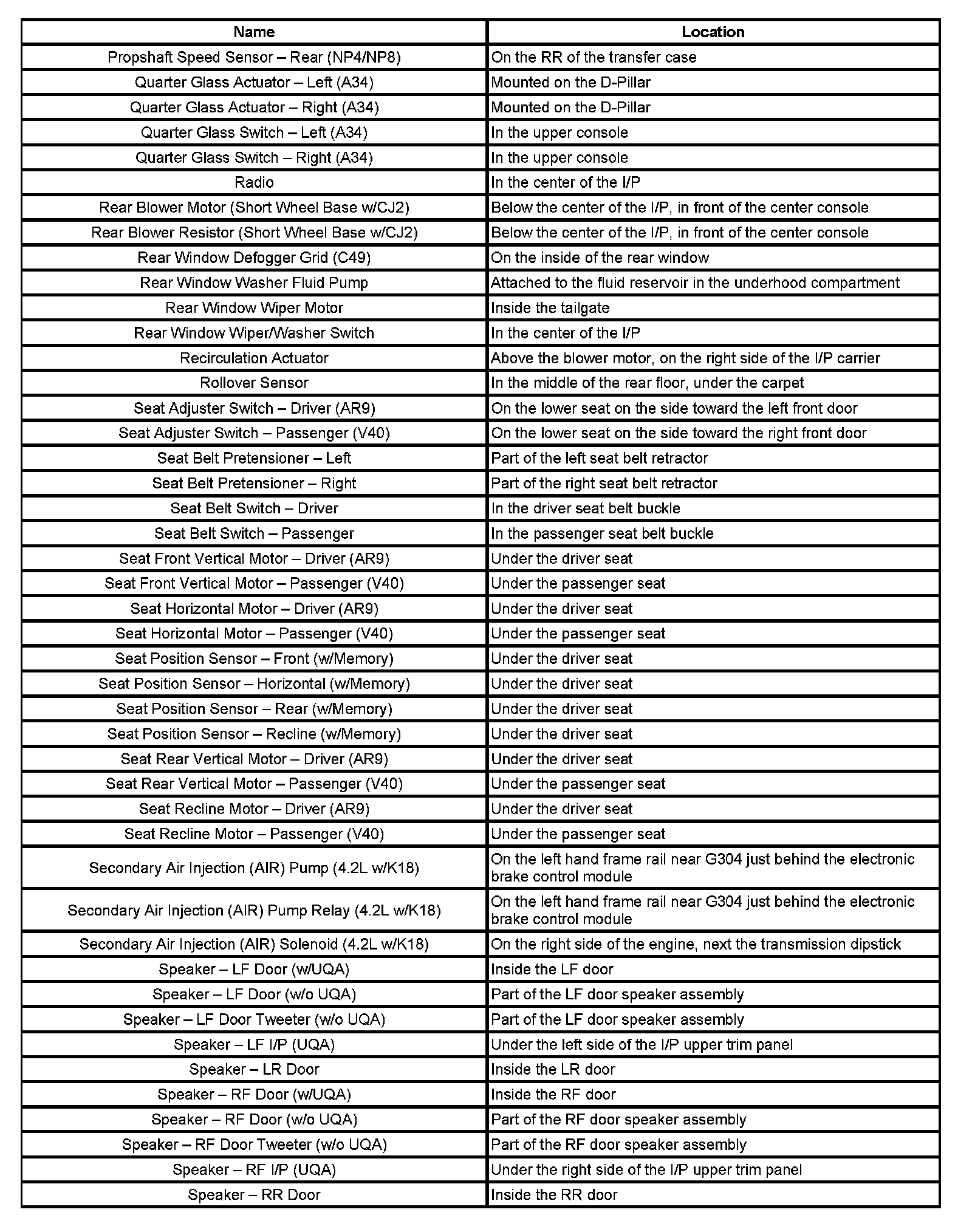

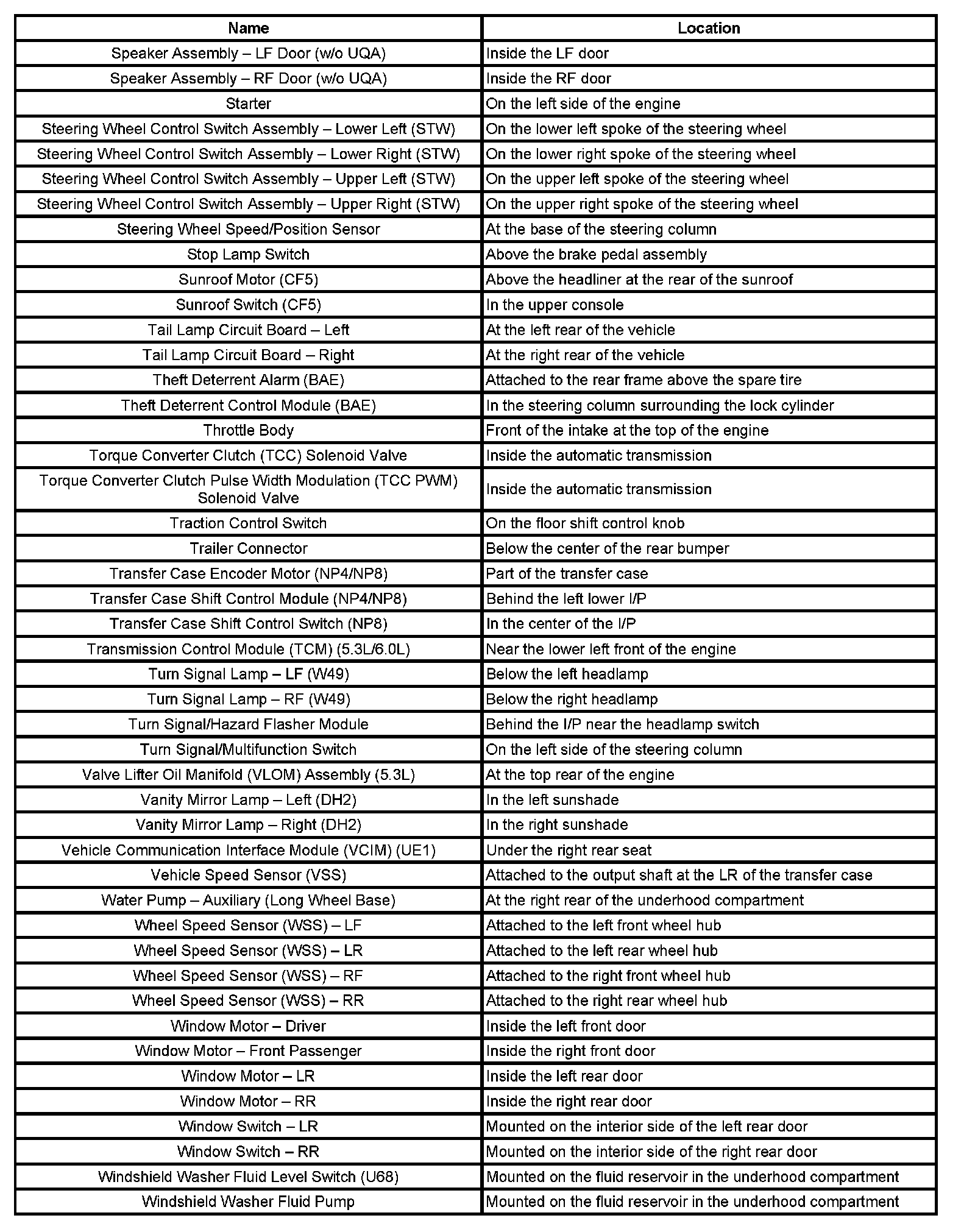

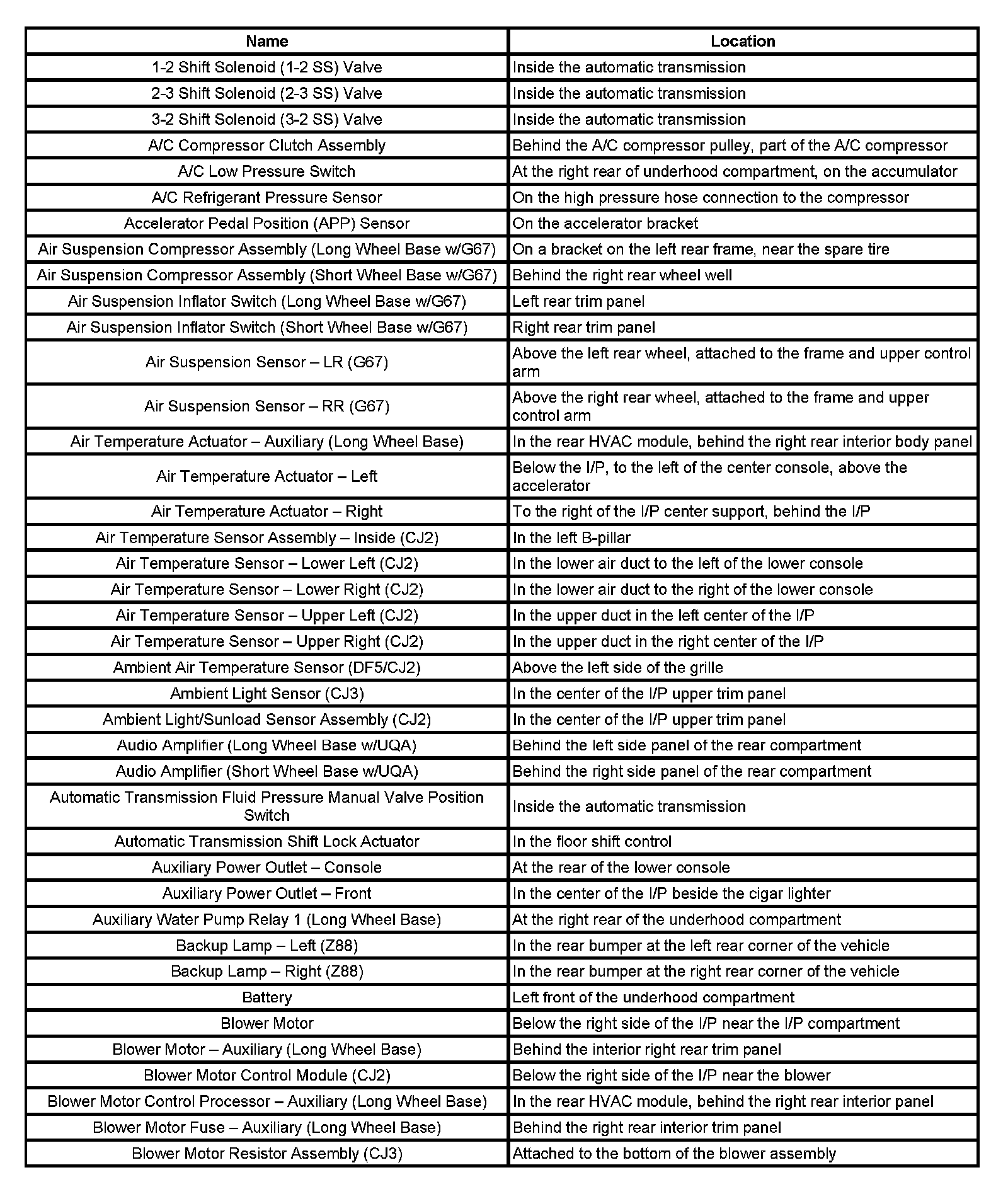

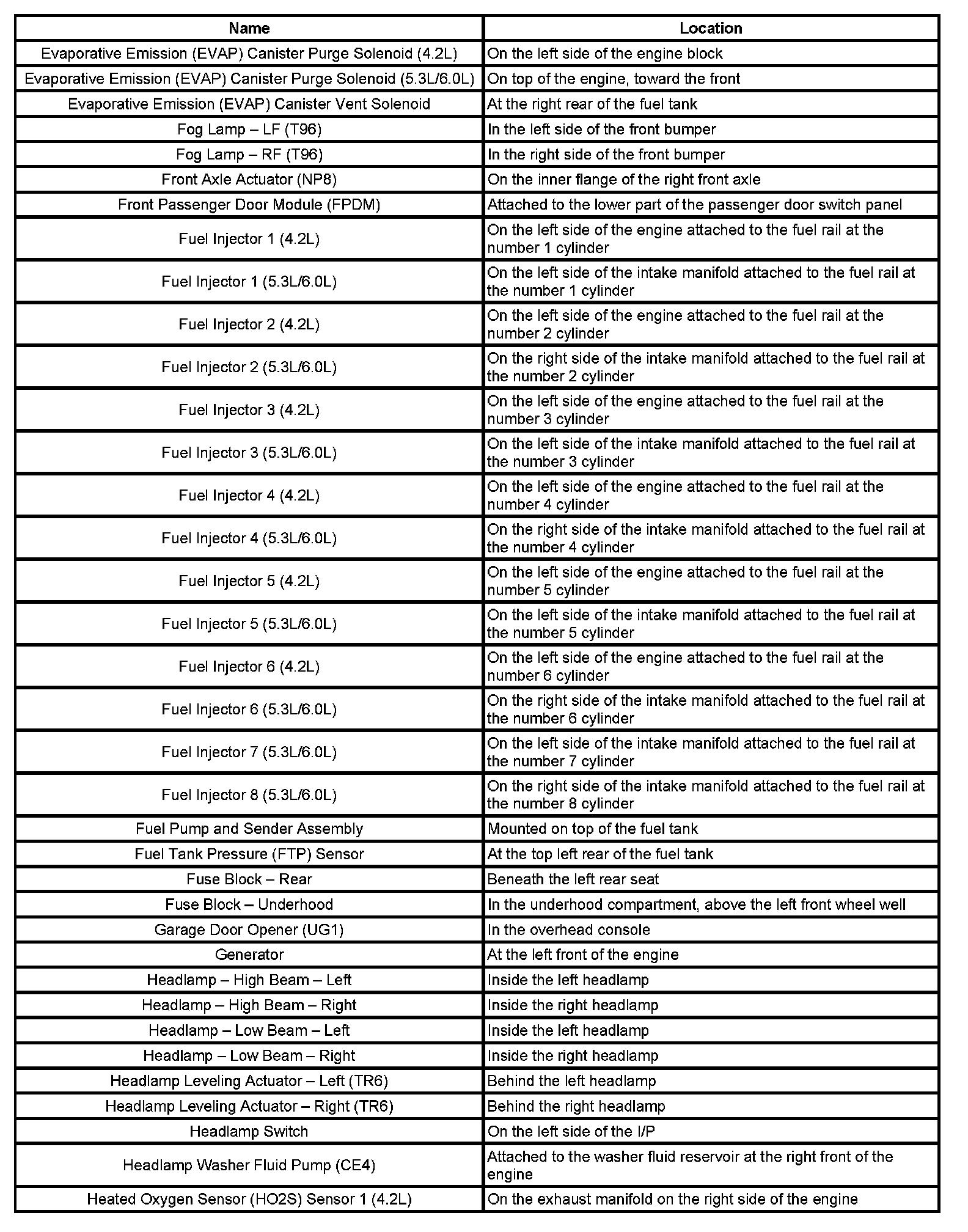

Components
1-2 Sh - Bl:
Bl - En:
Ev - He:
He - In:
In - Pr:
Pr - Sp:
Sp - Wi:
Wi - Ya:
