Body Control Module (BCM) C2

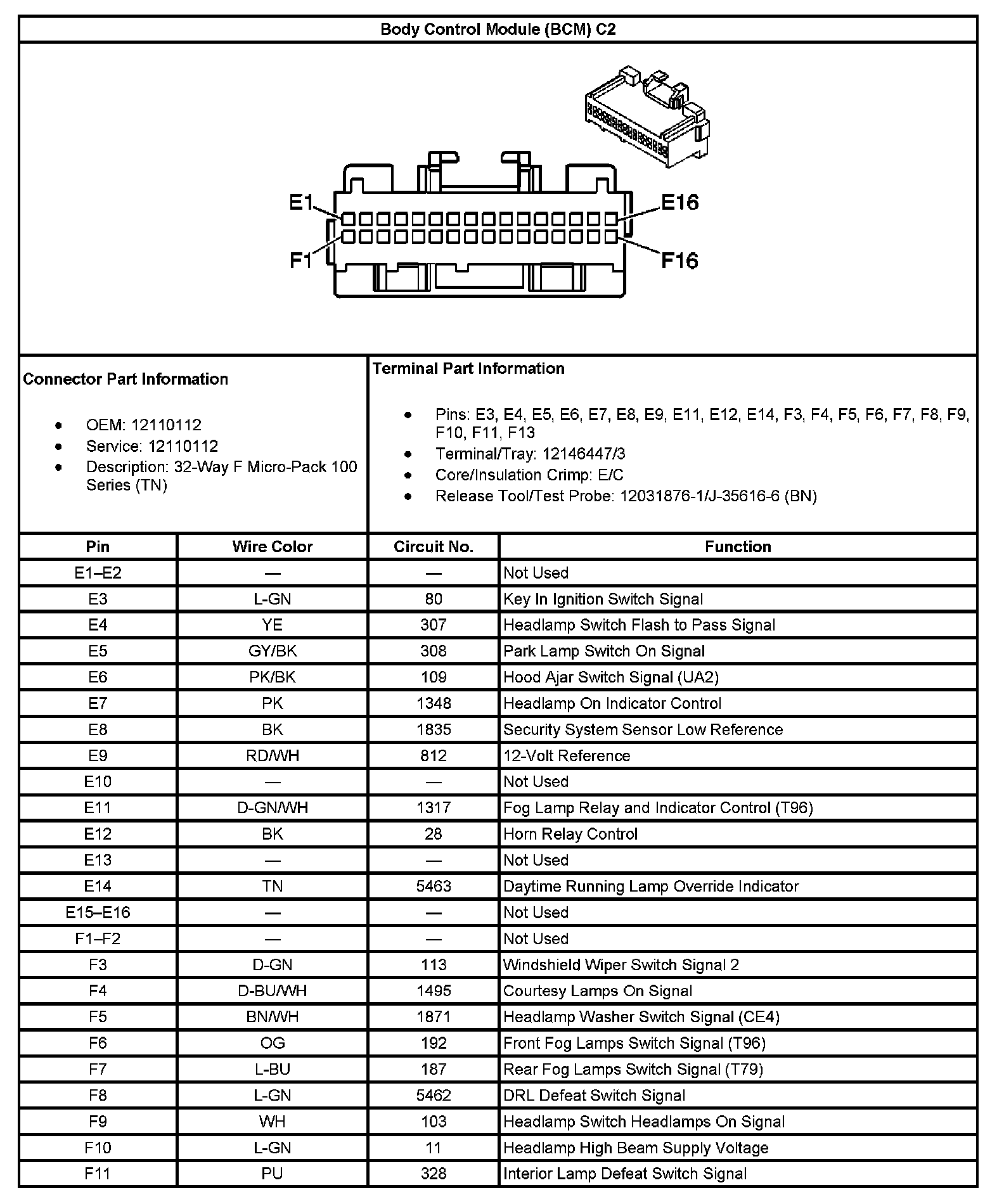

Body Control Module (BCM) C2 (Part 1):
Body Control Module (BCM) C2 (Part 2):
