Door Control Module Schematics

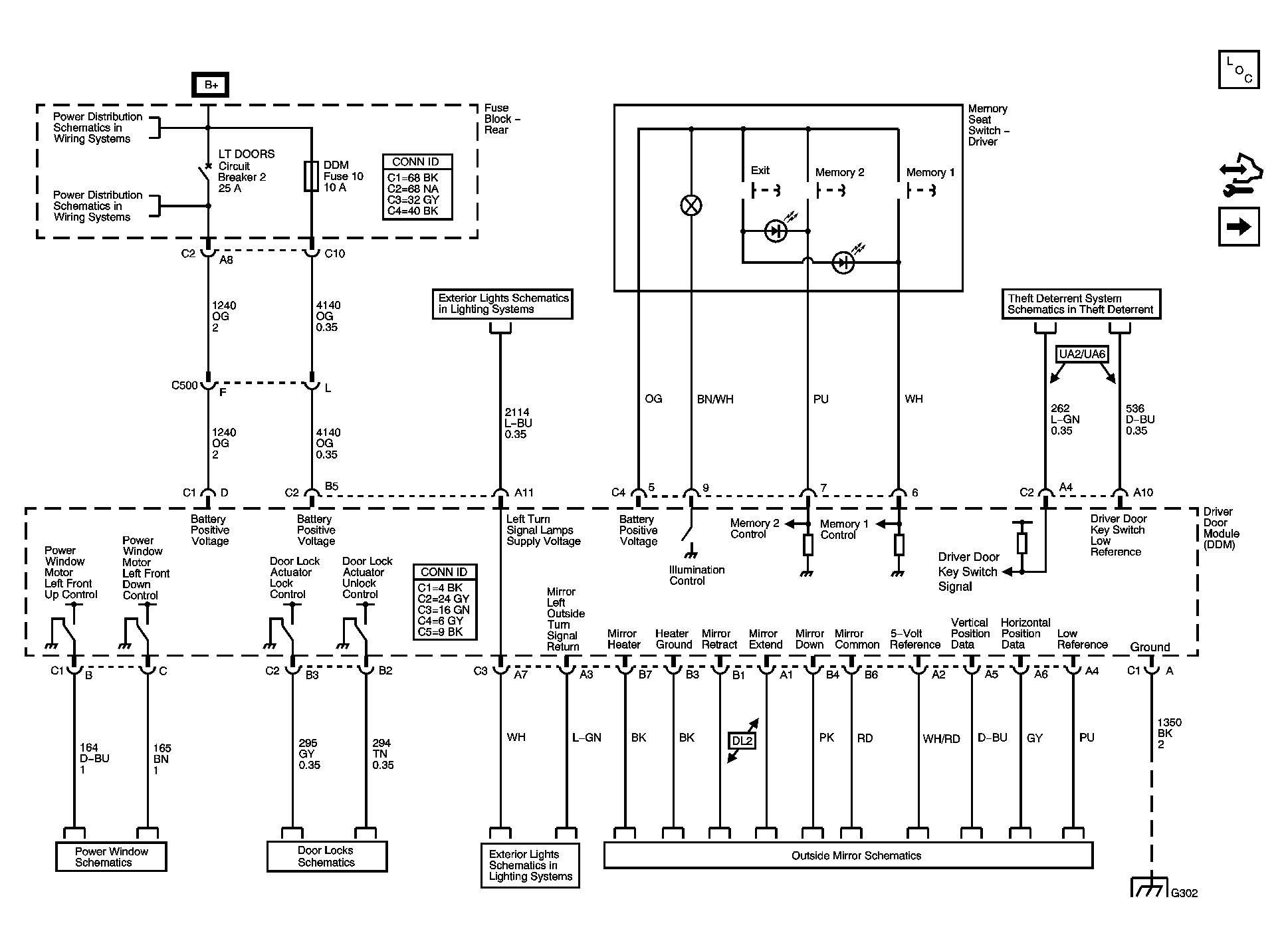

Fig 1: Power, Ground & Subsystem References Wiring Diagram
GM1594386Courtesy of GENERAL MOTORS CORP.
Fig 2: Serial Data & Subsystem References Wiring Diagram
GM1594388Courtesy of GENERAL MOTORS CORP.

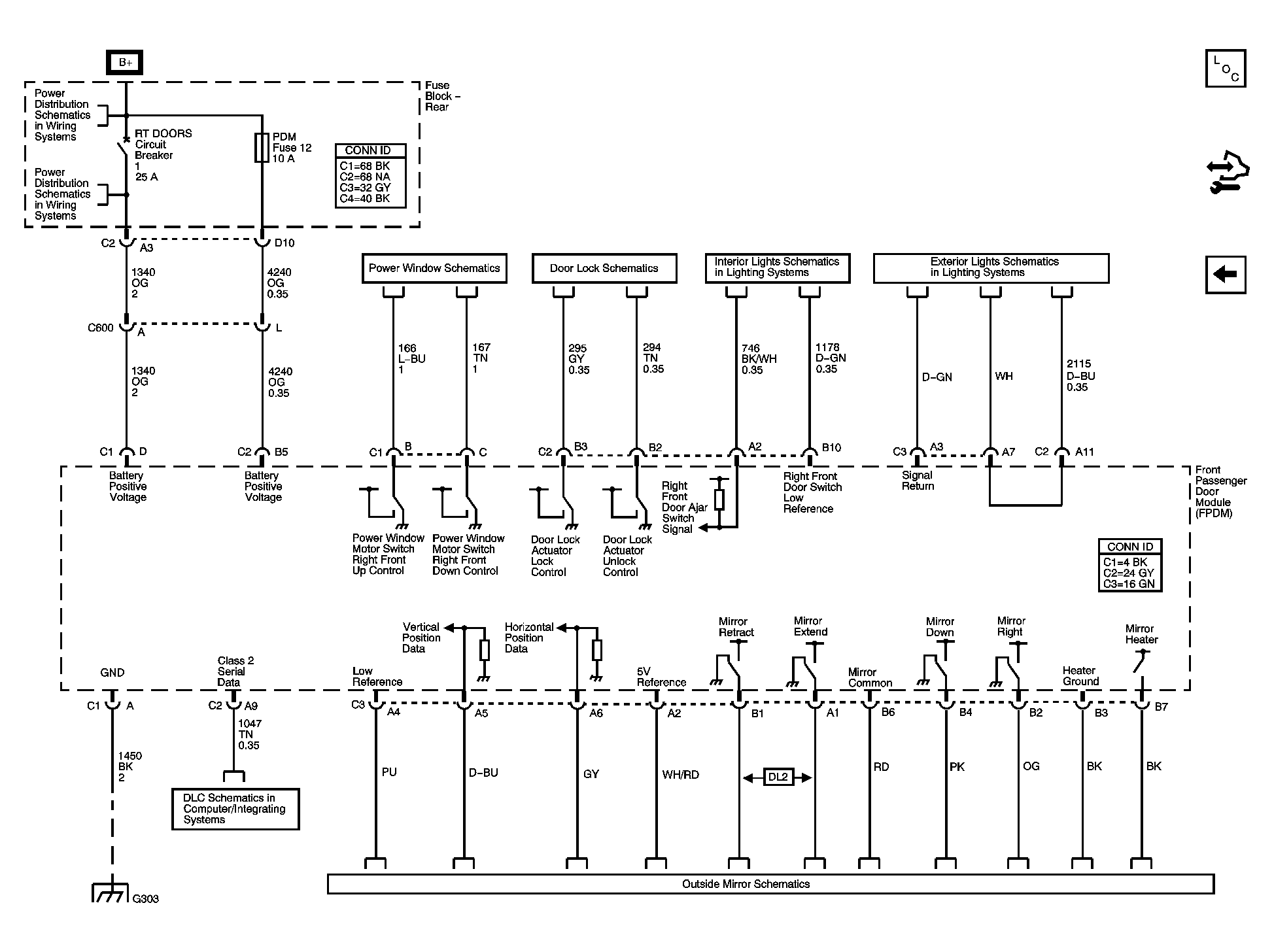

Fig 3: Front Passenger Wiring Diagram
GM1594391Courtesy of GENERAL MOTORS CORP.
