Starter Relay: Locations

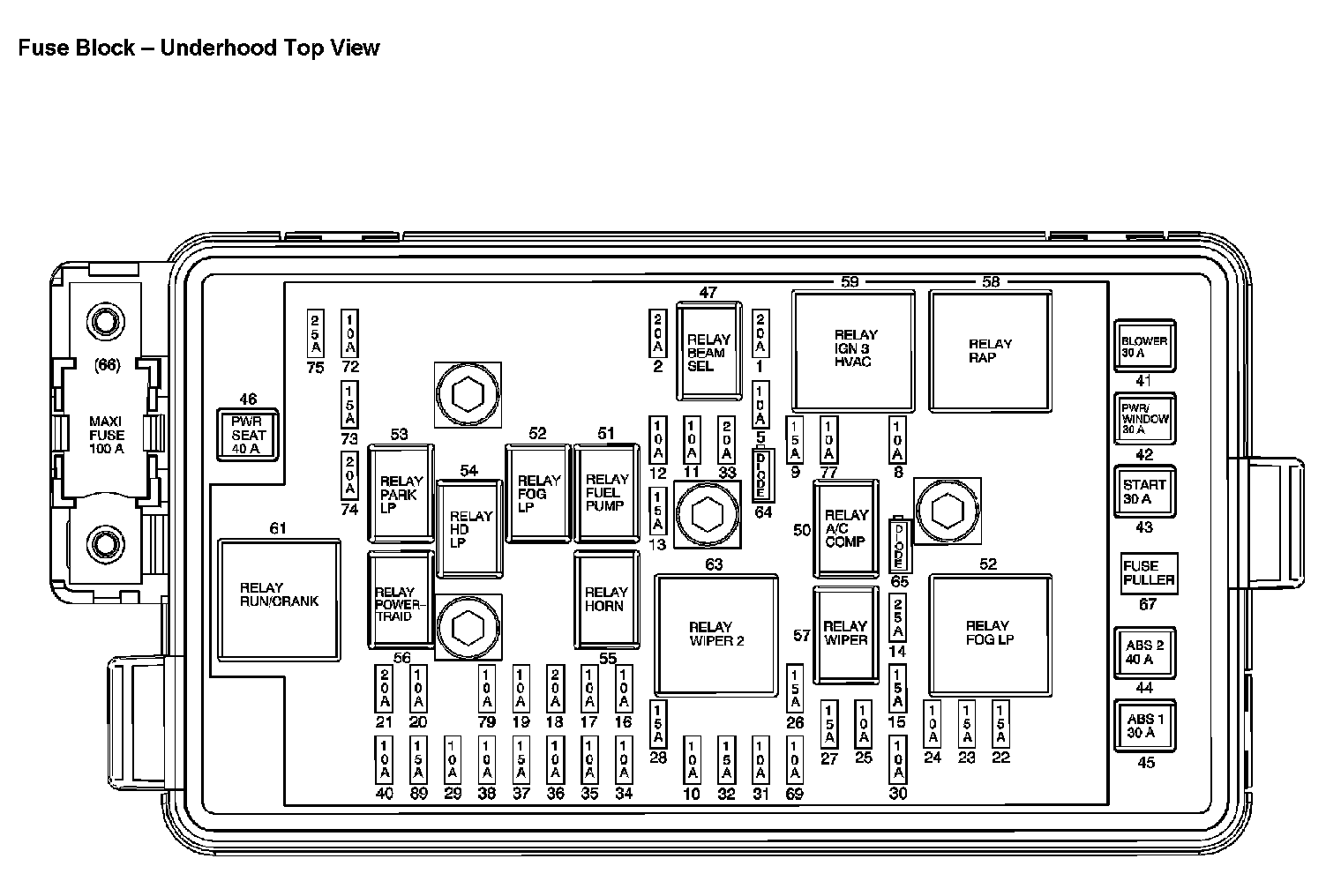

Location View:

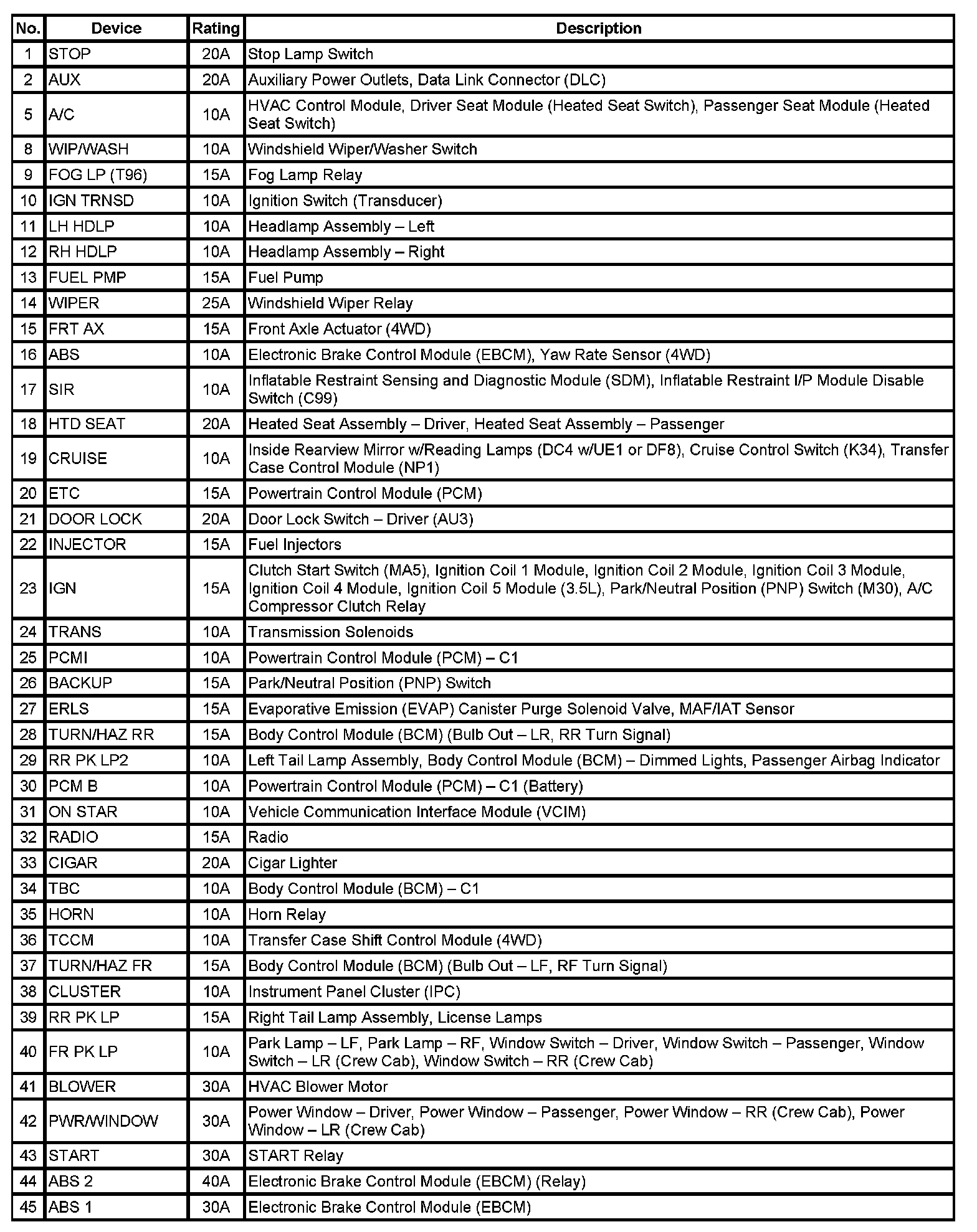

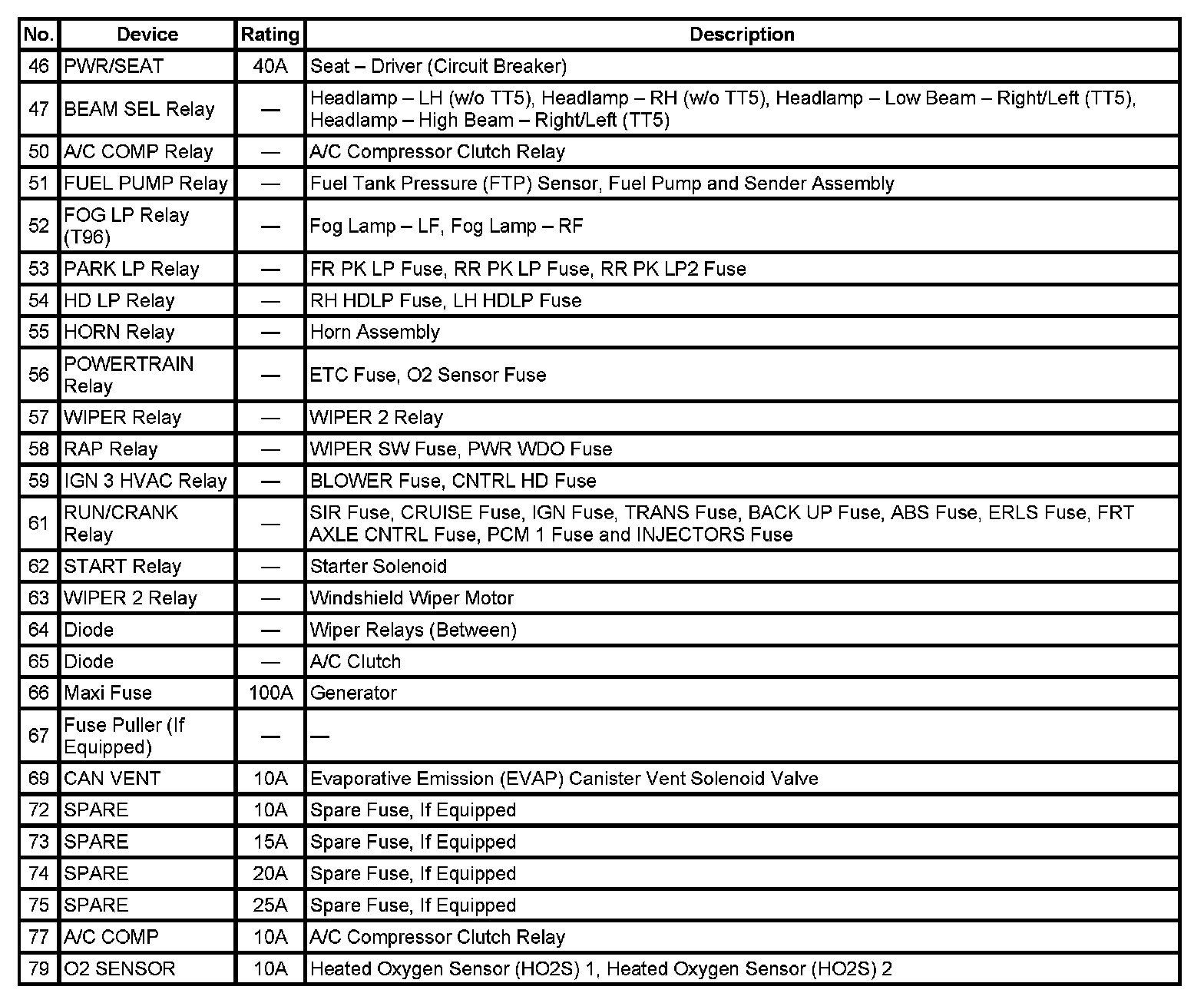

Application Table (Part 1):

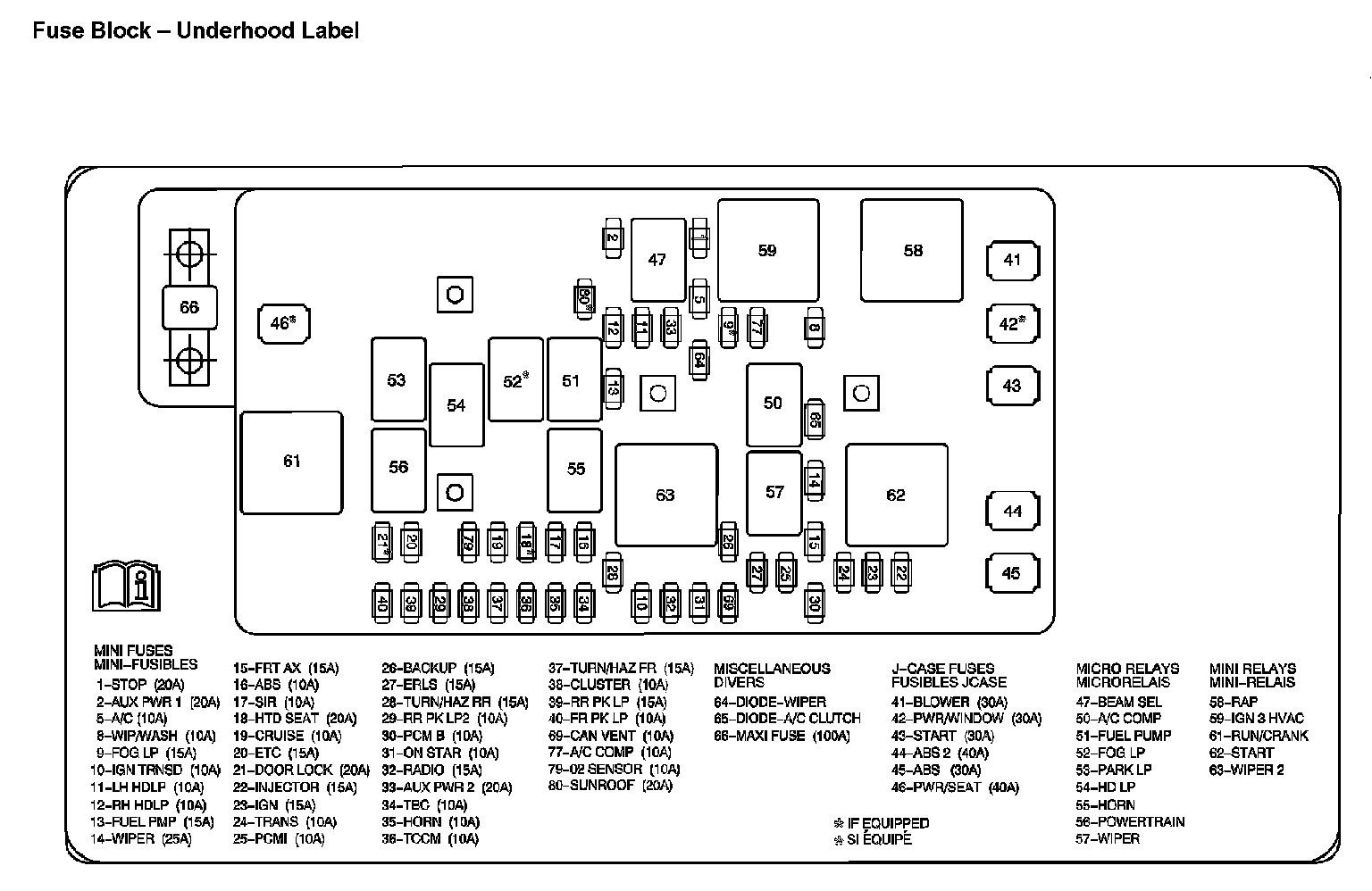

Application Label (Part 2):
Location View:
Location View:
