Isuzu T150 - Transfer Case

Transfer Case Control Component Views

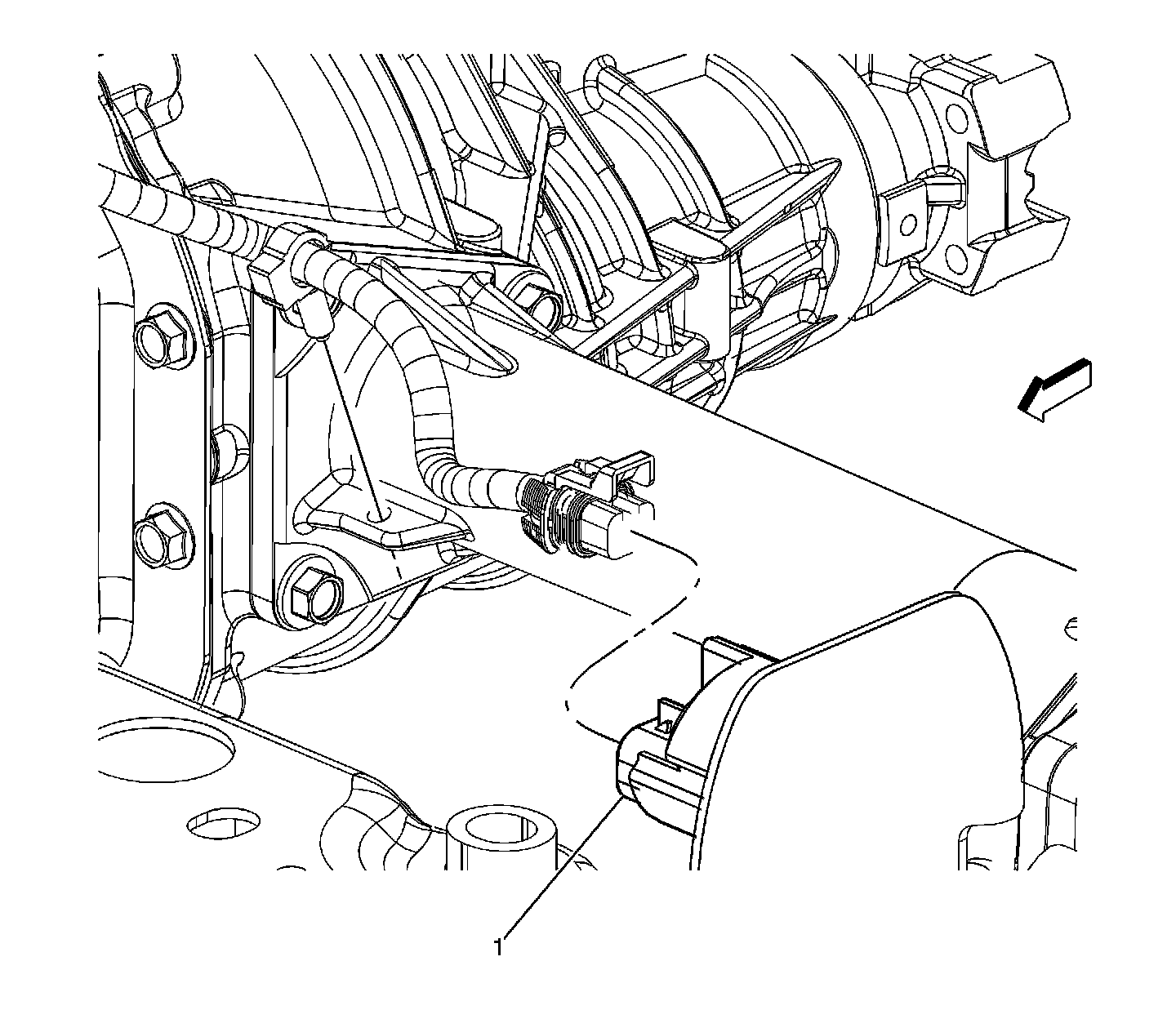

Front Axle Actuator:

1 - Front Axle Actuator

Center of the I/P:

1 - Turn Signal/Multifunction Switch
2 - Instrument Panel Cluster (IPC)
3 - Hazard Switch
4 - Accessory Switch
5 - Ambient Light Sensor
6 - Radio
7 - Auxiliary Power Outlet 2
8 - Auxiliary Power Outlet 1
9 - HVAC Control Module
10 - Headlamp and Panel Dimmer Switch

Transfer Case Shift Control Module:

1 - Transfer Case Shift Control Module

Transfer Case Components:

1 - Park/Neutral Position (PNP) Switch (M30)
2 - Heated Oxygen Sensor (HO2S) 2
3 - Vehicle Speed Sensor (VSS)
4 - Transfer Case Neutral Switch (4WD)
5 - Transfer Case 2/4 Wheel Indicator Switch (4WD)
6 - Transfer Case Encoder Motor (4WD)
7 - Evaporative Emission (EVAP) Canister Vent Solenoid
8 - Fuel Tank Pressure (FTP) Sensor
9 - Fuel Pump and Sender Assembly
10 - Fuel Pump
11 - Transfer Case
