Stationary Windows Component Views

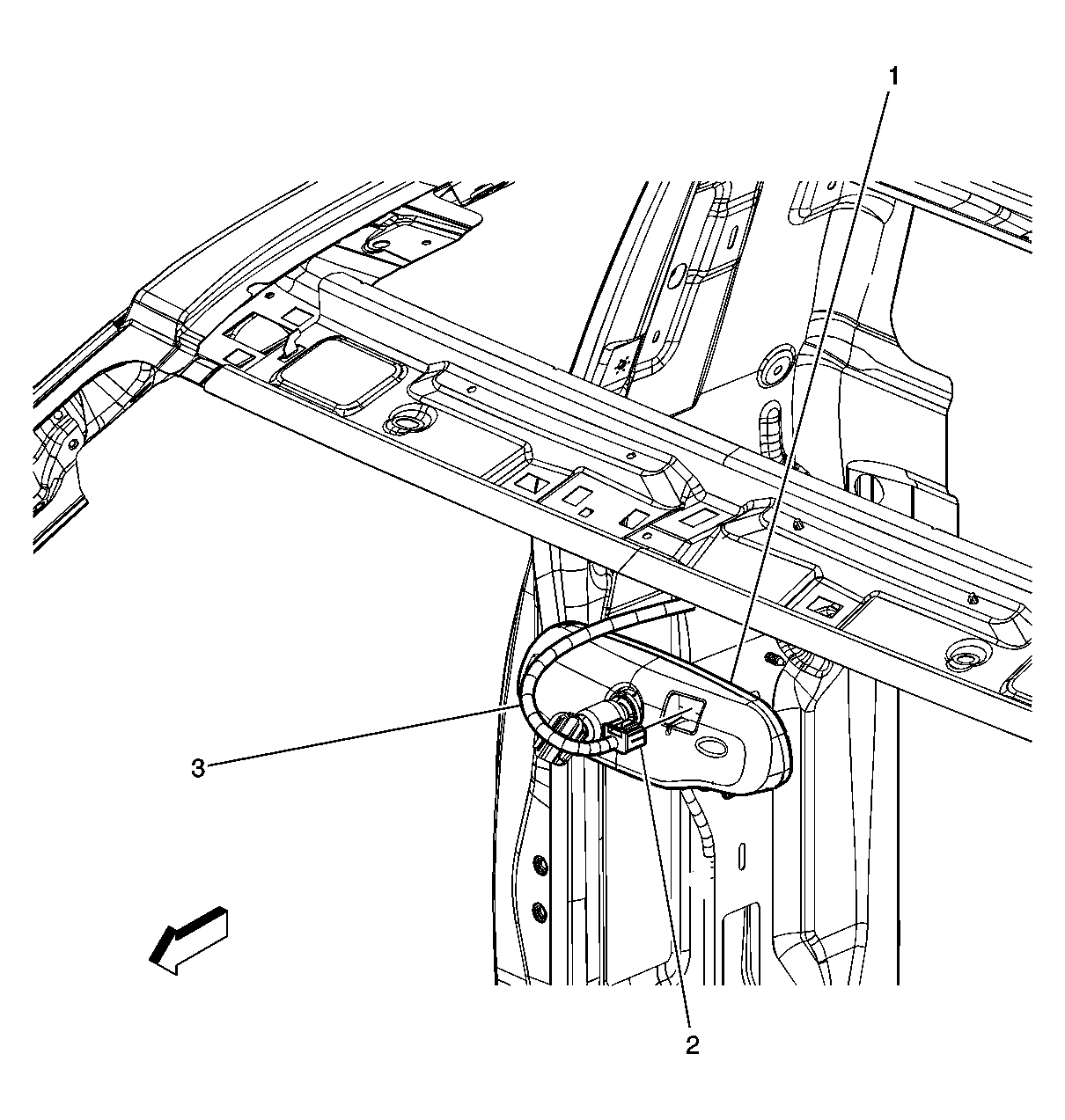

Fig 1: Inside Rearview Mirror (UE1) Component View
GM1364214Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Rearview Mirror
2 Inside Rearview Mirror Connector
3 Body Harness

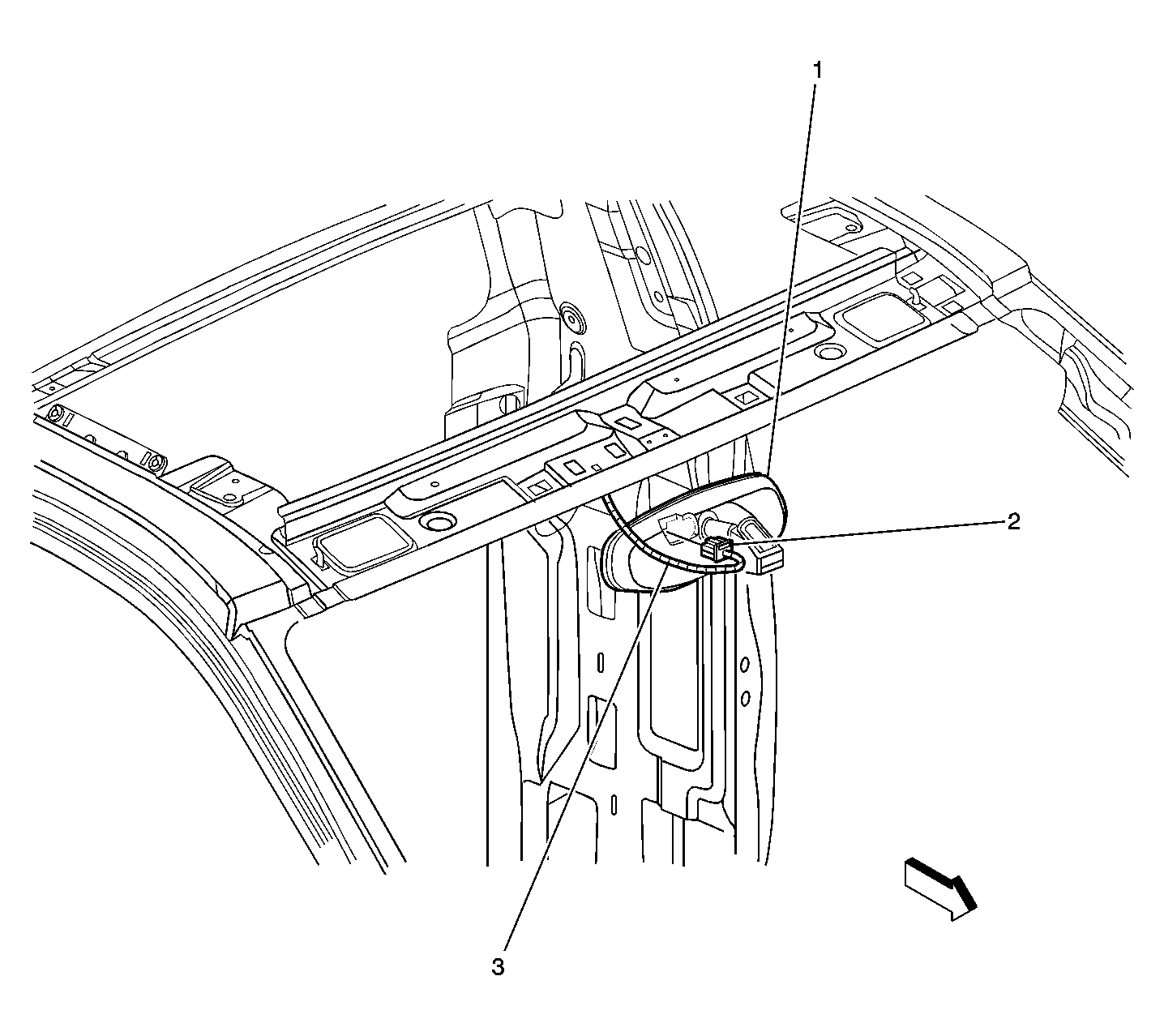

Fig 2: Inside Rearview Mirror (w/o UE1) Component View
GM1364216Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Rearview Mirror
2 Inside Rearview Mirror Connector
3 Body Harness

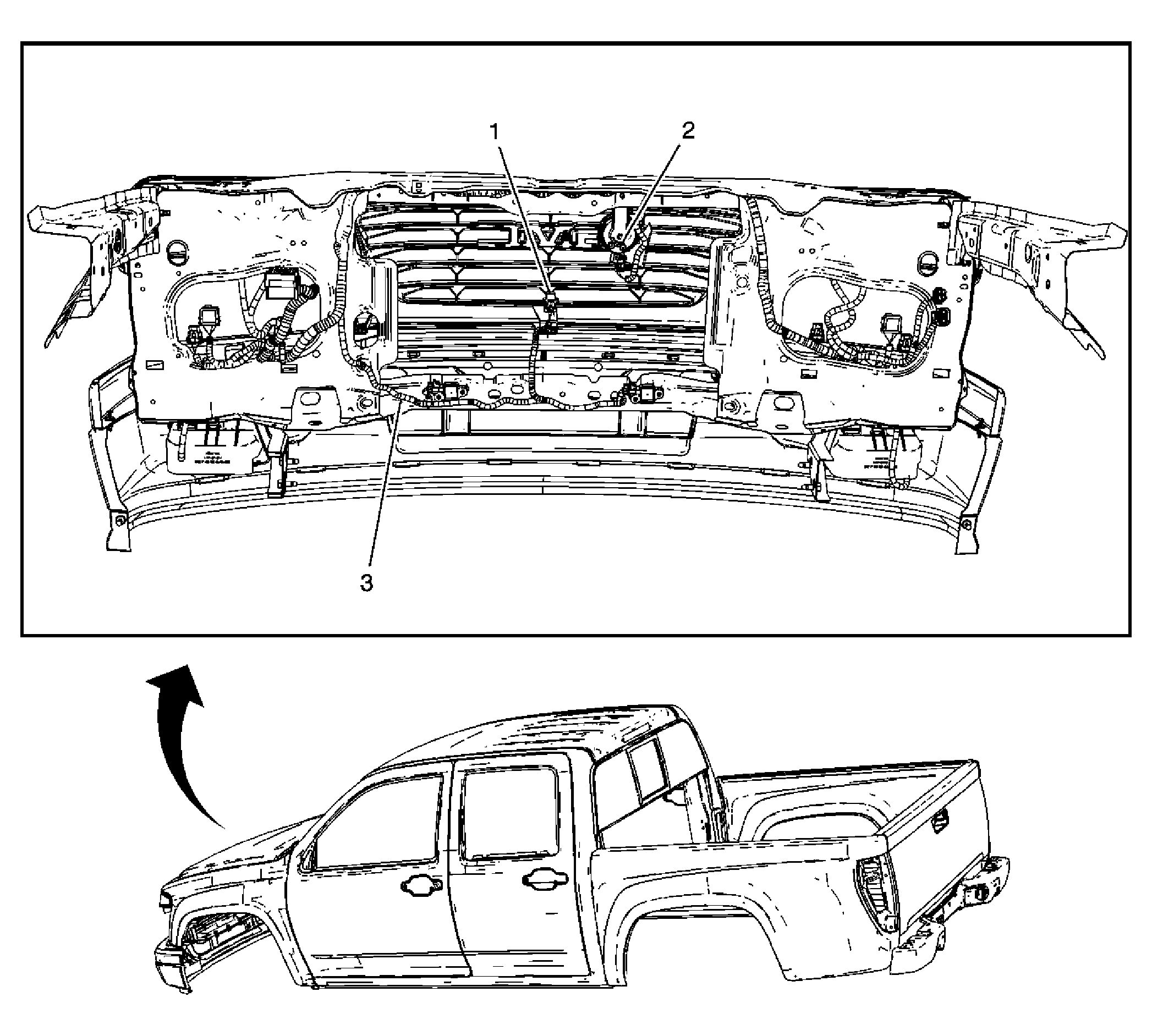

Fig 3: Front Of Engine Compartment Component View
GM1361878Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ambient Air Temperature (AAT) Sensor (DF8)
2 Horn Assembly
3 Forward Lamp Harness
