Installation Procedure

  1. Install a stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
  2. Install the window side reveal moldings to the vehicle. Refer to Windshield Side Reveal Molding Replacement .

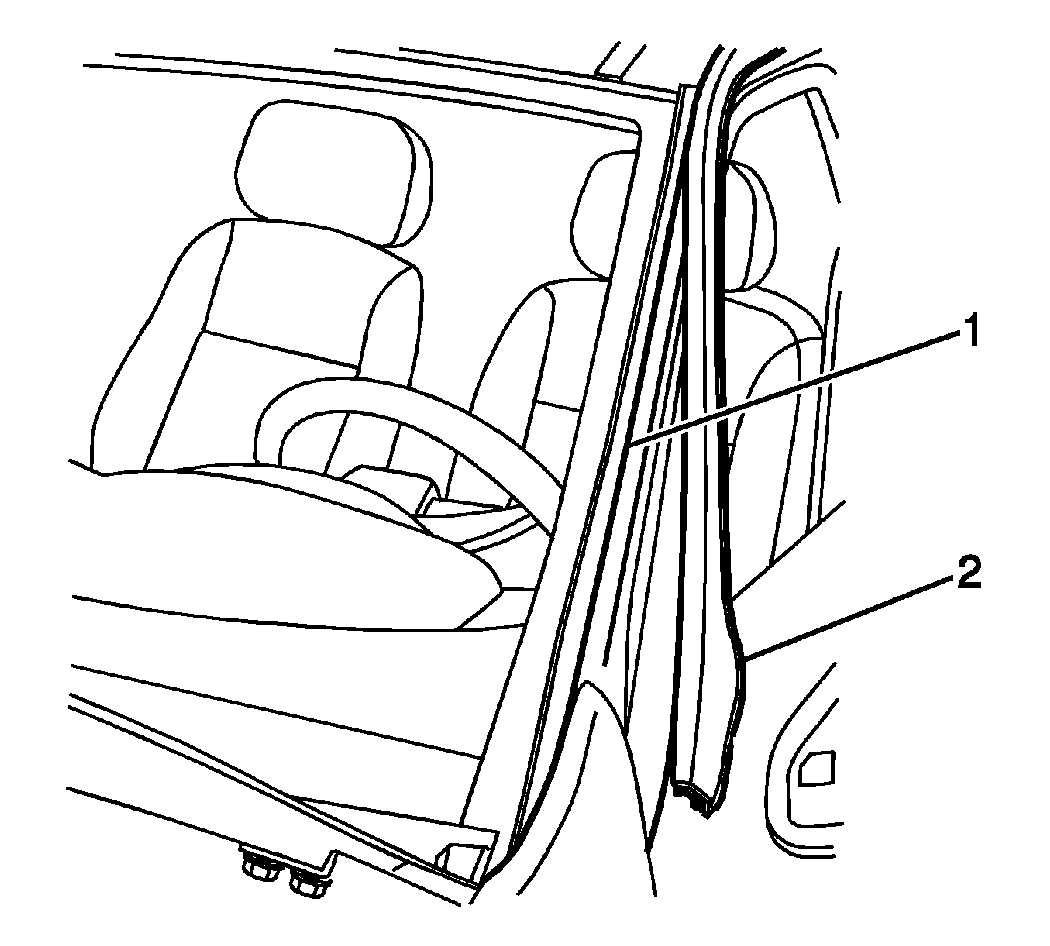

    3. Fig 1: View Of Windshield Reveal Molding & Auxiliary Weatherstrip
    GM1331304Courtesy of GENERAL MOTORS CORP.
  3. Reposition the auxiliary weatherstrip (2) to the pinch-weld flange.
  4. Install the cowl air inlet grille panel. Refer to Air Inlet Grille Panel Replacement in Body Front End.
  5. Install the window wiper arms. Refer to Wiper Arm Replacement in Wipers/Washer Systems.
  6. Install the antenna mast. Refer to Fixed Antenna Mast Replacement in Entertainment.
  7. Install the inside rear view mirror. Refer to Rearview Mirror Replacement .
  8. Close the hood.
  9. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
