Seat Temperature Element

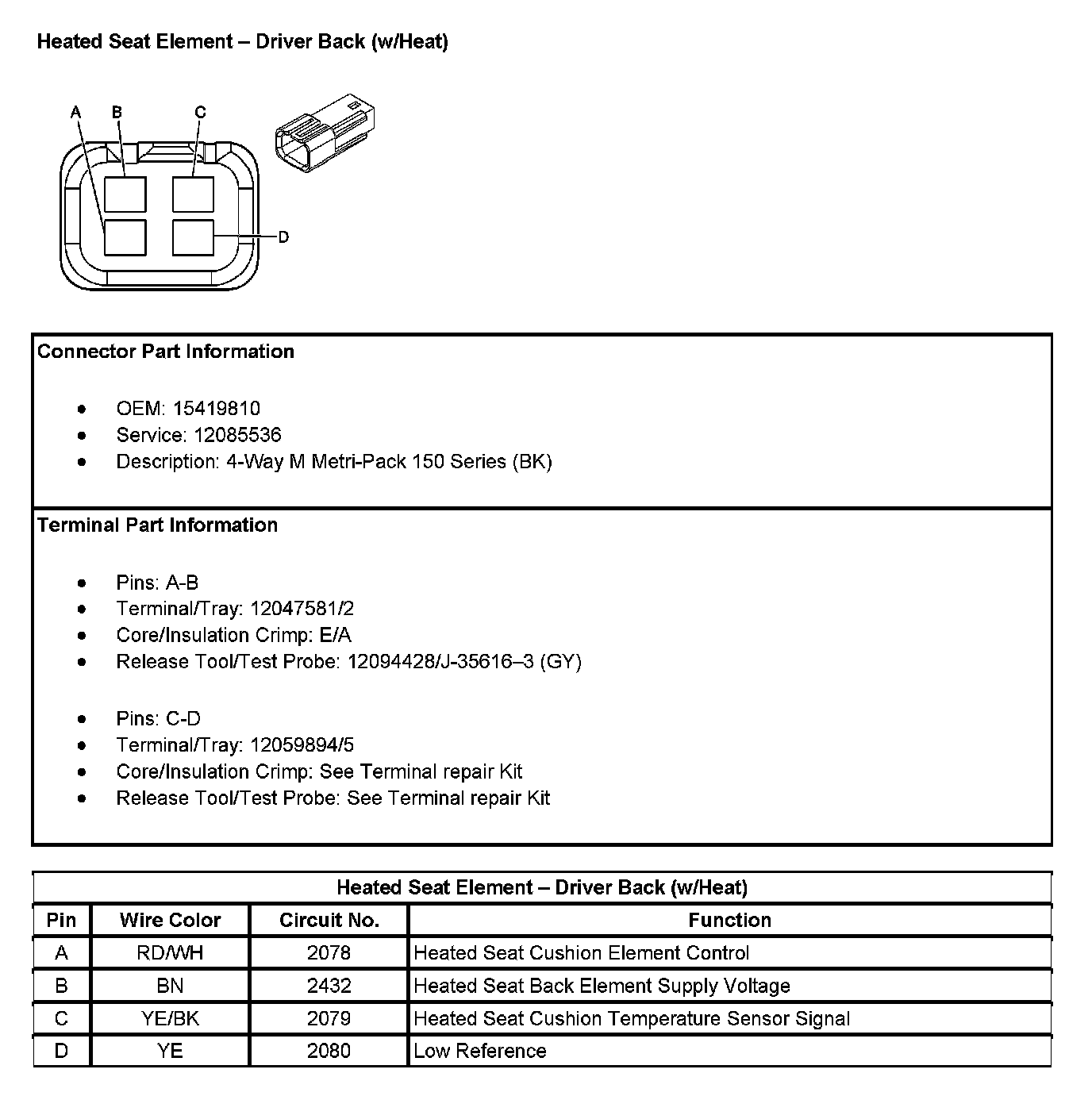

Heated Seat Element - Driver Back (w/Heat):



Heated Seat Element - Driver Cushion (w/Heat):

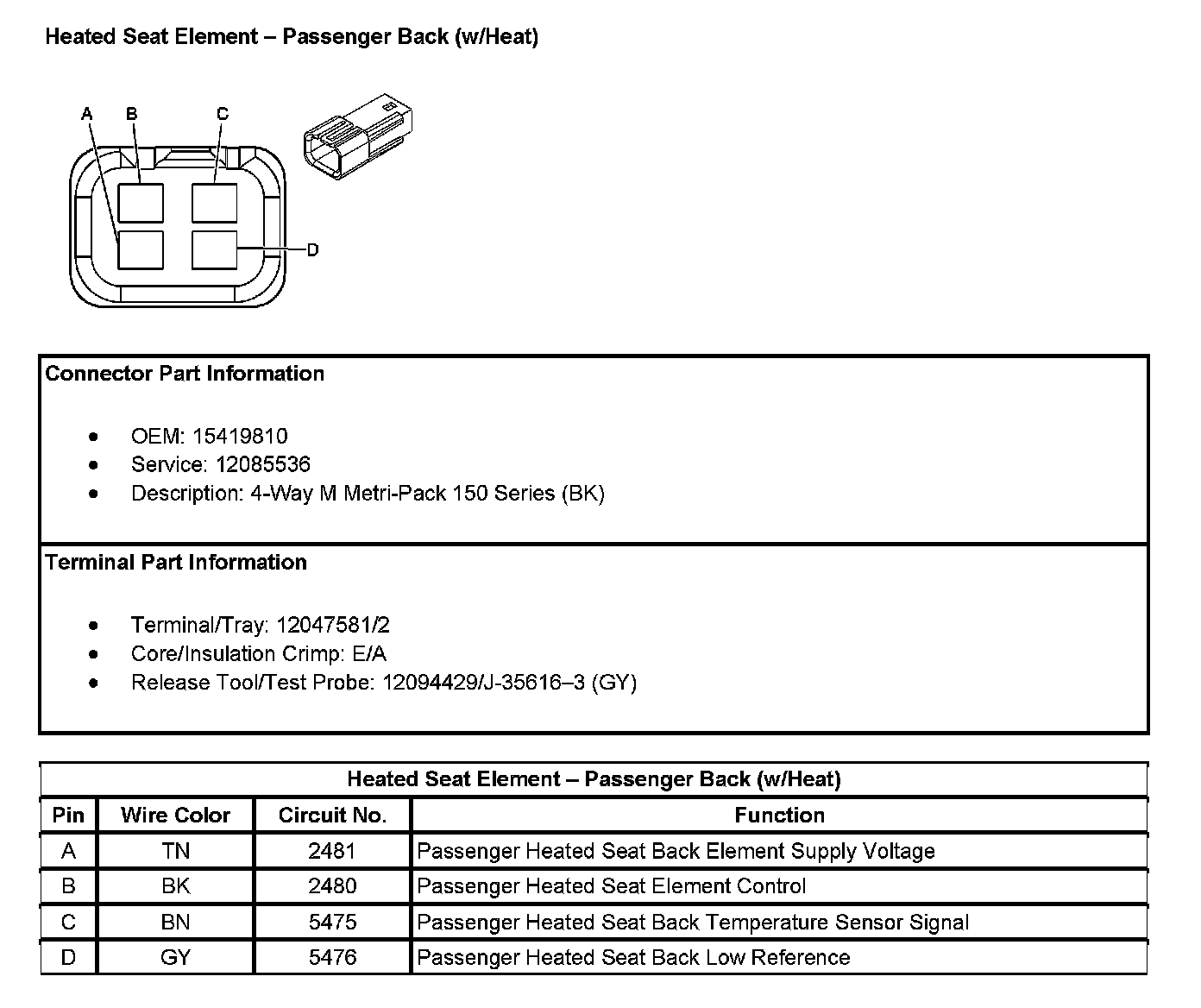

Heated Seat Element - Passenger Back (w/Heat):



Heated Seat Element - Passenger Cushion (w/Heat):
