Rear Fuse Block

Fuse Block - Rear, Label:

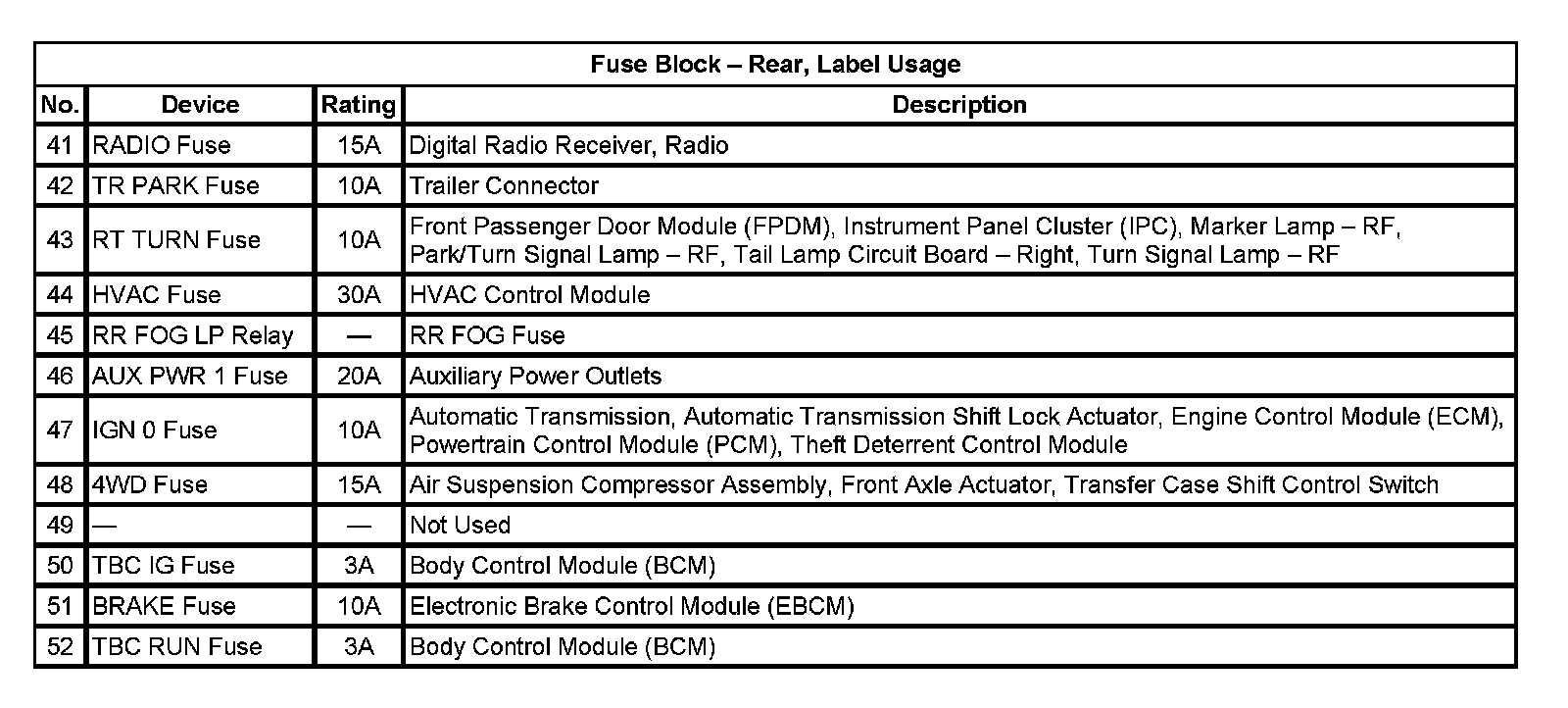

Fuse Block - Rear, Label Usage:

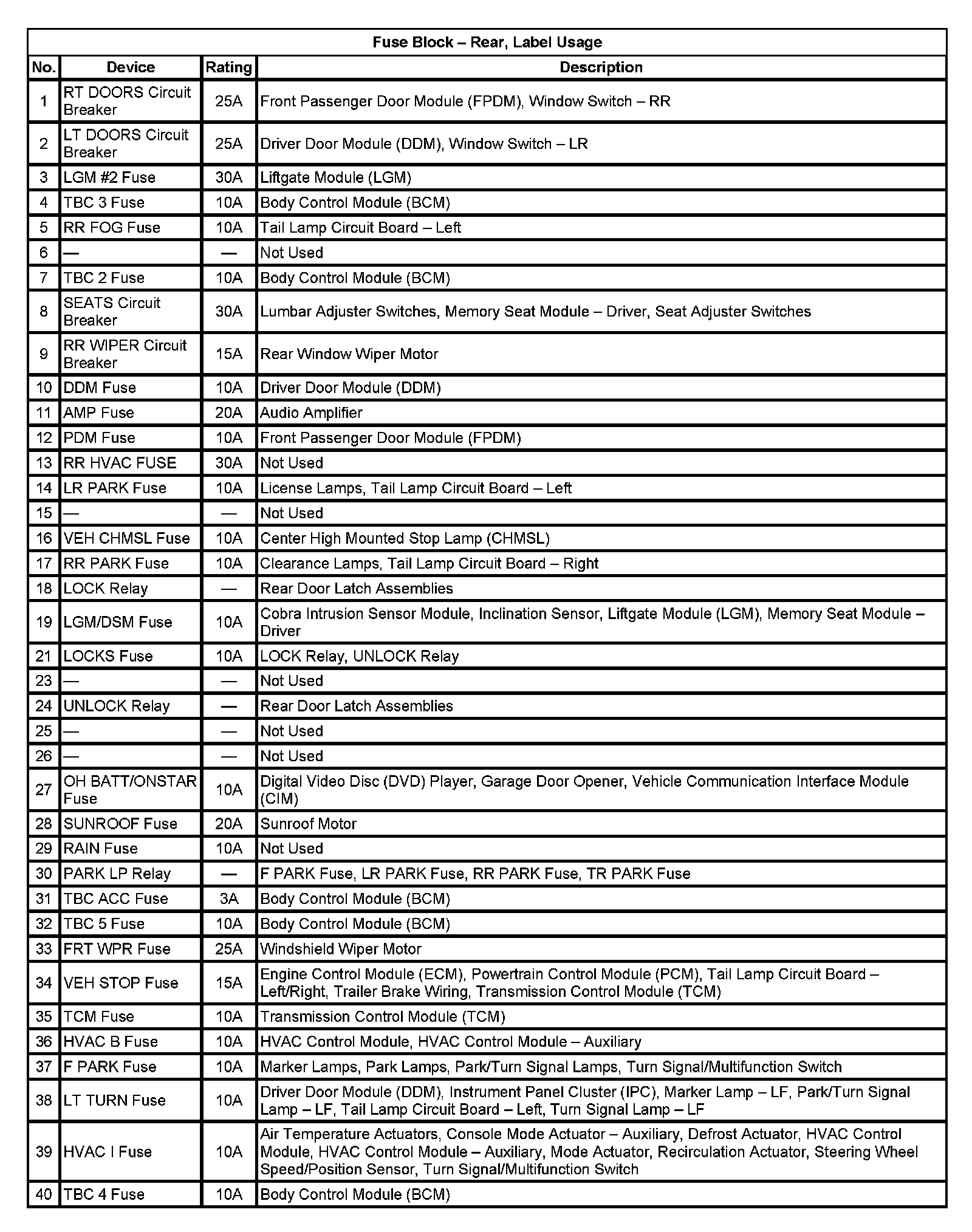

Fuse Block - Rear, Label Usage:
