Power Window Switch: Locations

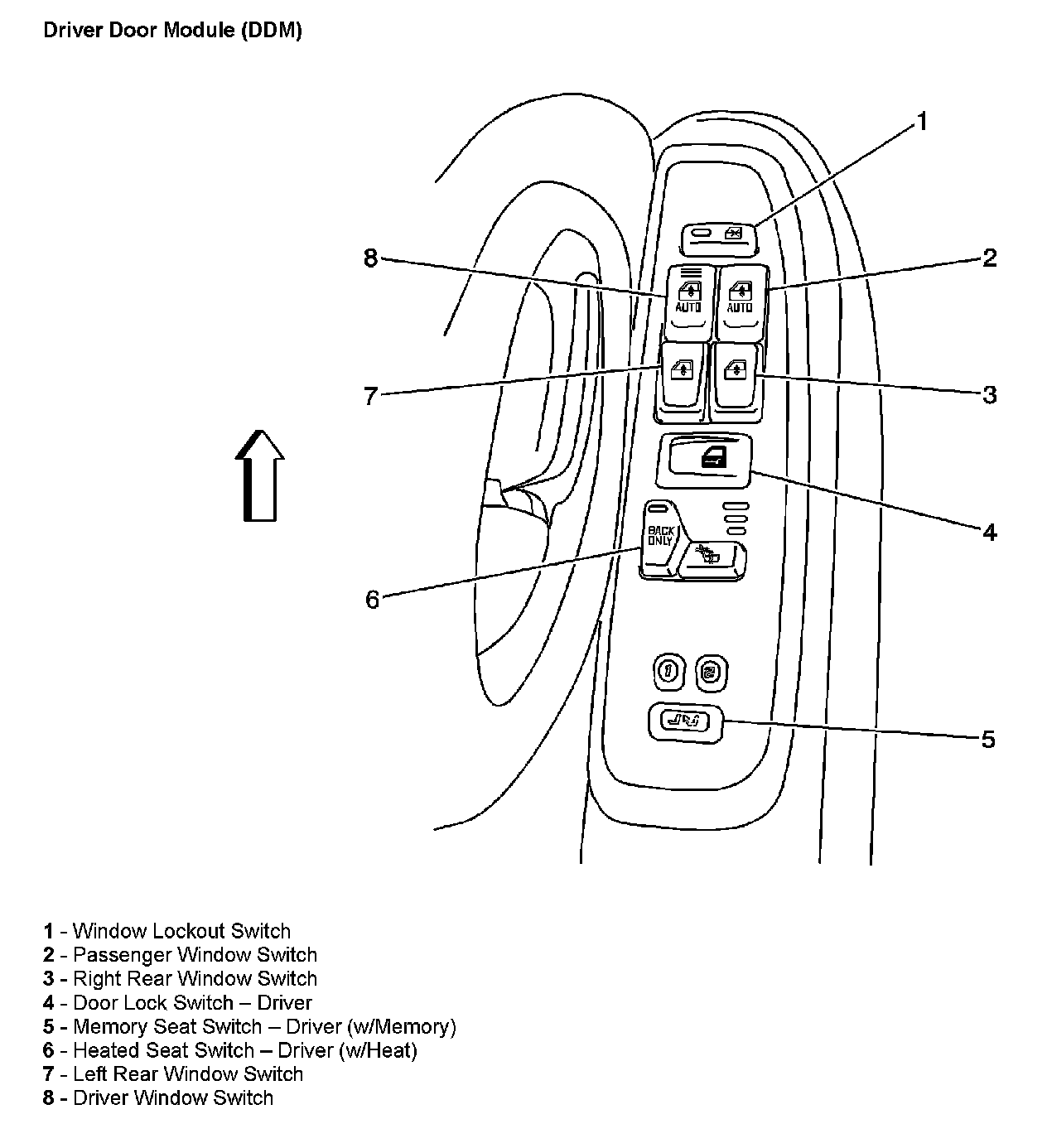

Driver Door Module (DDM):

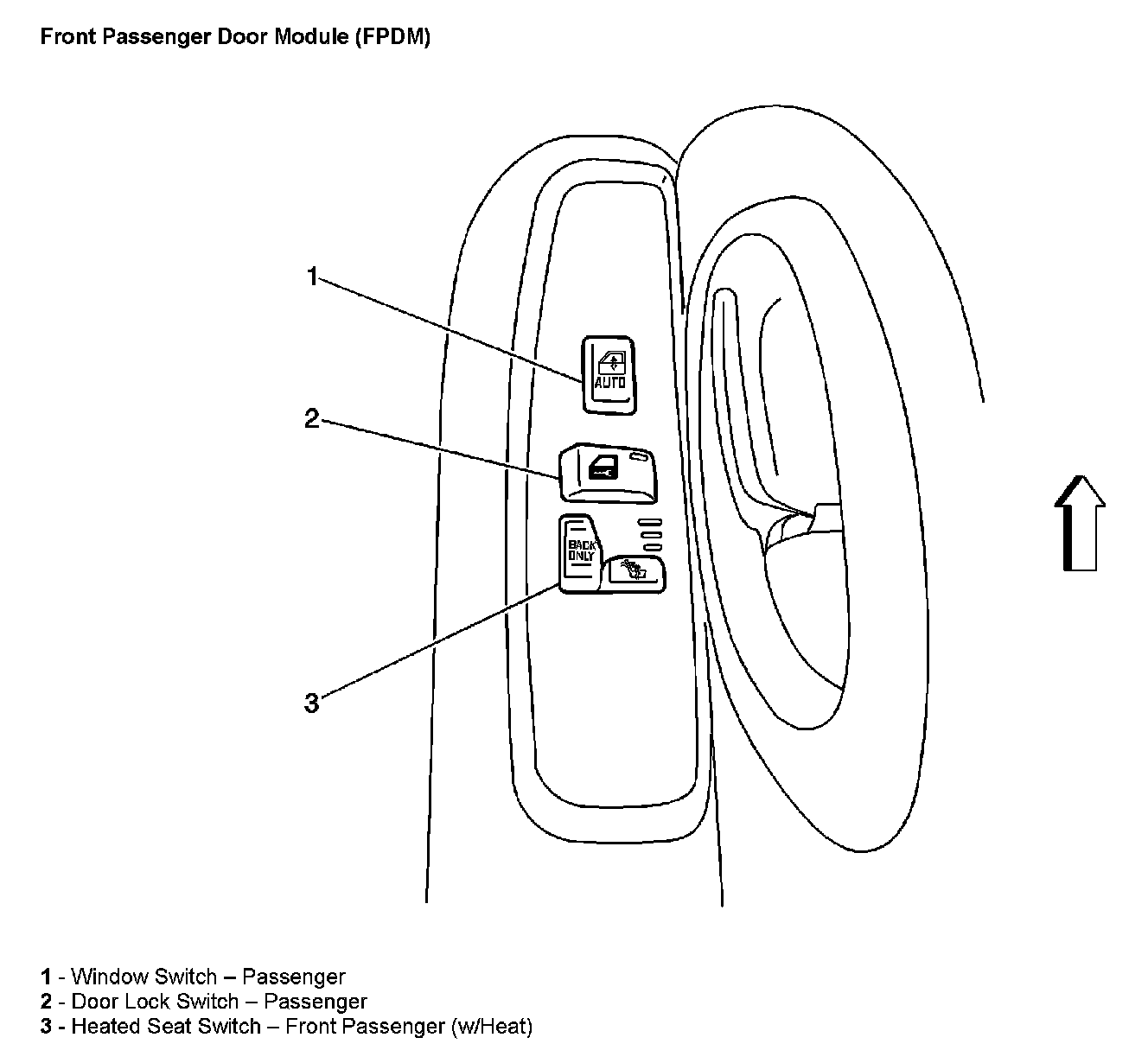

Front Passenger Door Module (FPDM):

Window Switch - LR:

Window Switch - RR:
