Engine Compartment Diagonal

WARNING: This page is about a different car, the 2008 Saab 9-7X. However, it is still accessible from the selected car via links, so may be relevant.

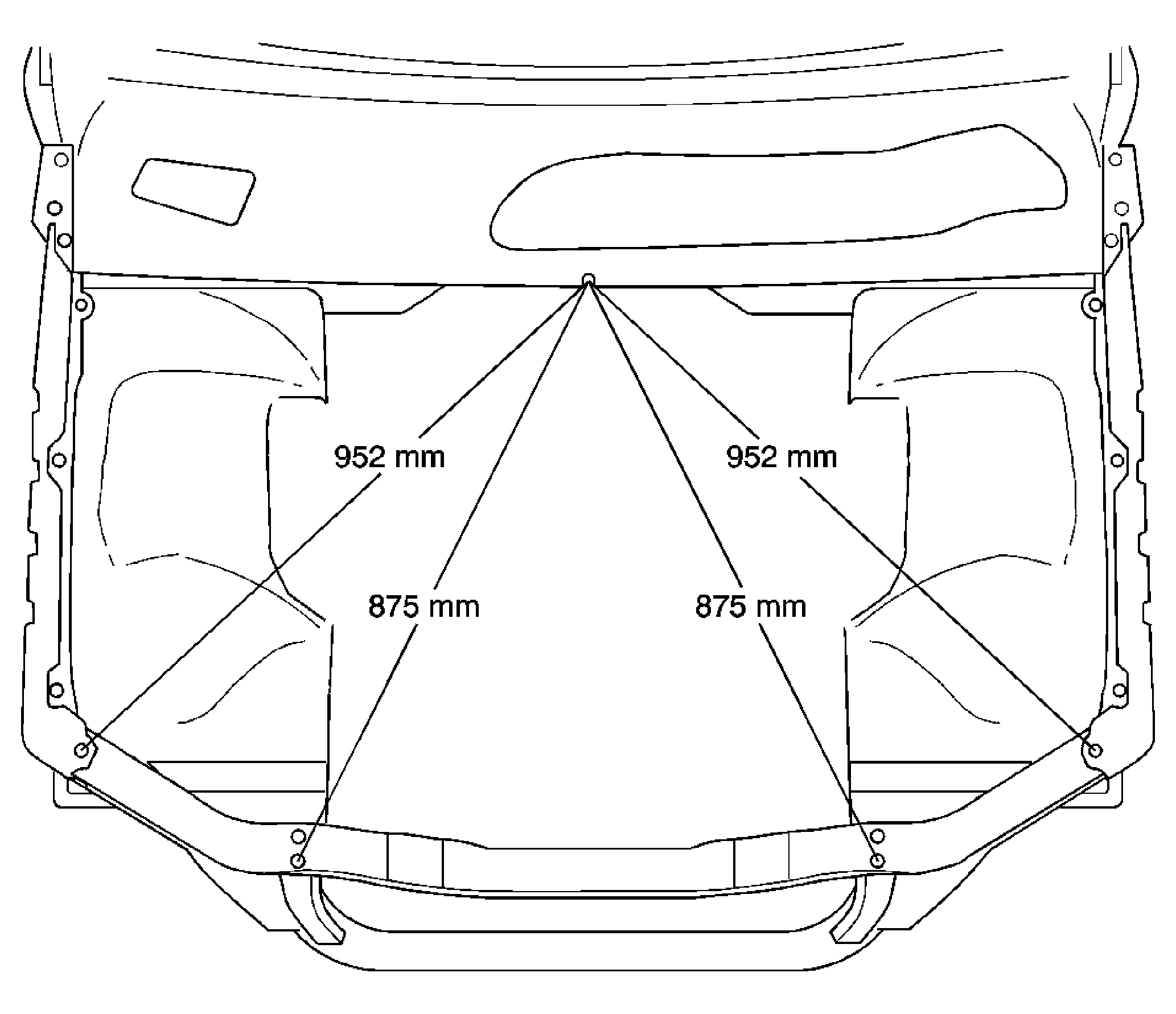

Fig 1: Engine Compartment Diagonal Dimensions
GM754785Courtesy of GENERAL MOTORS CORP.
