Electrical Diagrams



Automatic Transmission Controls Schematics (4.2L)

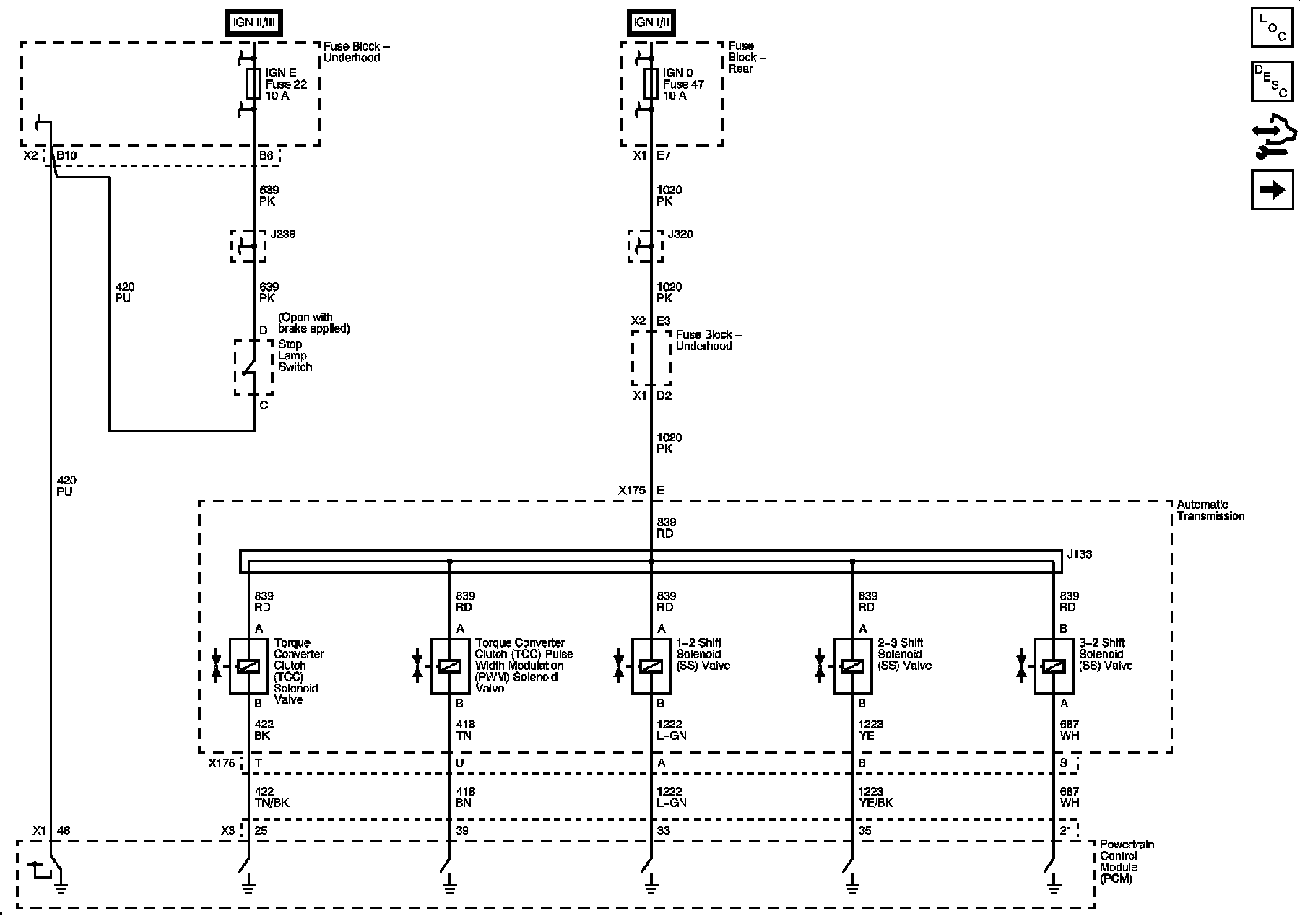

Shift Controls and Stop Lamp Switch

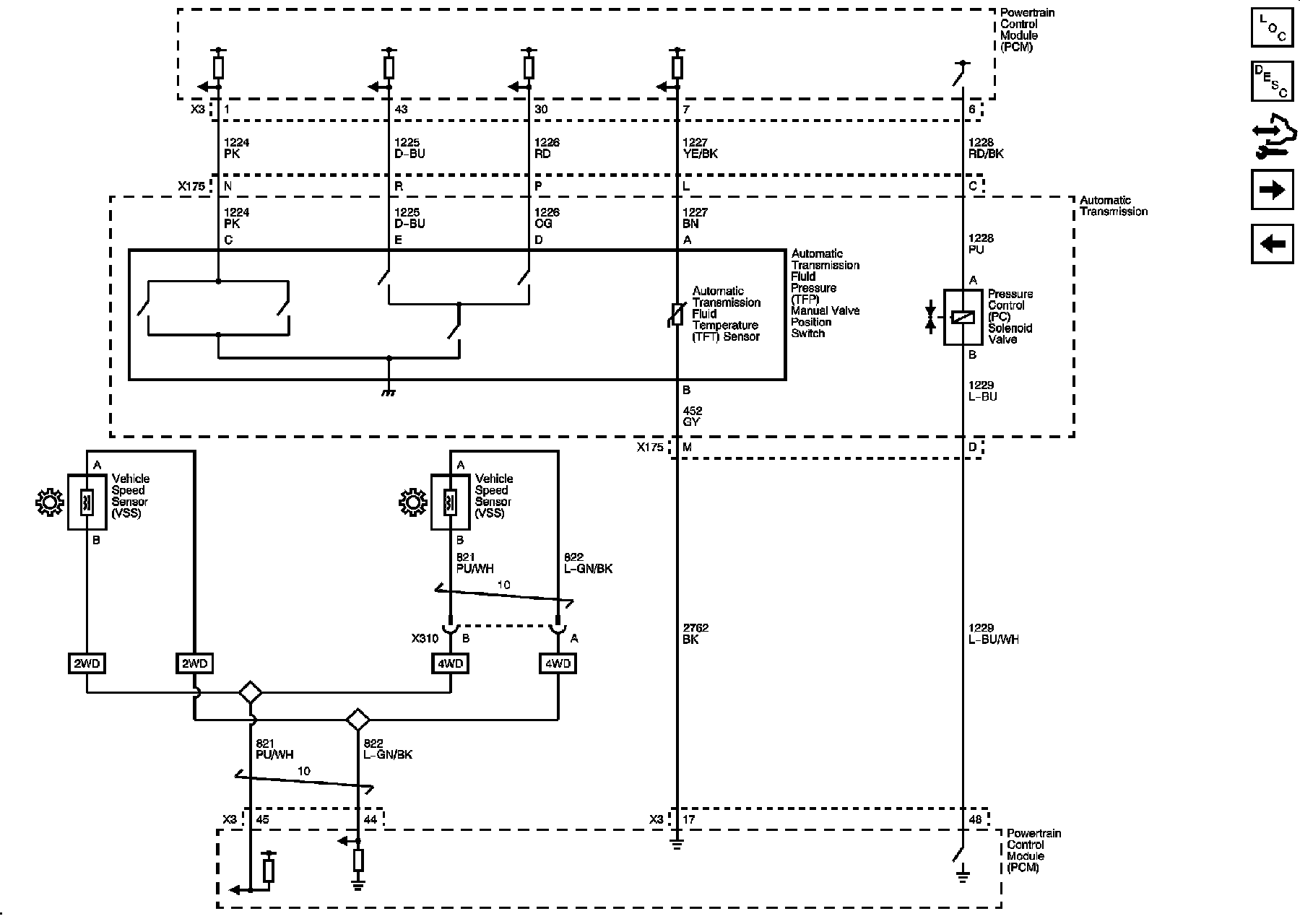

Pressure Controls, Temperature, and VSS





PNP Switch, 4WD Signal, Serial Data, and Indicator
