Timing Component Alignment Marks: Locations

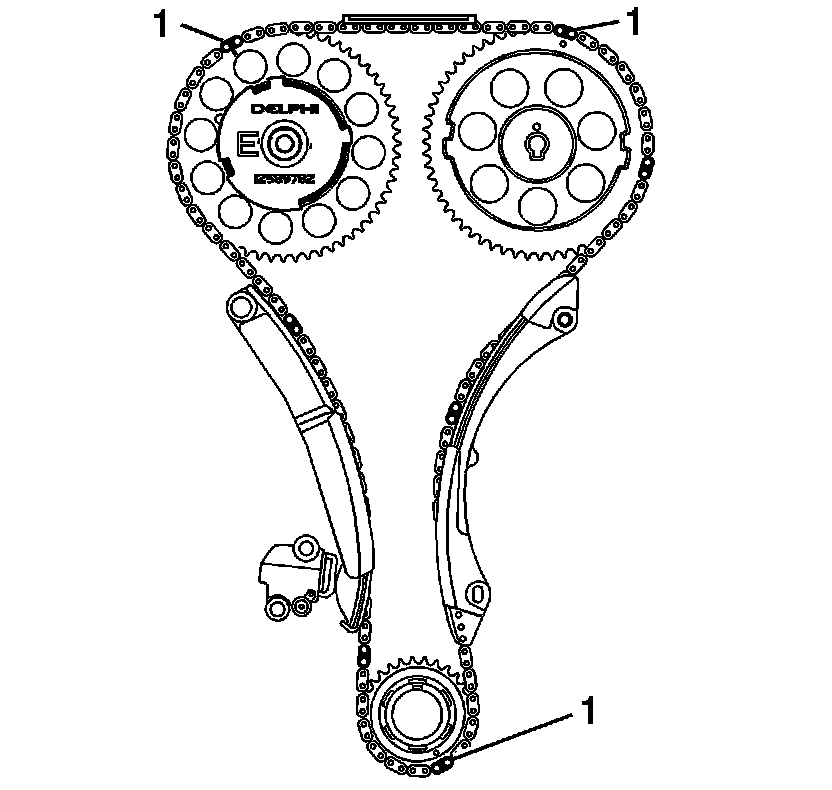

- The dark links (1) on the chain should be aligned with marks on sprockets as shown.
