Restraint Systems
Component Connector End Views
Inflatable Restraint Front End Sensor - Left
Inflatable Restraint Front End Sensor - Right
Inflatable Restraint I/P Module

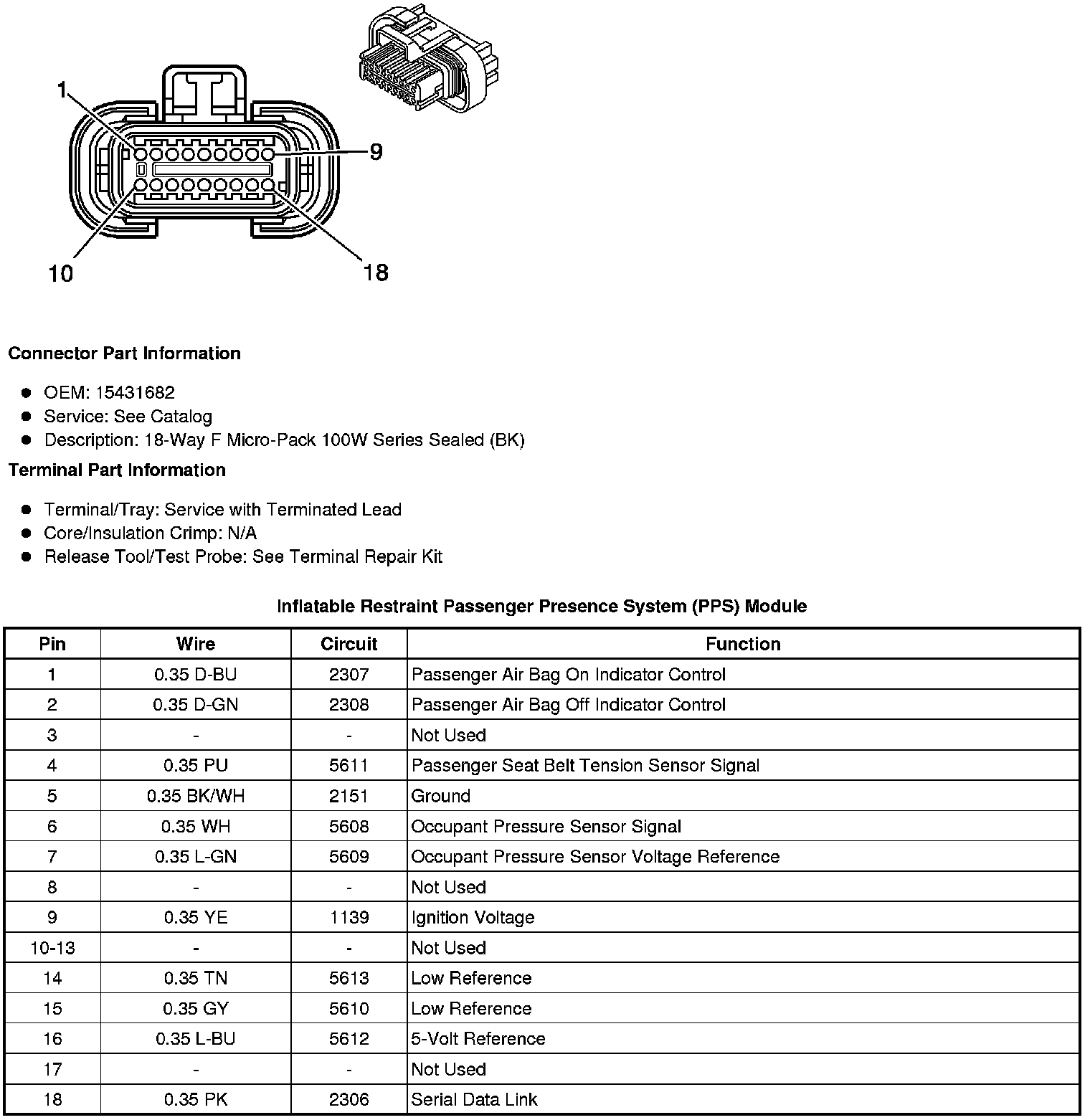

Inflatable Restraint Passenger Presence System (PPS) Module

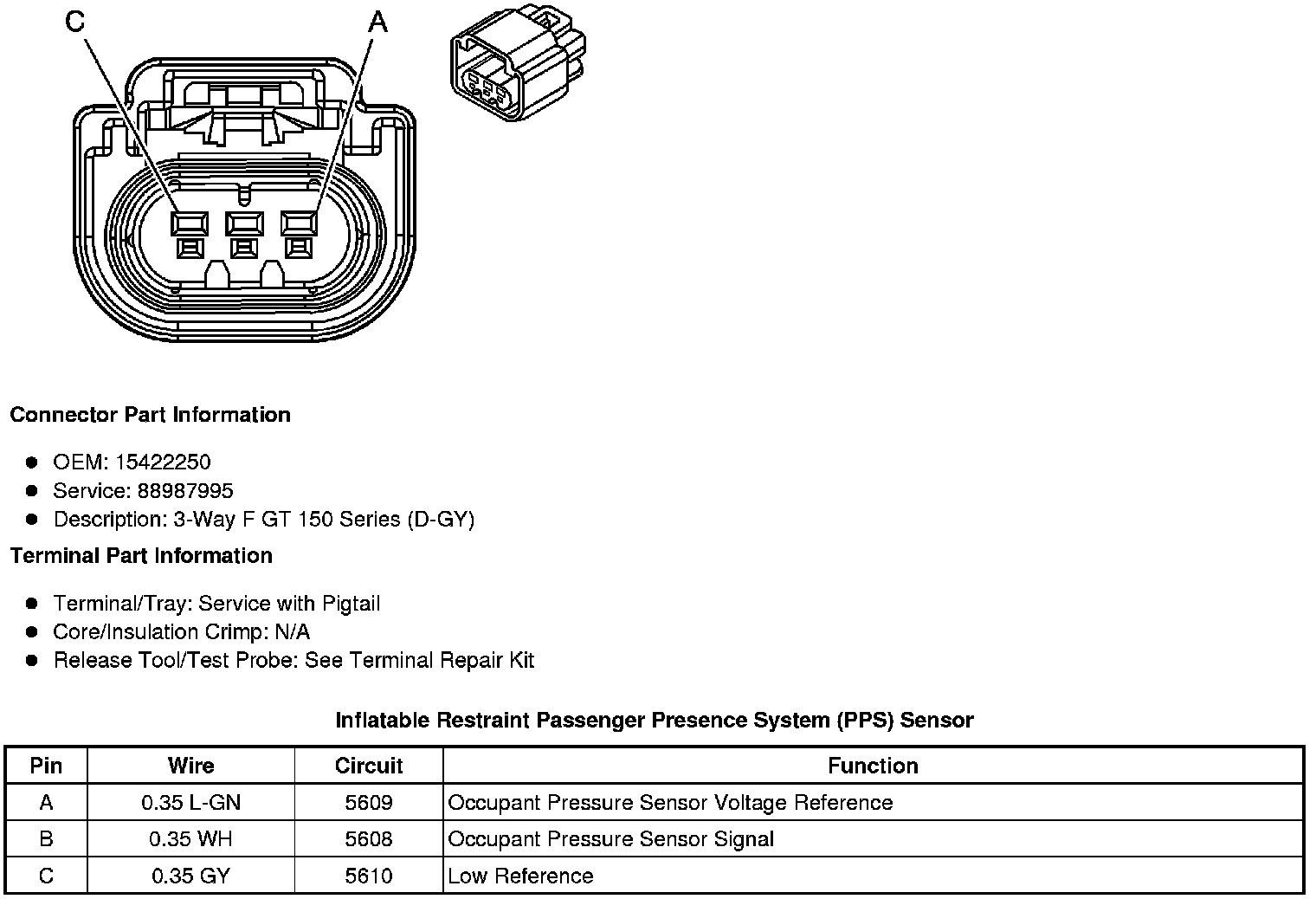

Inflatable Restraint Passenger Presence System (PPS) Sensor
Inflatable Restraint Roof Rail Module - Left (ASF)
Inflatable Restraint Roof Rail Module - Right (ASF)
Inflatable Restraint Seat Position Sensor - Left
Inflatable Restraint Seat Position Sensor - Right
Inflatable Restraint Sensing and Diagnostic Module (SDM)
Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
Inflatable Restraint Steering Wheel Module X1

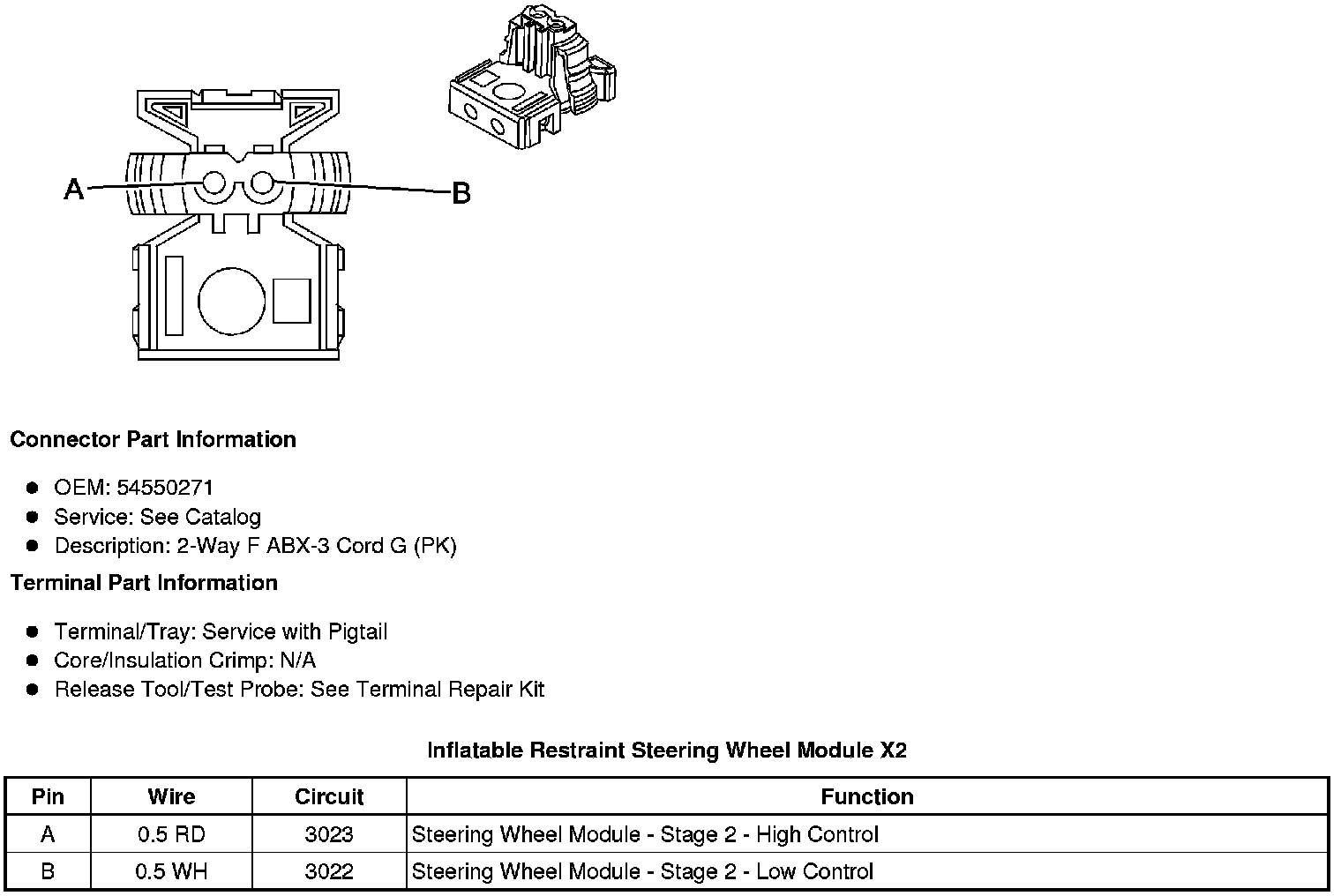

Inflatable Restraint Steering Wheel Module X2
Seat Belt Buckle - Driver
Seat Belt Buckle - Passenger X1
Seat Belt Buckle - Passenger X2

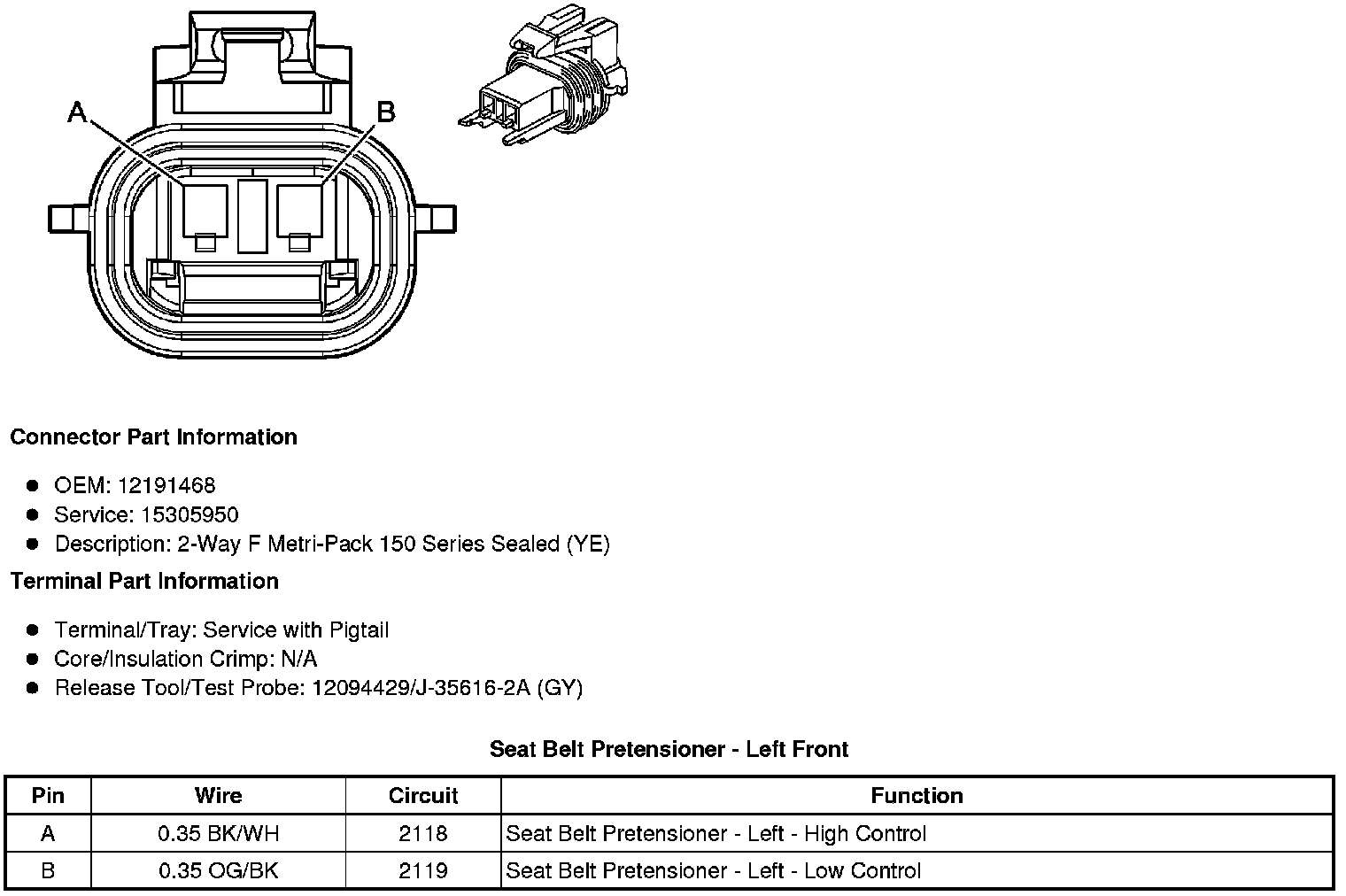

Seat Belt Pretensioner - Left Front

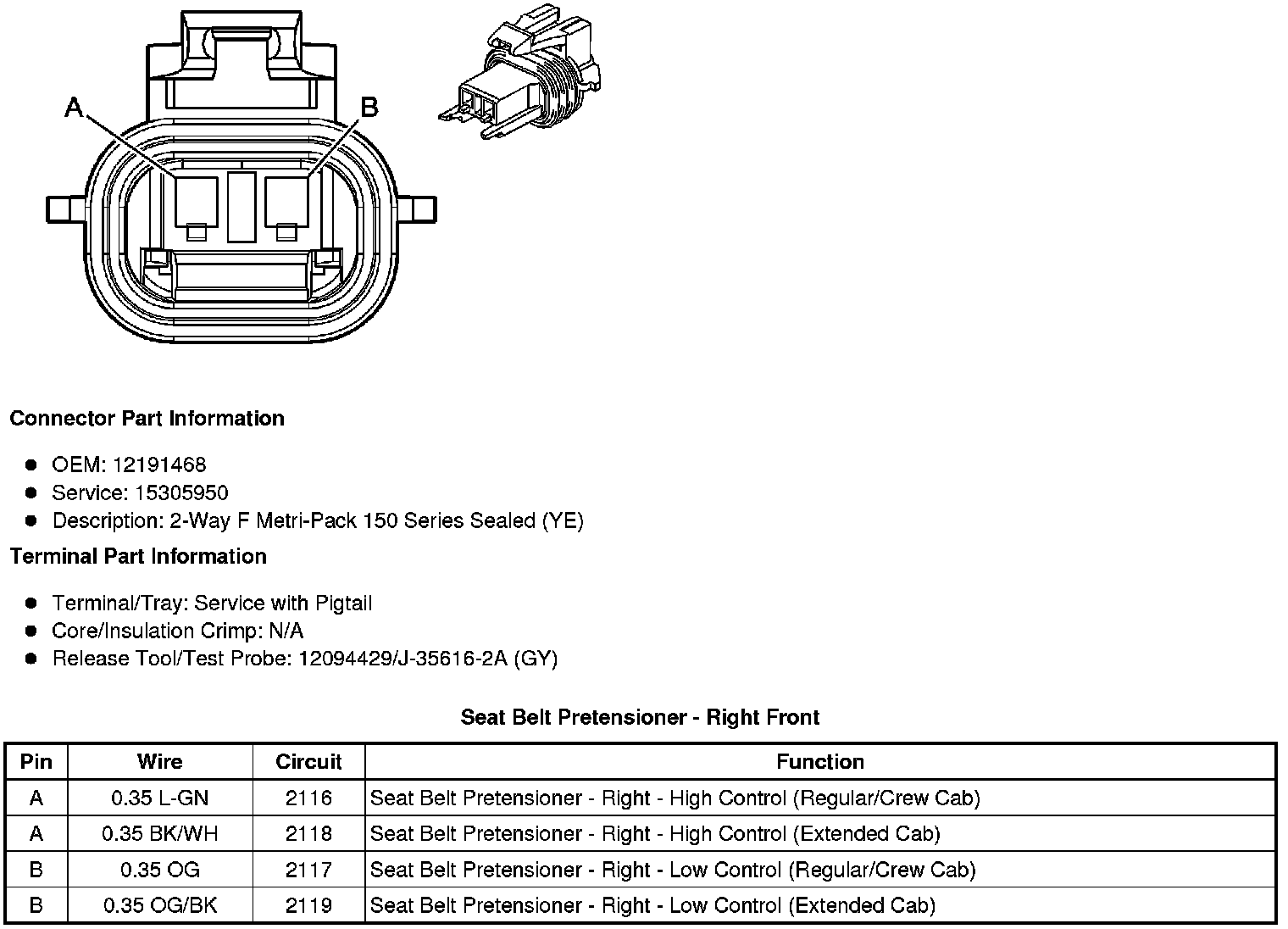

Seat Belt Pretensioner - Right Front
