Charging Systems: Alternators: Overhaul: Reassembly

Reassemble alternator by reversing disassembly procedure. During assembly, always make sure that polarity of diodes is correct.

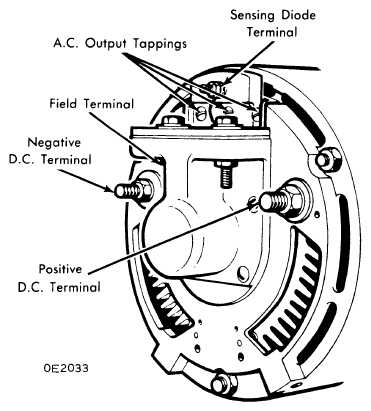

Fig 1: Alternator Terminals

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
