Vapor Separators

Vapor separators are located in rear window pillars. Raw fuel and vapors are separated and liquid fuel is allowed to drain back into fuel tank while vapors flow on to carbon canister.

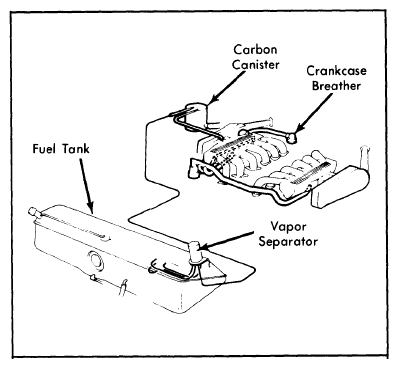

Fig 1: Fuel Evaporation System (XJS)
G09309954Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
