Tune-Up - V12: Distributor

All models are equipped with Lucas Constant Energy Ignition System. Under normal operating conditions, no adjustments are necessary. However, if the unit has been disassembled, check air gap between reluctor and pick-up module and adjust as needed.

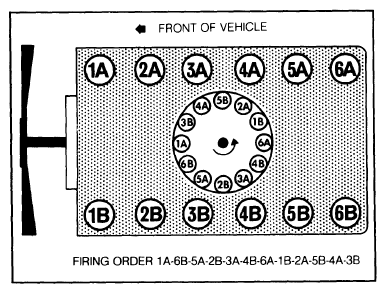

Fig 1: Firing Order and Distributor Rotation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
