Coolant Temperature Sensor

This sensor provides ECU with temperature information relating to warm-up enrichment operation. During warm-up period after a cold engine start, additional fuel is required to maintain engine performance. As coolant temperature increases, the ECU decreases fuel enrichment until engine reaches normal operating temperature.

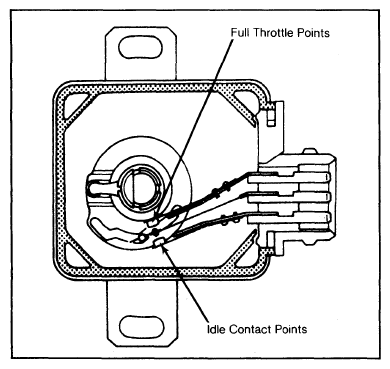

Fig 1: Contact Type Throttle Switch

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
