Anti-Lock Brake System: Wiring Diagram

NOTE: In Fig. Fig 1 on ABS Control Unit Pin 1 and Modulator Pin 10 the wire could be Yellow/Black or Grey (Light).

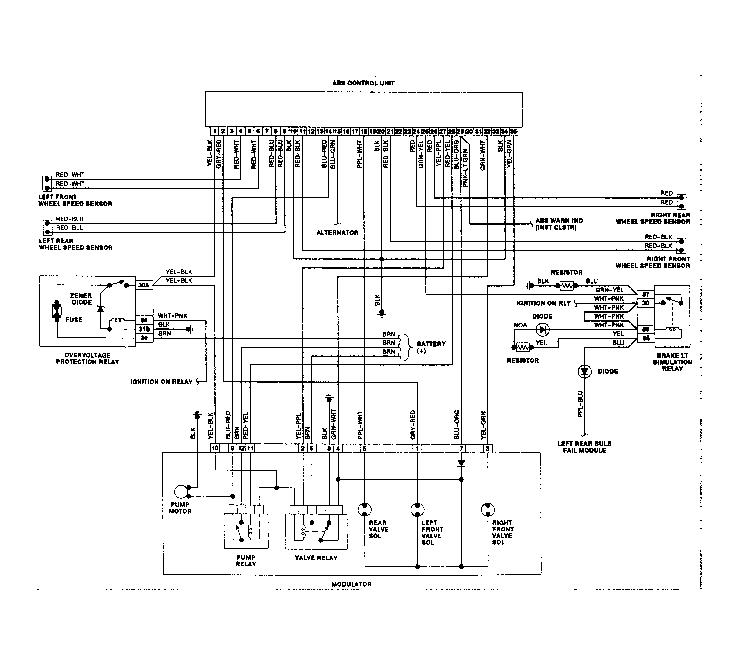

Fig 1: XJ6 Anti-Lock Brake System Circuit Diagram

Courtesy of JAGUAR CARS, INC.
