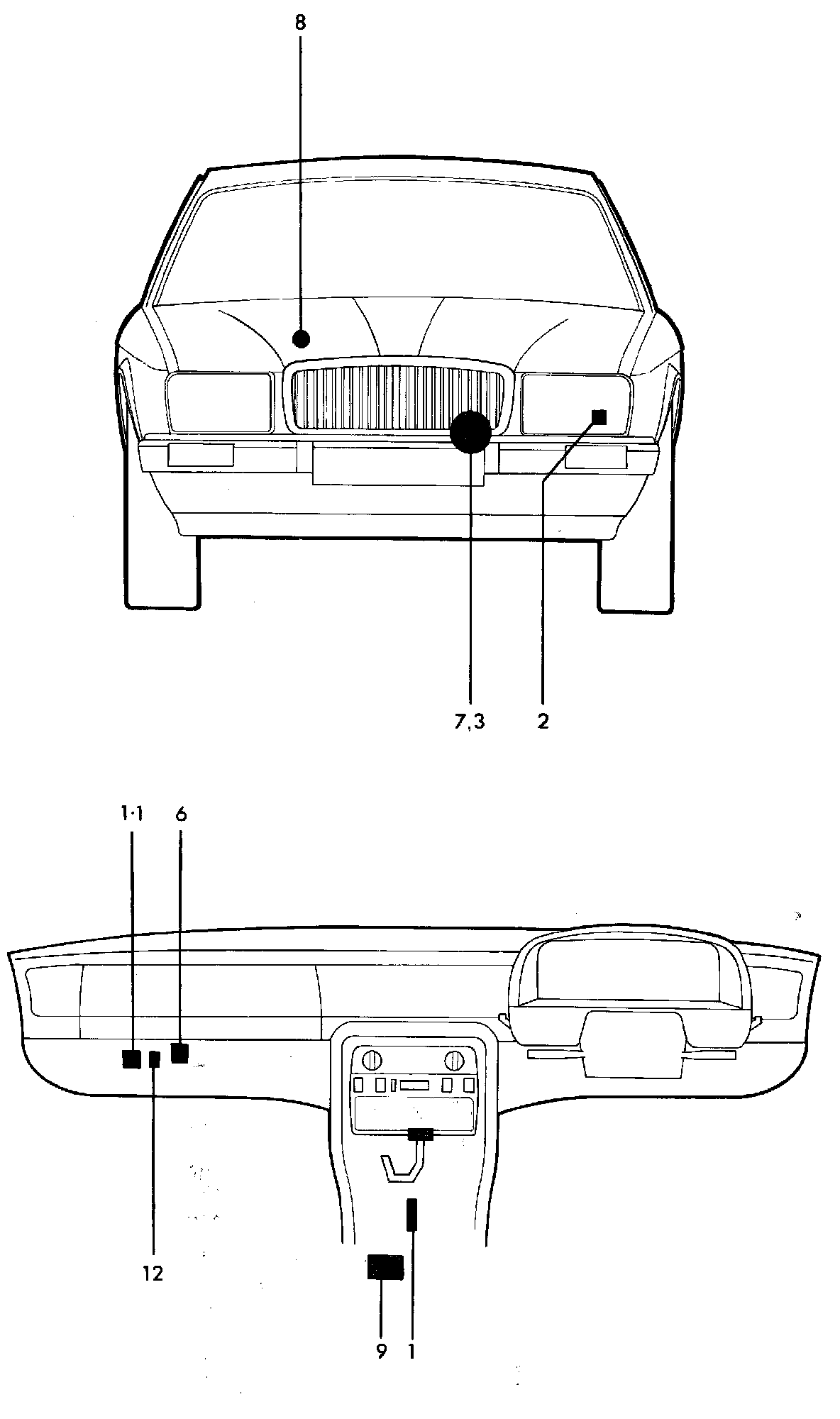

Starting System: Locations

Starter And Alternator:

LEGEND
1 Gearbox linear switch.
1.1 Start inhibit relay.
1.2 To ignition switch.
2 Load dump module.
3 Alternator.
6 Starter solenoid.
6.1 Solenoid pull in coil.
6.2 Solenoid hold on coil.
7 Starter motor.
8 Battery terminal post.
9 Fuse 1 centre fuse box.
12 Ignition on relay.
