Throttle Full Close Switch: Adjustments
THROTTLE IDLE SWITCHADJUST
Open the bonnet. Disconnect the throttle switch multi-plug connector.

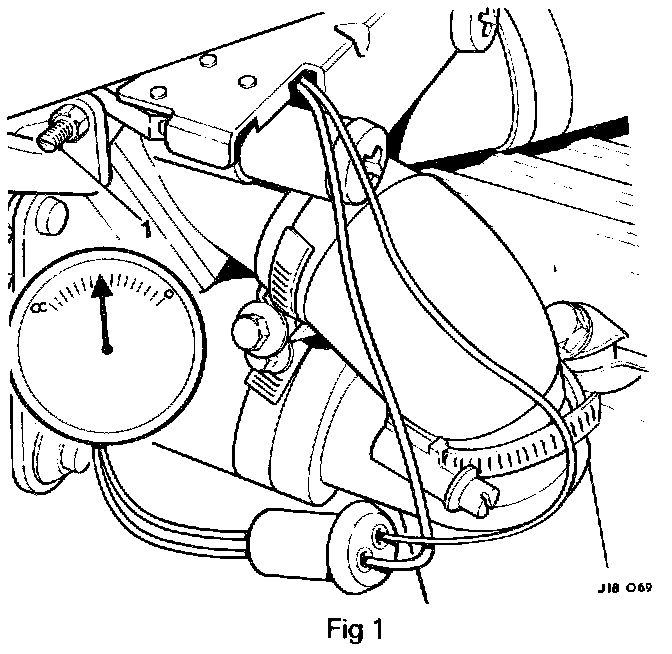

Connect an ohm-meter across the throttle switch multi-plug connector terminals. Slacken the locknut on the adjusting screw.
Turn the adjusting screw so that the ohm-meter indicates:
1 Zero reading with the throttle in the closed position.
2 Infinity just as the throttle opens. Tighten the lock nut. Reconnect the multi-plug.
