Ignition Power Stage: Service and Repair

AMPLIFIER UNIT

RENEW





Open the boot and disconnect the battery earth lead.

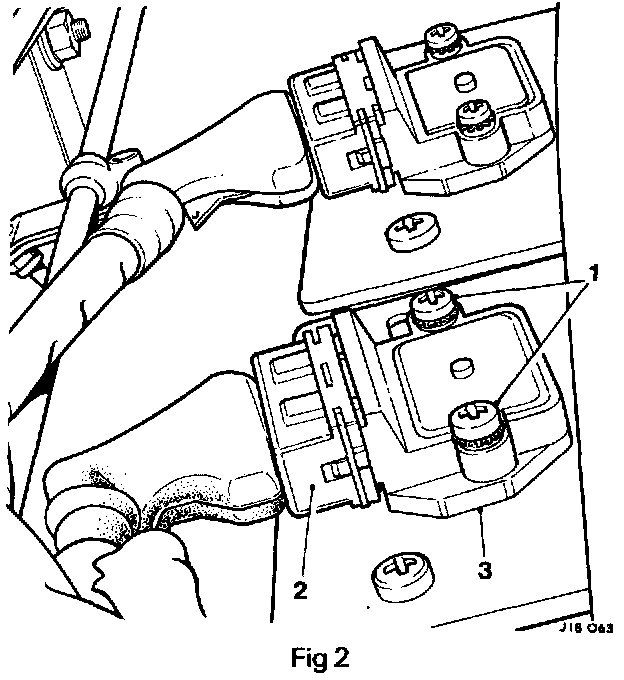

Open the bonnet. Remove the screws securing the amplifier unit (1).

Displace the amplifier from the base plate.

Invert amplifier and disconnect the multi-plug connector (2).

Remove the amplifier (3).

Connect the multi plug and fit the new amplifier. Fit and tighten the screws.

Reconnect the battery earth lead.
