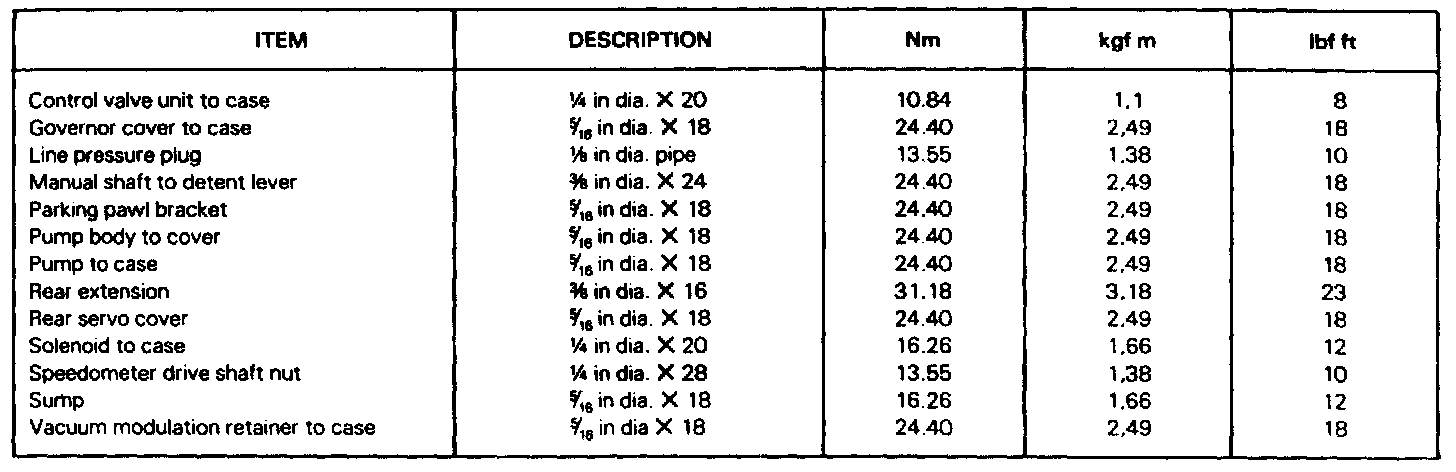

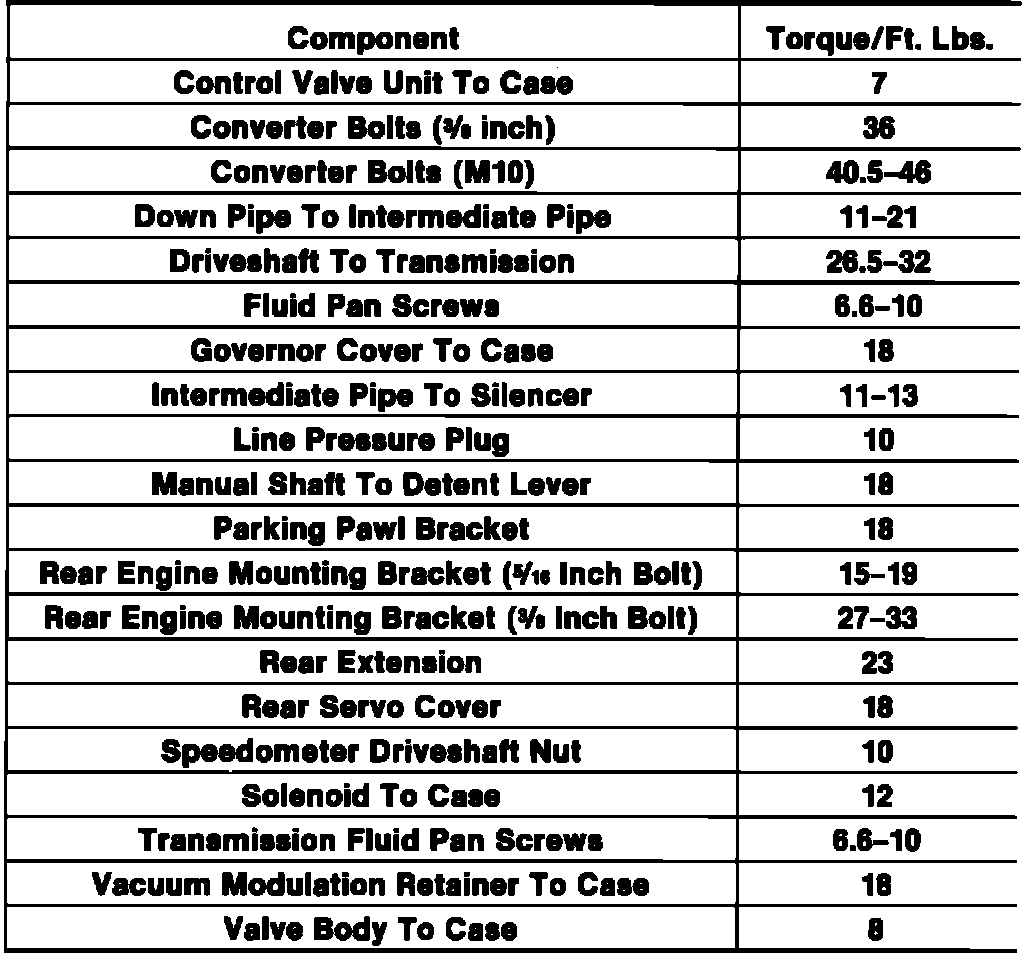

Torque Specifications
Hydra-Matic 400
Tightening Specifications:
Torque Specifications:
Standardized Bolt Torque Specifications:
