Fuse Block: Application and ID



Fuse Identification and Location

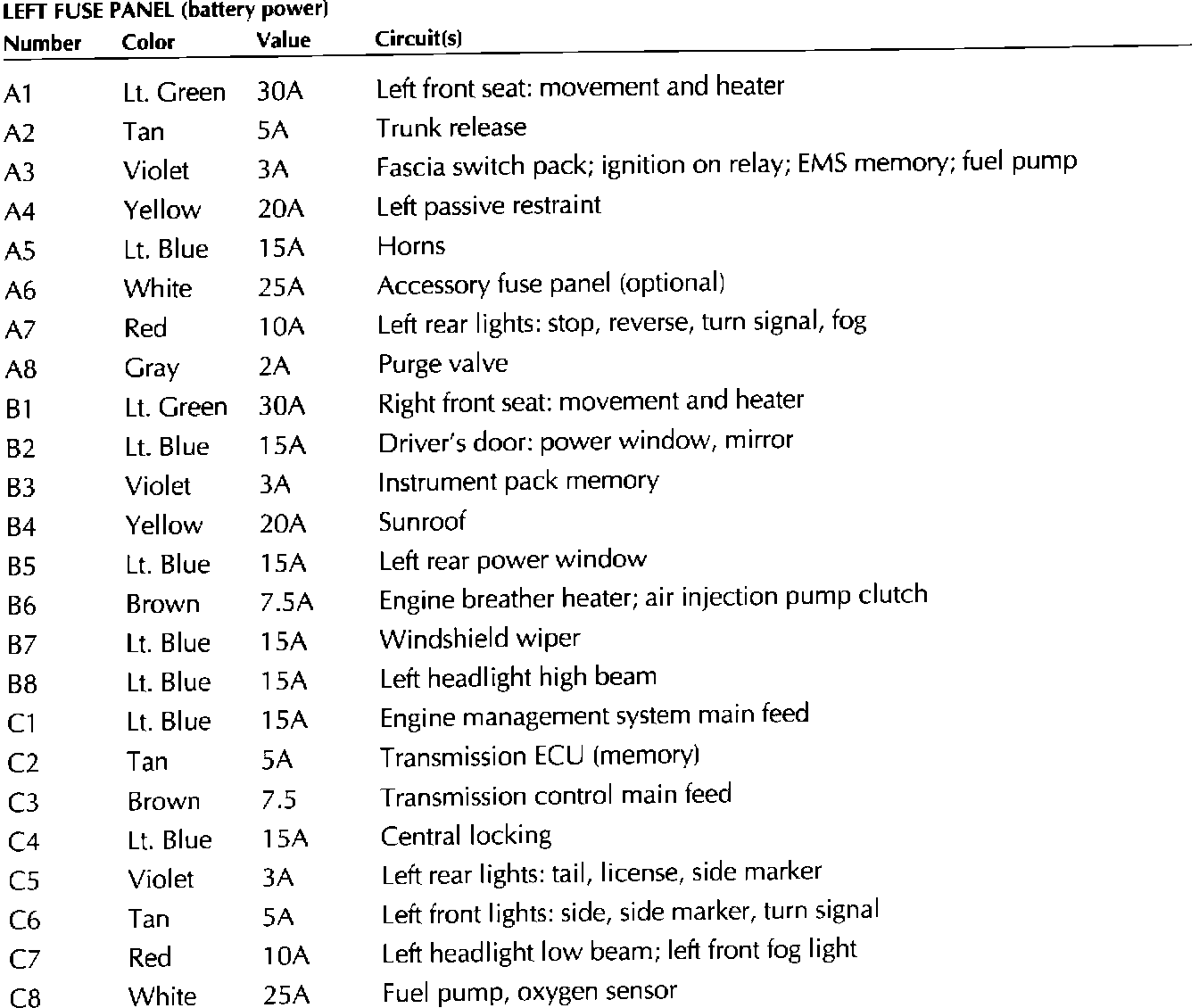

Left Fuse Panel:

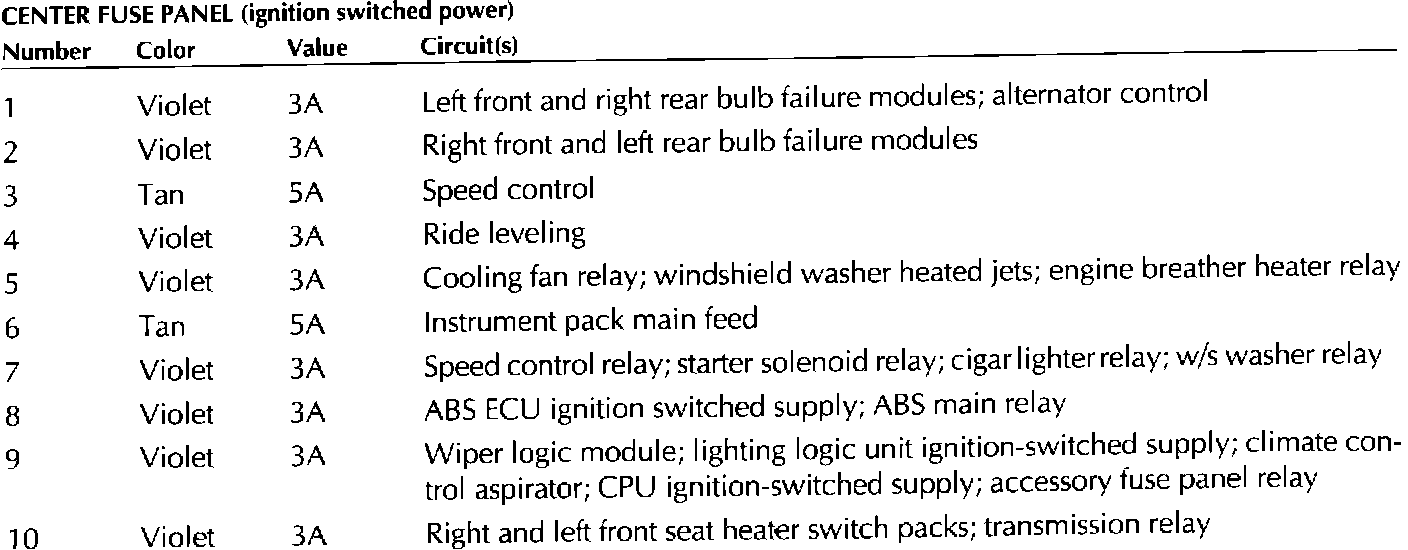

Center Fuse Panel:

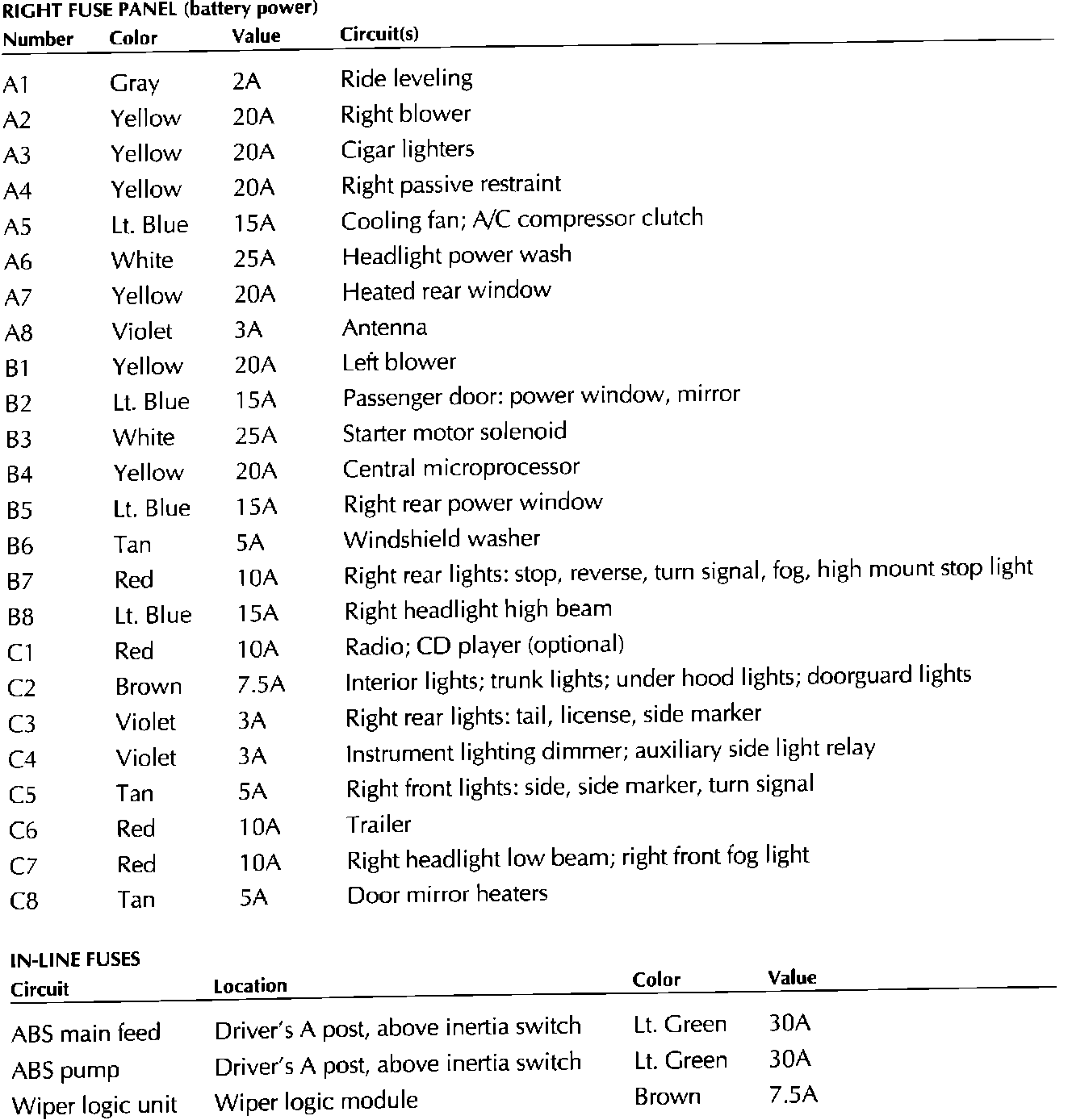

Right Fuse Panel / In-line Fuses:
