Throttle Full Close Switch: Adjustments

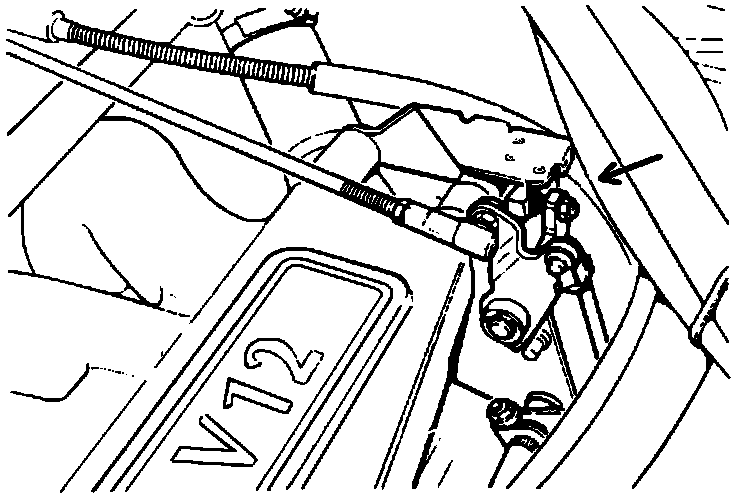

Throttle Linkage:

1. Loosen adjust screw lock nut.
2. Turn adjust screw until an audible "click" is heard just as throttle closes.
3. Tighten lock nut and check again to ensure correct adjustment.
