Repair and Diagnosis: Electrical: Starter: Overhaul

NOTE: Illustration for 6.0L starter is not available from manufacturer. For exploded view of 4.0L starter, see Fig 1 .

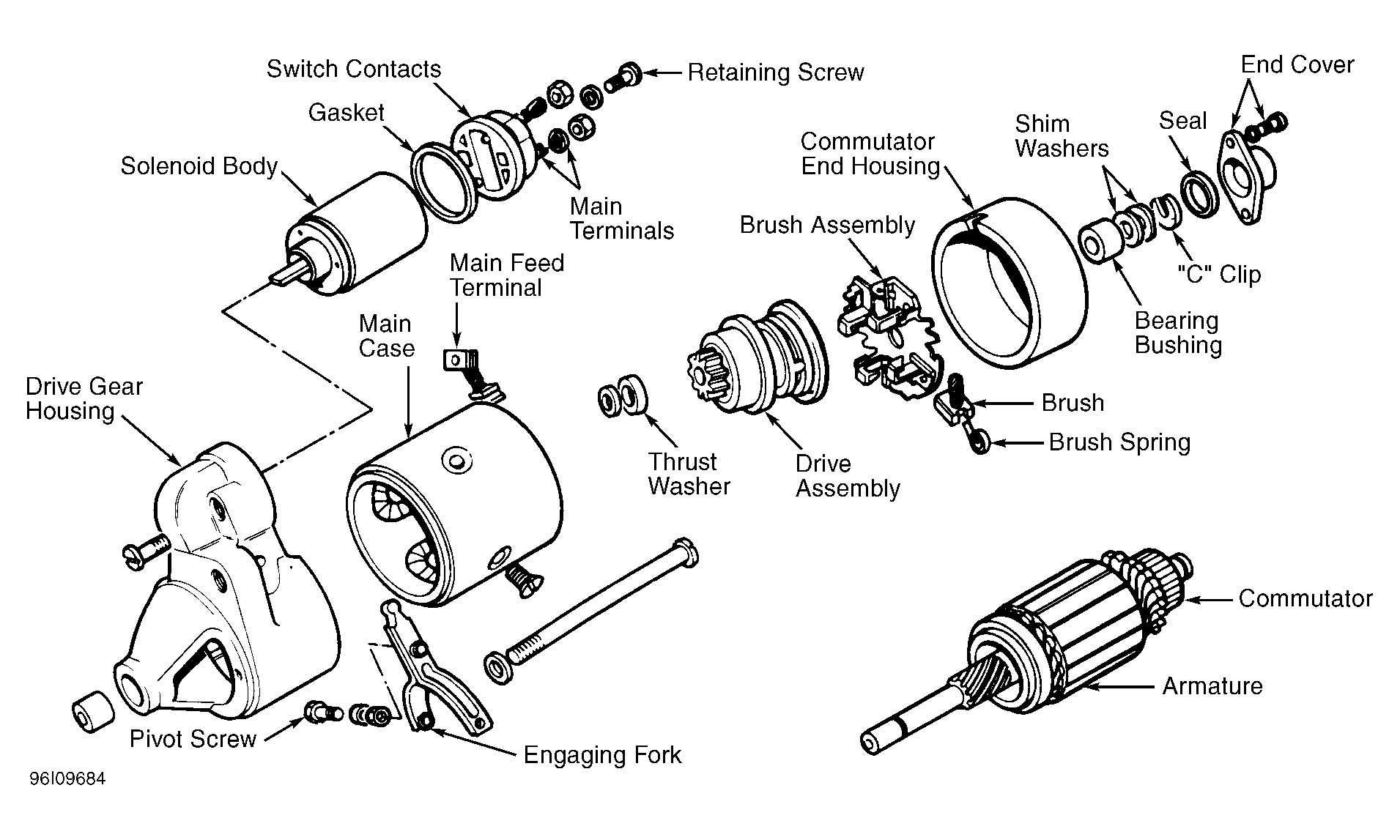

Fig 1: Exploded View Of Bosch Starter (4.0L)

Courtesy of JAGUAR CARS, INC.
