Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

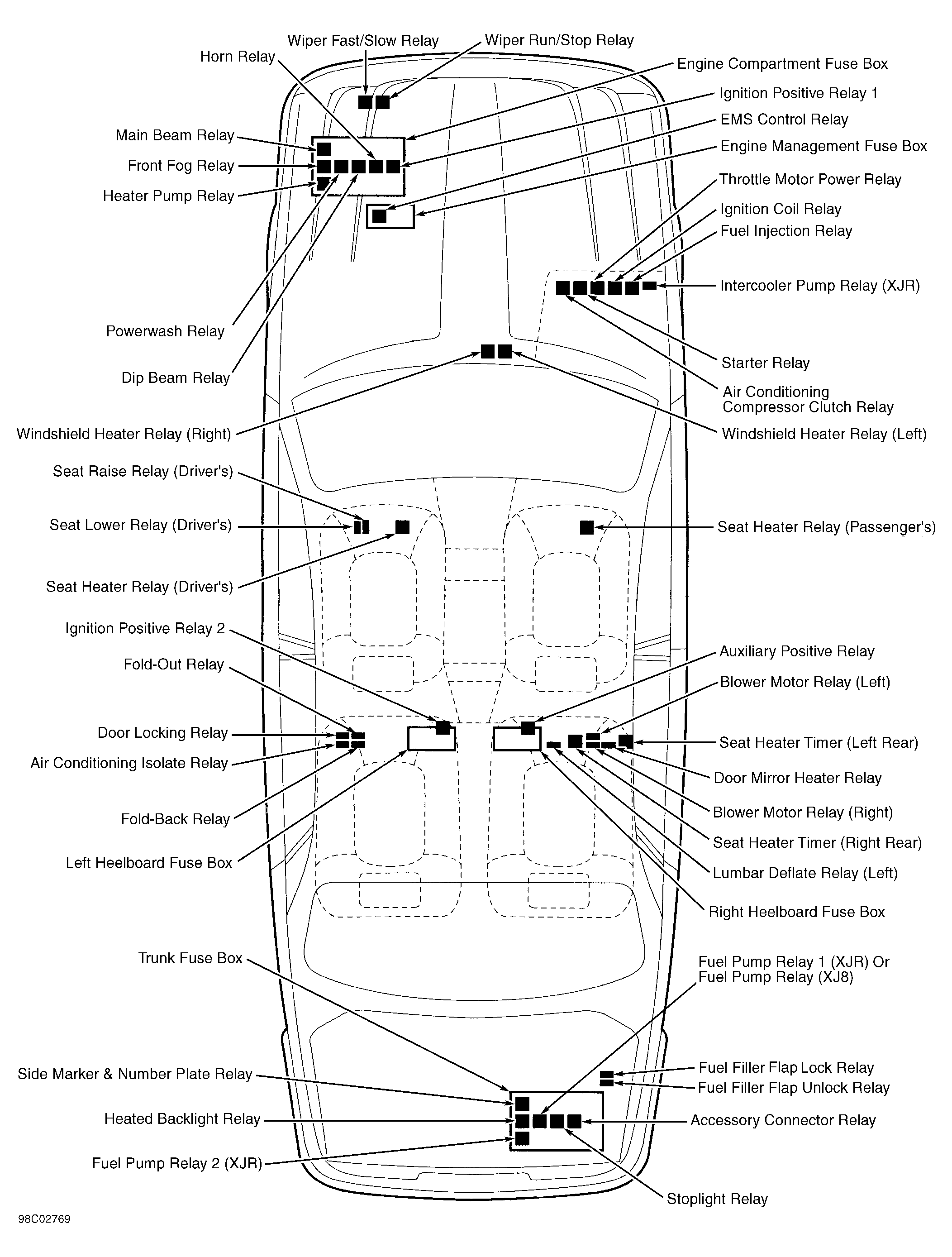

Engine Compartment Fuse Box In left front of engine compartment. See Figure .
Engine Management Fuse Box In left side of engine compartment. See Figure .
Left Heelboard Fuse Box On left side of heelboard. See Figure .
Right Heelboard Fuse Box On right side of heelboard. See Figure .
Trunk Fuse Box On right rear side of luggage compartment. See Figure .
