Exhaust System
>>
Description & Operation
>>
Oxygen Sensor (O2
>>
Circuit Diagram, O2 Sensors / ECM
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram, O2 Sensors / ECM

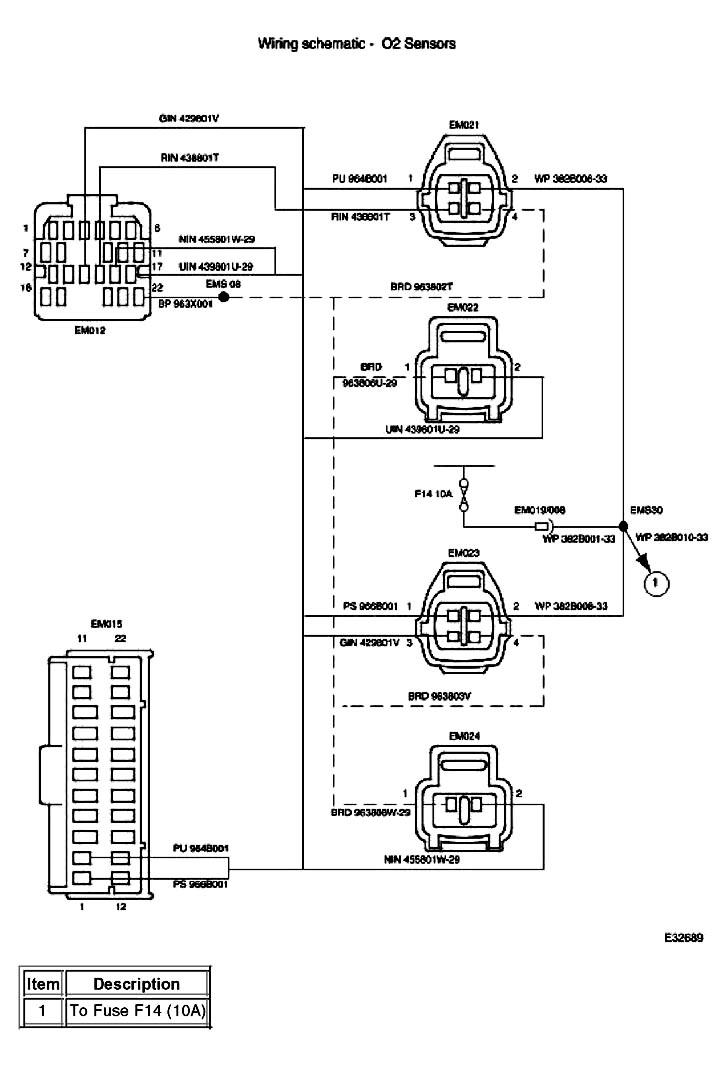

Fig 1: O2 Sensors/ECM - Circuit Diagram
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
