D9: O2 Sensor Screen Ground Continuity

  1. With EM012 and EM022 disconnected, measure the resistance between EM012/022 and EM022/001

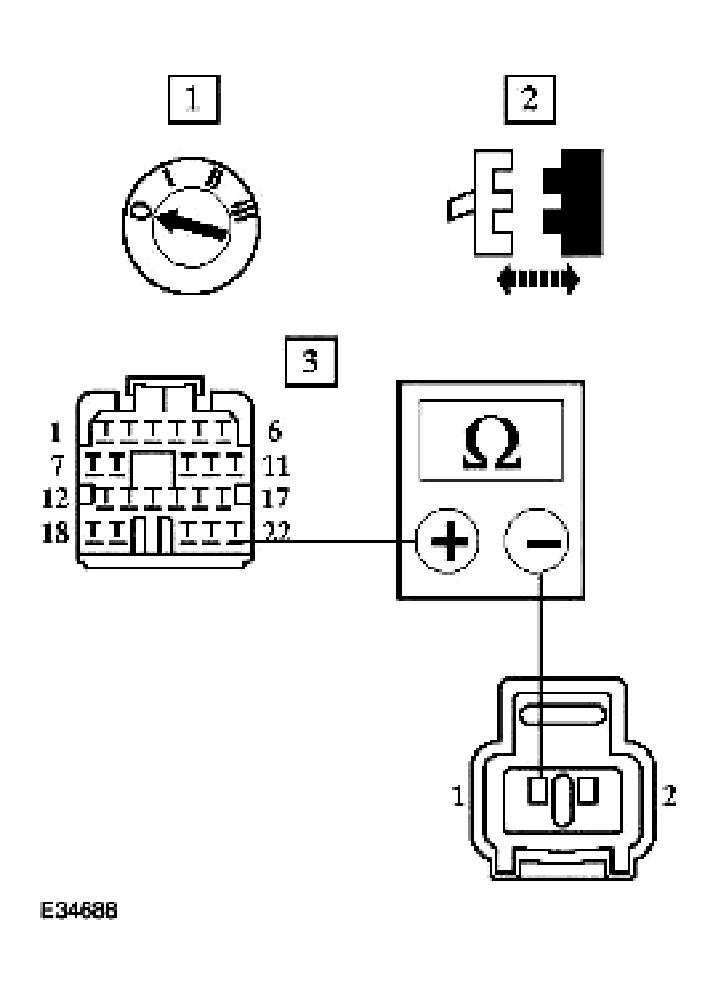

    Fig 1: Measuring Resistance Between EM012/022 And EM022/001
    G04355486Courtesy of JAGUAR CARS, INC.
    • Is the resistance < 0.5OHM?

    Yes  : GO to D10

    No  : Inspect connectors EM012, and EM022 for corrosion, damaged / pushed back pins or repair the harness; reconnect plug(s)

    GO to D11
