Engine Control Module (ECM) (18.30.01): Removal

  1. Disconnect battery ground cable (IMPORTANT, see for further information).
  2. Remove ECM housing cover.

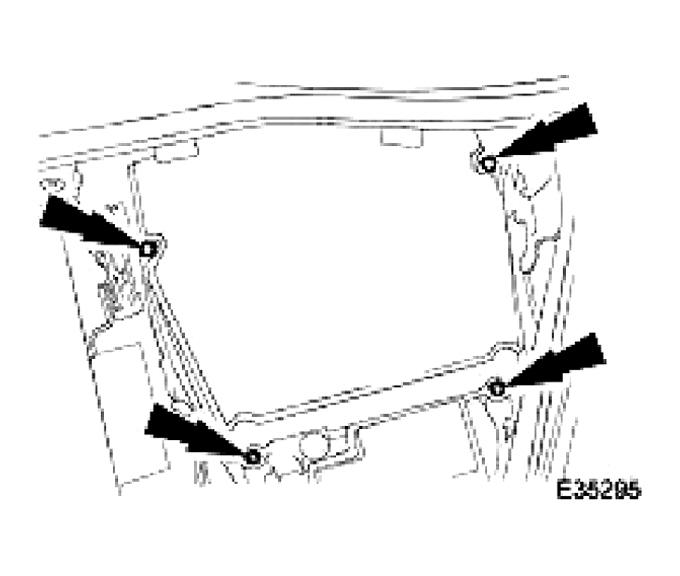

    Fig 1: Removing ECM Housing Cover
    G04355140
  3. RHD only: Remove security bracket securing screws.
    • Remove bracket.
  4. Disconnect electrical connectors.
  5. Lift ECM from housing.

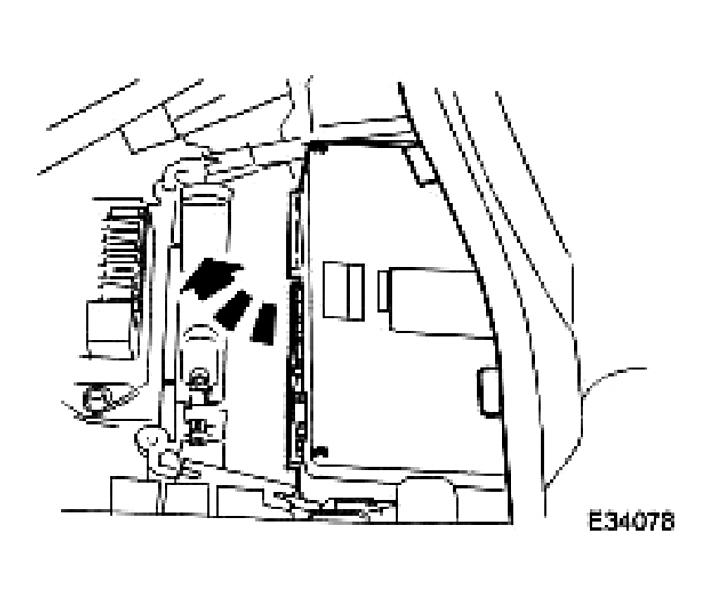

    Fig 2: Lifting ECM From Housing
    G04355141
  6. RHD only: Remove security bracket securing screws.
    • Remove brackets.
