Removal & Installation (XK8)

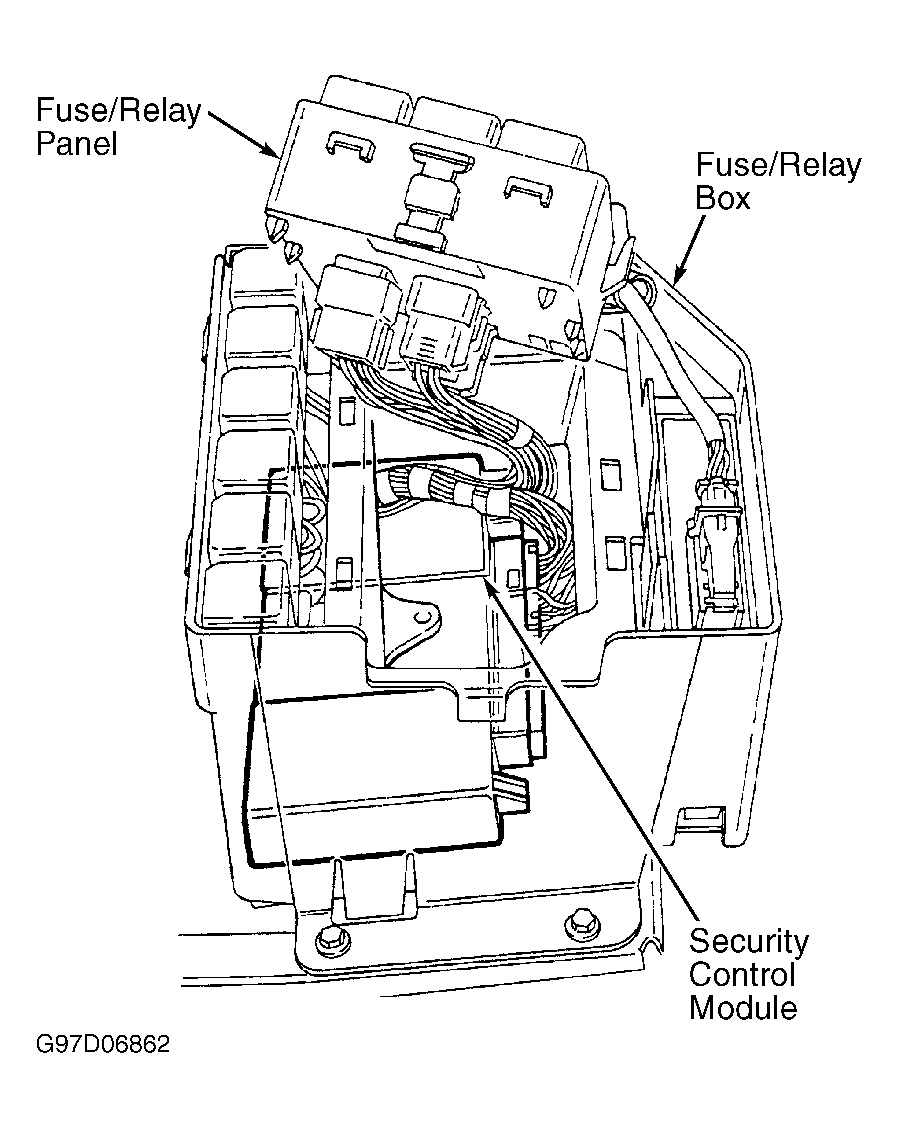

- Remove battery cover and disconnect negative battery cable. Release cover from fuse/relay box. See Fig 1 . Release latch and remove fuse/relay panel from mounting box.
- Lift fuse/relay panel, note position of wiring harness connectors, and disconnect wiring harness from security control module. Remove bolts and security control module from fuse/relay panel. To install, reverse removal procedure.
