Service Valve Locations

WARNING: This page does not describe the selected car, but rather 118 other vehicles, including the 1999 Volvo V70, 1999 Volvo S80, 1999 Volvo S70, 1999 Volvo C70, and 1999 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

SERVICE VALVE LOCATIONS

Vehicle

High

Low

Acura

Integra

⁽¹⁾

⁽²⁾

SLX

⁽³⁾

⁽⁴⁾

2.3CL

⁽³⁾

⁽⁴⁾

3.0CL

⁽¹⁾

⁽⁴⁾

3.2TL

⁽¹⁾

⁽⁴⁾

3.5RL

⁽⁶⁾

⁽⁴⁾

Audi

Except A8

⁽⁷⁾

⁽¹⁶⁾

⁽⁴⁾

BMW

⁽⁸⁾

⁽⁹⁾

Honda

Accord

⁽¹⁾

⁽⁴⁾

Civic

⁽¹⁰⁾

CR-V

⁽¹¹⁾

⁽²⁾

Odyssey

⁽¹⁰⁾

Passport

⁽¹²⁾

⁽¹³⁾

Prelude

⁽¹⁾

⁽²⁾

Hyundai

Accent

⁽³⁾

⁽⁵⁾

Elantra

⁽¹⁴⁾

⁽⁴⁾

Sonata

⁽¹⁴⁾

⁽⁴⁾

Tiburon

⁽¹⁴⁾

⁽⁴⁾

Infiniti

⁽¹⁴⁾

⁽⁴⁾

Isuzu

Amigo & Rodeo

⁽¹²⁾

⁽¹³⁾

Hombre

⁽³⁾

⁽⁴⁾

Oasis

⁽¹⁰⁾

Trooper

⁽³⁾

⁽⁴⁾

Vehi-Cross

⁽¹¹⁾

⁽¹³⁾

Jaguar

⁽⁶⁾

⁽⁴⁾

Kia

⁽³⁾

⁽⁴⁾

Land Rover

Discovery

⁽³⁾

⁽⁴⁾

Range Rover

⁽⁸⁾

⁽⁴⁾

Lexus

ES300, GS300, GS400, SC300 & SC400

⁽¹⁶⁾

⁽⁴⁾

LS400

⁽⁶⁾

⁽⁴⁾

LX470

⁽¹⁰⁾

⁽⁴⁾

RX300

⁽¹⁶⁾

⁽⁸⁾

Mazda

B2300, B3000 & B4000

⁽¹⁴⁾

⁽⁶⁾

Miata

⁽⁸⁾

⁽⁴⁾

Millenia

⁽¹⁴⁾

⁽⁴⁾

Protege

⁽³⁾

⁽⁴⁾

626

⁽¹⁵⁾

⁽⁴⁾

Mercedes-Benz

⁽¹⁶⁾

⁽⁶⁾

Mitsubishi

Diamante

⁽³⁾

⁽⁴⁾

Eclipse

⁽³⁾

⁽⁴⁾

Galant

⁽³⁾

⁽⁴⁾

Mirage

⁽³⁾

⁽⁴⁾

Montero

⁽⁶⁾

Montero Sport

⁽³⁾

⁽⁴⁾

3000GT

⁽¹⁾

⁽⁴⁾

Nissan

Altima

⁽³⁾

⁽⁴⁾

Frontier

⁽¹⁴⁾

⁽⁴⁾

Maxima

⁽¹⁴⁾

⁽⁴⁾

Pathfinder

⁽¹⁴⁾

⁽⁴⁾

Quest

⁽¹¹⁾

⁽¹⁷⁾

Sentra & 200SX

⁽³⁾

⁽⁴⁾

Porsche

911

⁽⁸⁾

⁽⁹⁾

Saab

⁽⁶⁾

⁽²⁾

Subaru

⁽¹⁸⁾

Suzuki

Esteem

⁽¹⁴⁾

⁽⁴⁾

Vitara & Grand Vitara

⁽⁶⁾

⁽²⁾

Swift

⁽³⁾

⁽⁴⁾

Toyota

Avalon

⁽¹⁾

⁽⁴⁾

Camry, Camry Solara & Celica

⁽¹⁶⁾

⁽⁴⁾

Corolla

⁽¹⁴⁾

⁽⁴⁾

Land Cruiser

⁽¹⁰⁾

⁽⁴⁾

RAV4

⁽¹⁰⁾

⁽¹³⁾

Sienna

⁽⁶⁾

⁽²⁾

Tacoma

⁽⁷⁾

4Runner

⁽¹⁶⁾

⁽⁷⁾

Volkswagen

Except Beetle

⁽⁷⁾

Beetle

⁽²⁰⁾

Volvo

C70, S70 & V70

⁽¹⁹⁾

S80

⁽²⁰⁾

⁽¹⁾	On high pressure line, near receiver-drier.

⁽²⁾	On low pressure line, near top of condenser.

⁽³⁾	On high pressure line, between accumulator/receiver-drier and evaporator.

⁽⁴⁾	On low pressure line, between evaporator and compressor.

⁽⁵⁾	On low pressure line, near compressor.

⁽⁶⁾	On top of accumulator/receiver-drier.

⁽⁷⁾	On thin evaporator inlet (high pressure) line or thick outlet (low pressure) line.

⁽⁸⁾	On high pressure hose/line.

⁽⁹⁾	On low pressure hose/line.

⁽¹⁰⁾	On top of condenser, on right side.

⁽¹¹⁾	On high pressure (thin) line, at rear of engine compartment. On Honda Passport or Isuzu Rodeo, See Fig 2.

⁽¹²⁾	On high pressure outlet at compressor. On Honda CR-V, See Fig 1.

⁽¹³⁾	On low pressure (thick) line, at rear of engine compartment.

⁽¹⁴⁾	On high pressure line, between compressor and condenser.

⁽¹⁵⁾	On high pressure hose/line between condenser and evaporator.

⁽¹⁶⁾	In front of condenser.

⁽¹⁷⁾	On low pressure line, between accumulator and compressor.

⁽¹⁸⁾	On high and low pressure lines, near compressor.

⁽¹⁹⁾	On low pressure line, near receiver-drier. Volvo uses only one service valve.

⁽²⁰⁾	Information is not available from manufacturer.

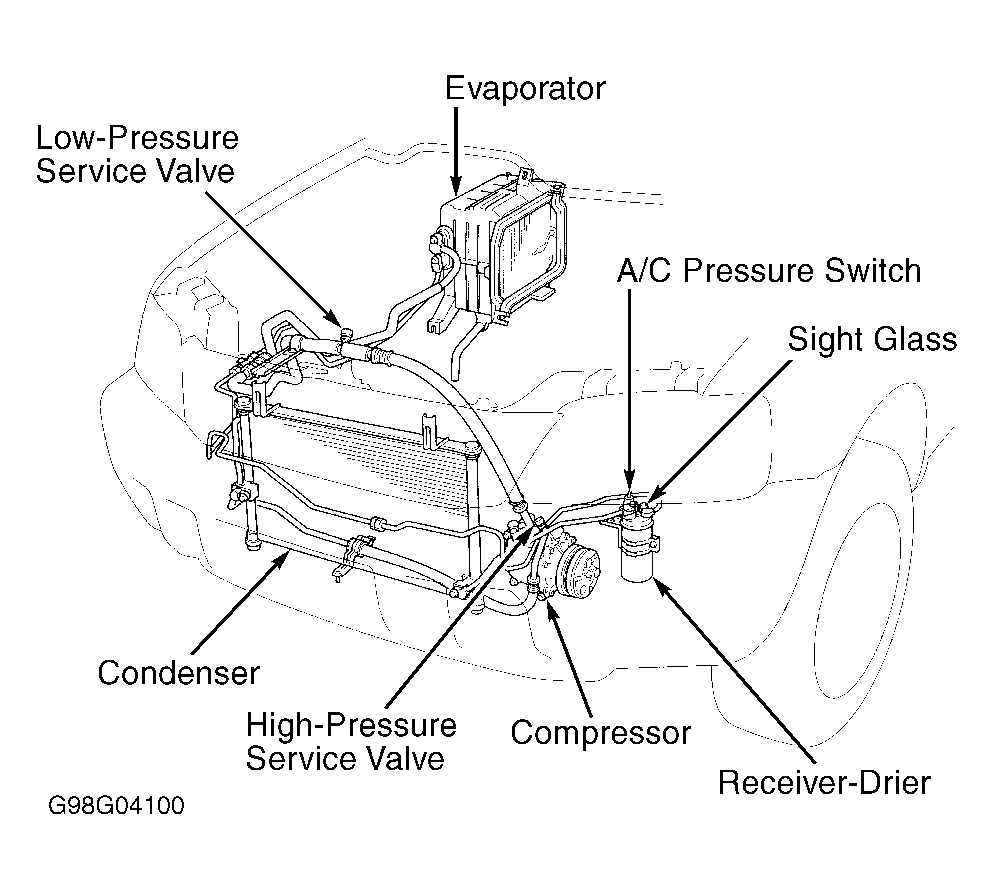

Fig 1: Locating A/C System Components (CR-V)

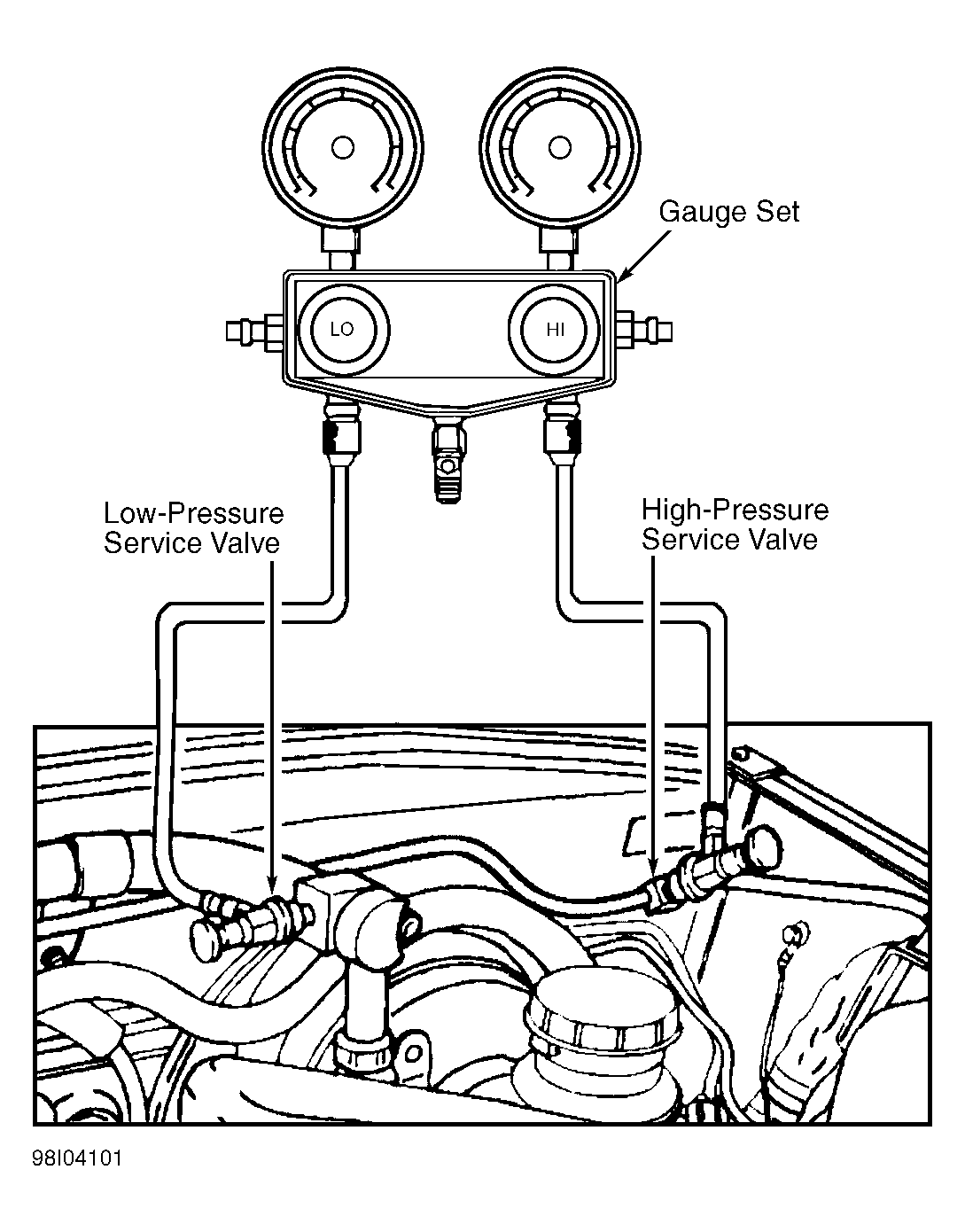

Fig 2: Locating Service Valves (Passport & Rodeo)
