Air Discharge Temperature Sensor - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

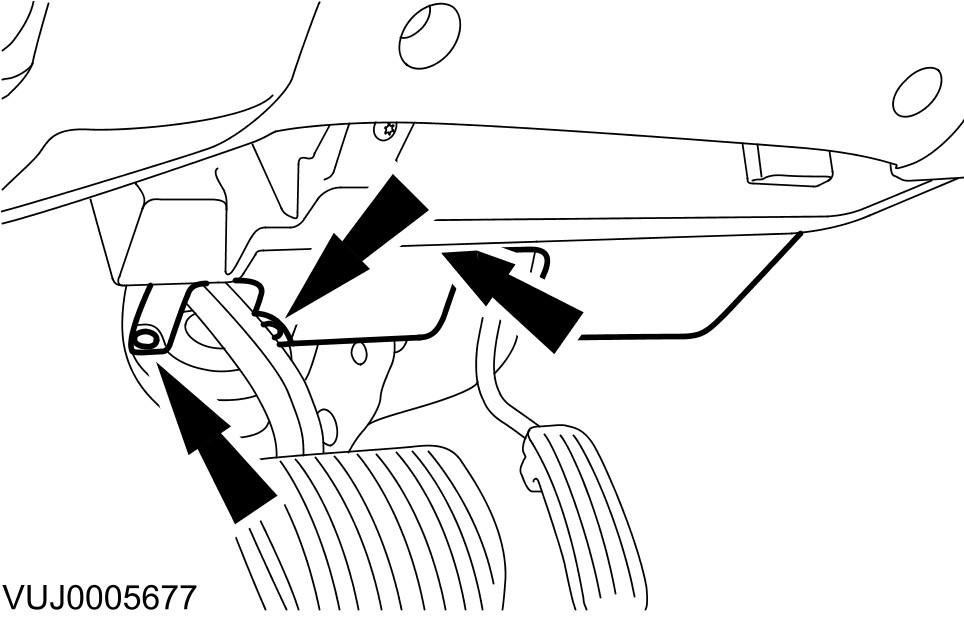

GJ0003279Courtesy of JAGUAR CARS, INC.
  1. Remove the driver side instrument panel lower trim panel.

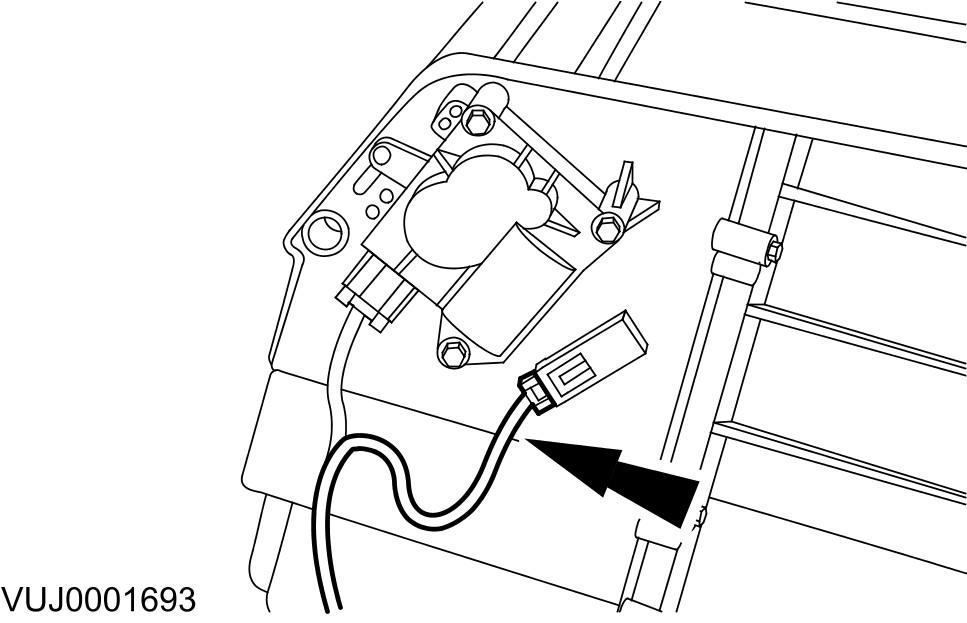

    GJ0003330Courtesy of JAGUAR CARS, INC.
  2. Disconnect the air discharge temperature sensor electrical connector.

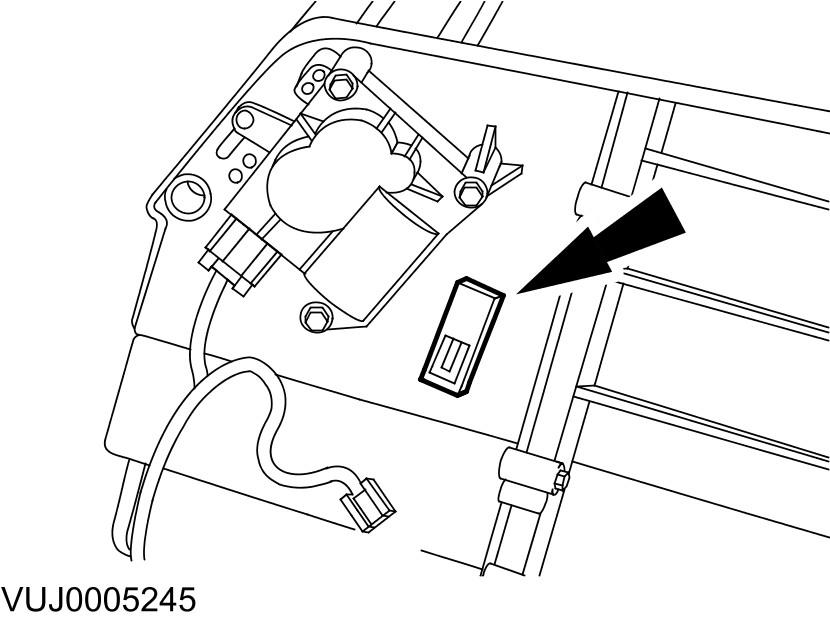

    GJ0003924Courtesy of JAGUAR CARS, INC.
  3. Remove the air discharge temperature sensor.
