Navigation System Display Module: Installation

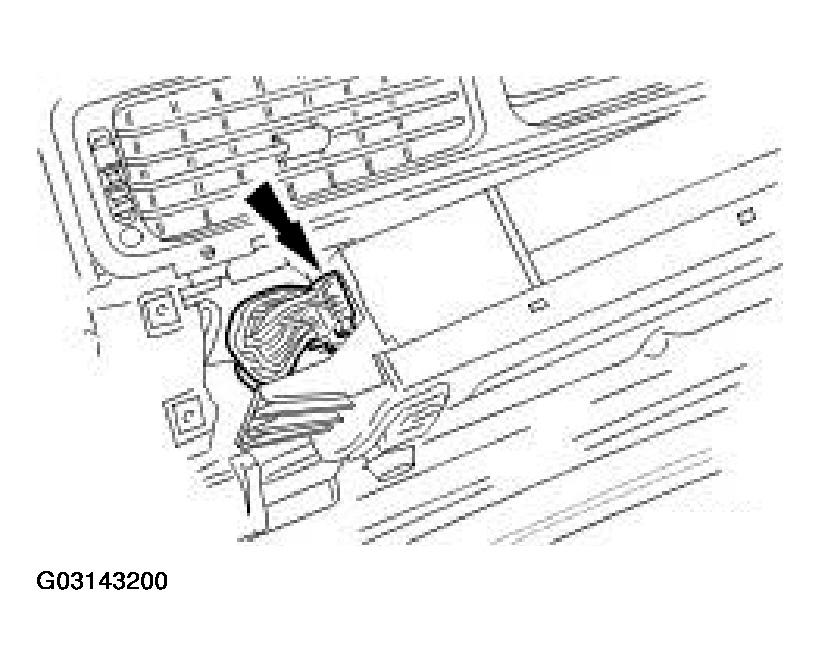

  1. Position panel at fascia and connect harness connectors.
    Fig 1: Connecting Display And Control Panel Connectors
    G03143200

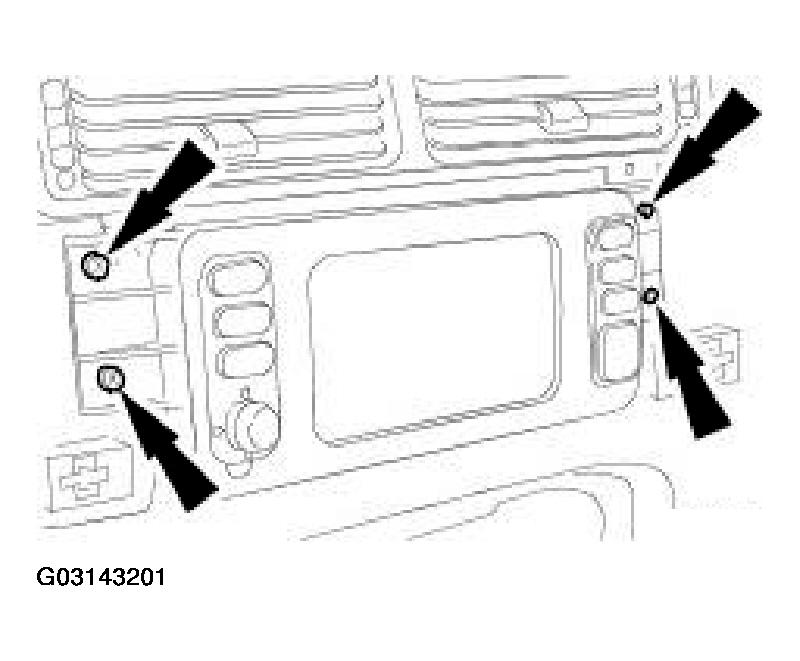

  2. Fully seat panel in fascia and install screws.
    Fig 2: Installing Display And Control Panel Securing Screws
    G03143201

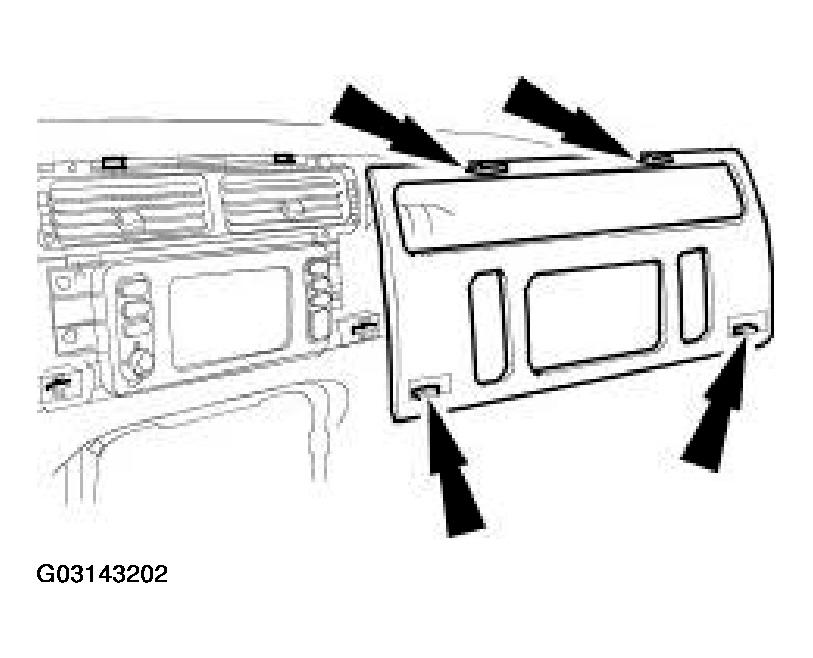

  3. Position and fully seat veneer panel ensuring all securing clips are engaged.
    Fig 3: Installing Veneer Panel
    G03143202
  4. Remove protective tape from adjacent veneers.
  5. Connect ground cable to battery terminal and install battery cover. Refer to BATTERY CONNECT .
