Navigation System Display Module: Removal

Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
Position protective tape along adjacent veneer edges.

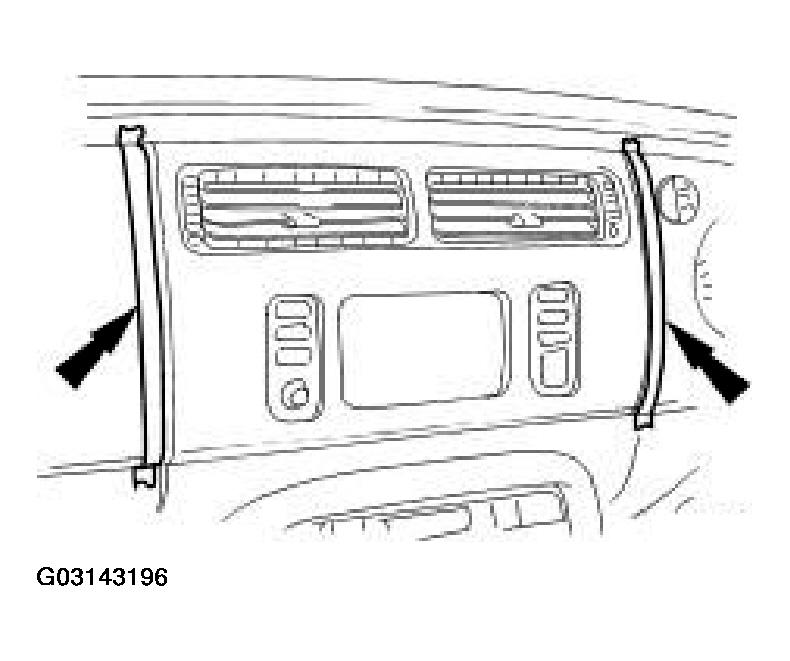

Fig 1: Applying Protective Tape Along Adjacent Veneer Edges
Commencing at bottom, use a thin plastic blade to release four center veneer clips.

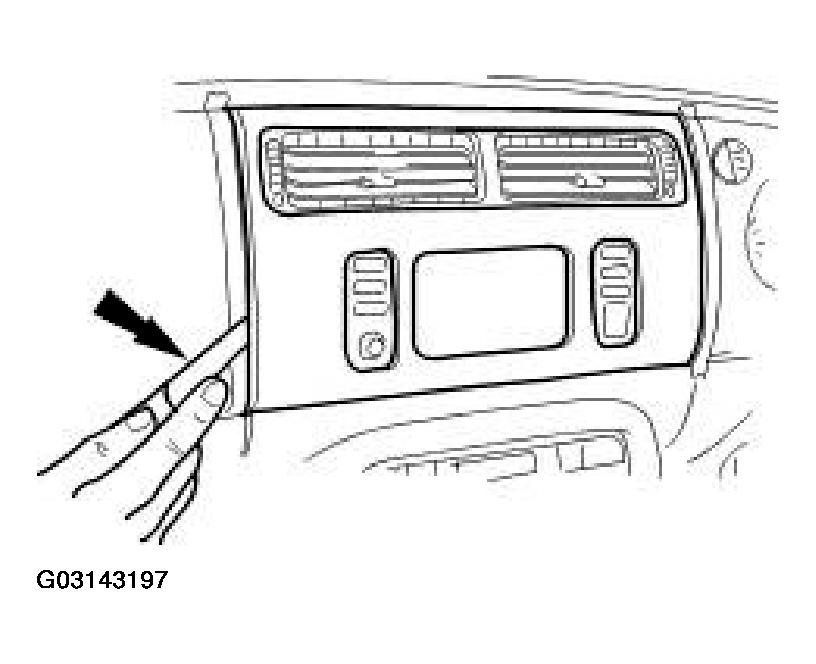

Fig 2: Releasing Center Veneer Clips
Remove the four display and controls panel to fascia screws.

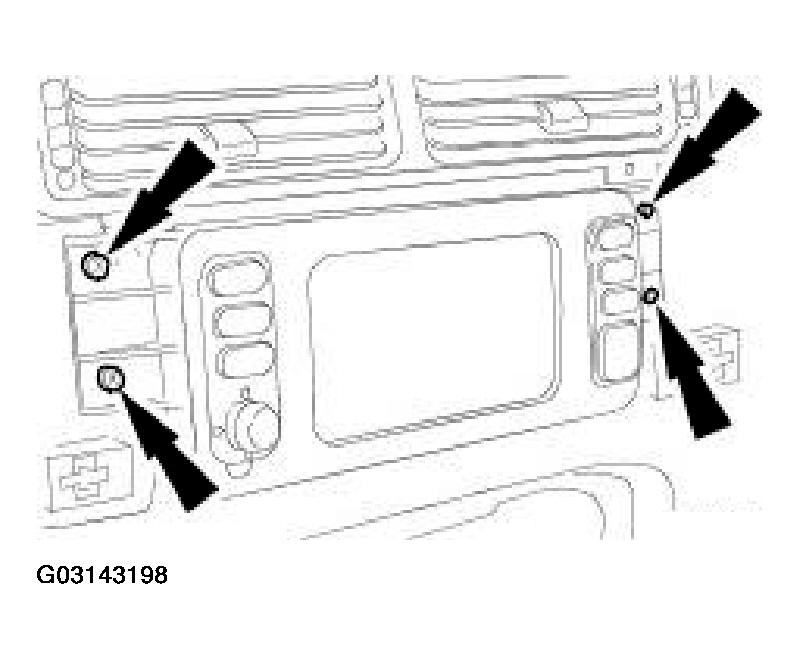

Fig 3: Removing Display And Controls Panel Securing Screws
Remove Panel.
- Partially withdraw panel for access.
- Depressing tangs, disconnect harness connectors.
- Remove panel from fascia

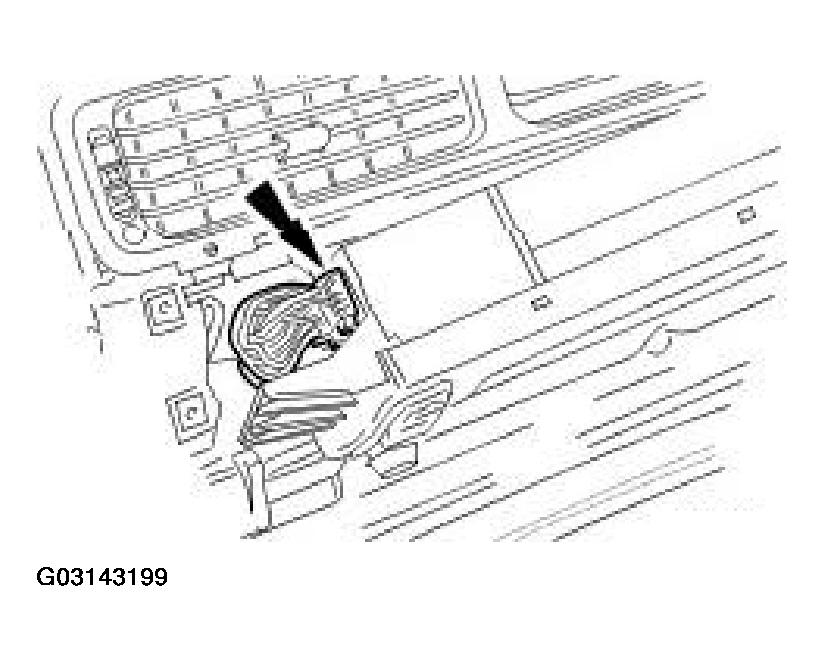

  Fig 4: Disconnecting Display And Control Panel Connectors
