Navigation System Module: Installation

  1. Install Module.
    • Connect harness connector to module.
    • Position module on underside of coolbox lid and firmly seat module on velcro pad.

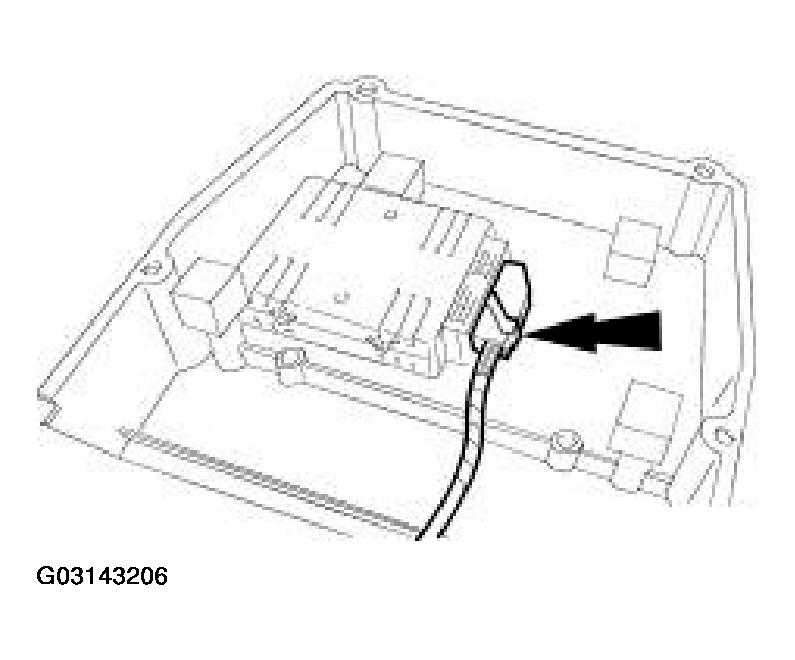

      Fig 1: Installing Module To Coolbox Lid
      G03143206
  2. Position lid on coolbox and install screws.

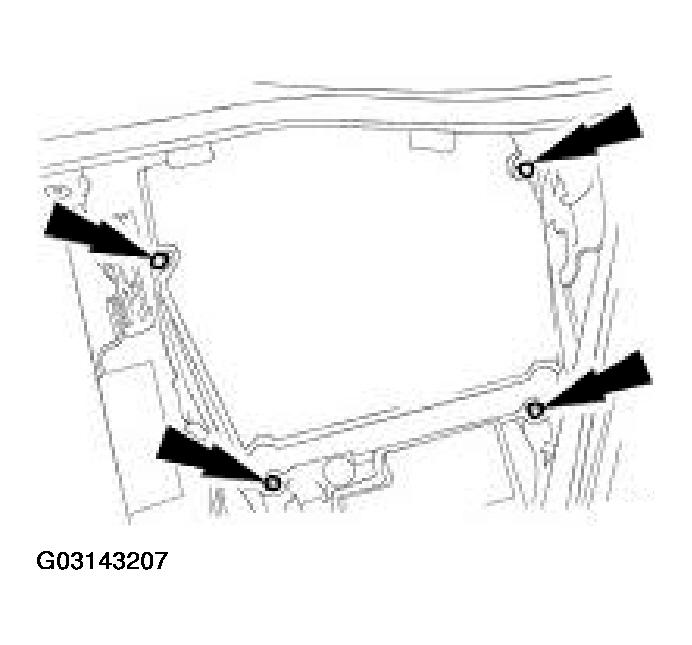

    Fig 2: Positioning Lid On Coolbox And Installing Screws
    G03143207
  3. Install passenger side false bulkhead cover.
  4. Connect ground cable to battery terminal and install battery cover. Refer to BATTERY CONNECT .
