Navigation System Module: Removal

Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
Remove passenger side false bulkhead cover.
- Pull forward then lift cover inner edge to release tangs.
- Pull cover inwards to release outer tabs and lift clear.

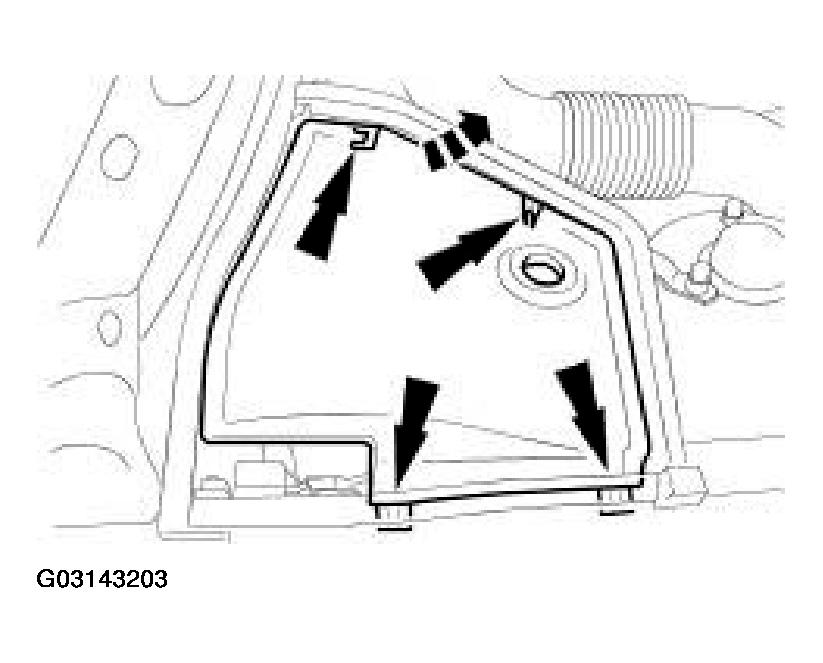

  Fig 1: Removing Passenger Side False Bulkhead Cover
Remove engine compartment coolbox cover screws.

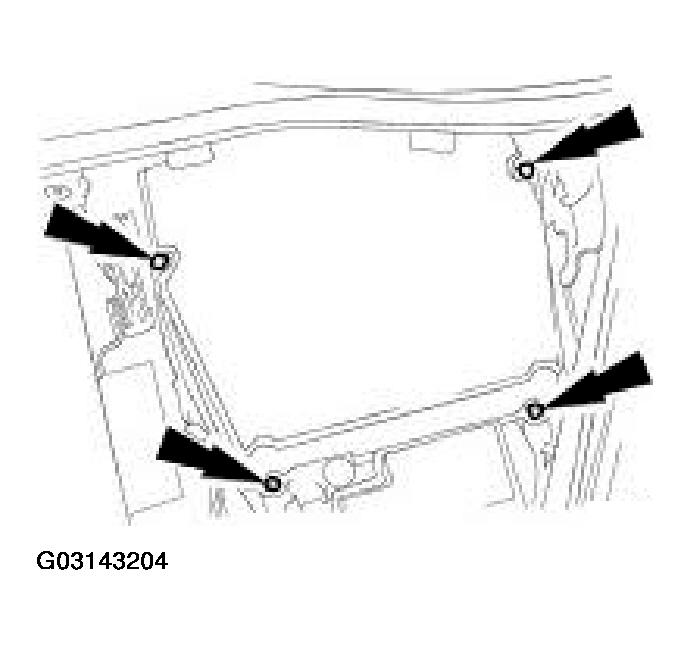

Fig 2: Removing Engine Compartment Coolbox Cover Screws
Remove module from coolbox lid.
- Carefully lift and invert lid for access.
- Disconnect module harness connector.
- Release module from velcro pad.

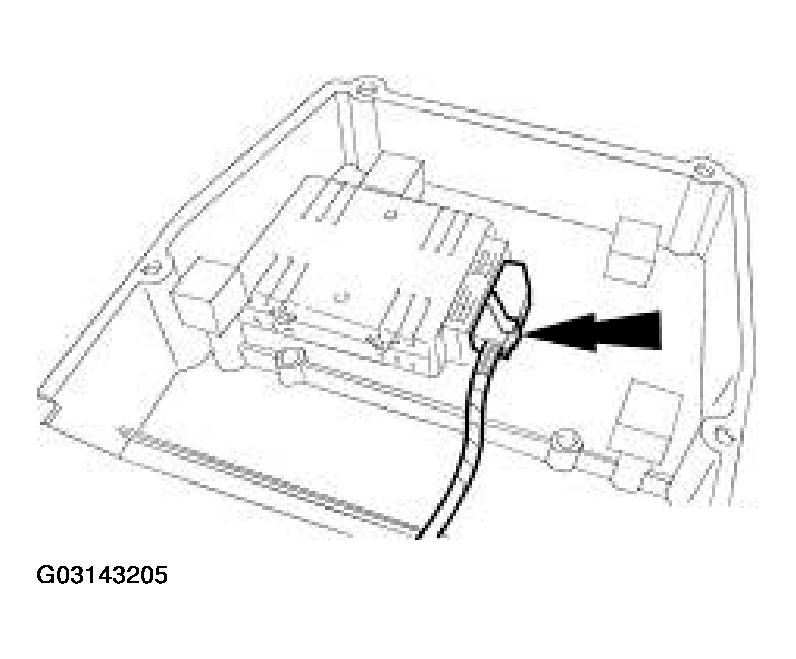

  Fig 3: Removing Module From Coolbox Lid
