Passenger Seat Module (PSM): Installation

  1. To install, reverse the removal procedure.
    • Tighten to 7 Nm.

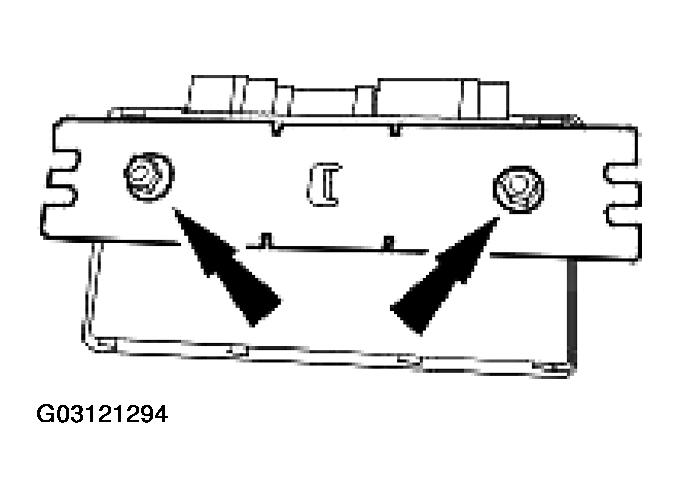

      Fig 1: Installing PSM
      G03121294
  2. Tighten to 4 Nm.

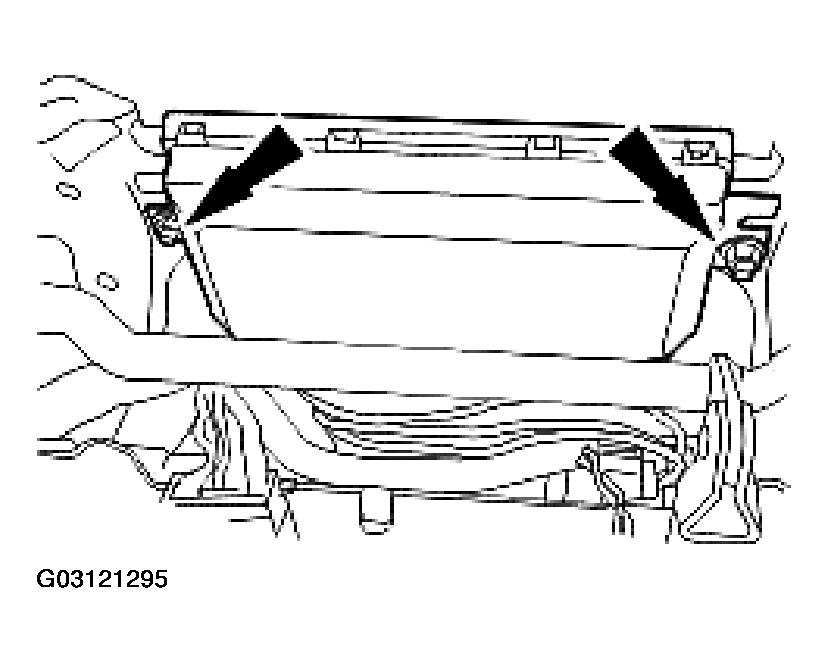

    Fig 2: Tightening Bolts
    G03121295
