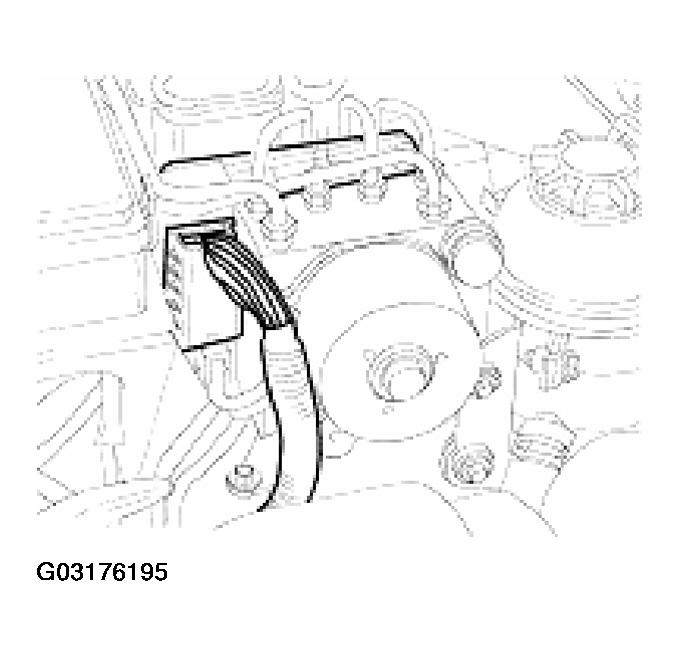

Brake Control Modulator
Courtesy of JAGUAR CARS, INC.
The brake control modulator comprises:
- a ABS/TCCM
- a hydraulic control unit,
- an electrically driven hydraulic pump,
- two low pressure accumulators and damping chambers.
