Transmission Unit Gear Selector

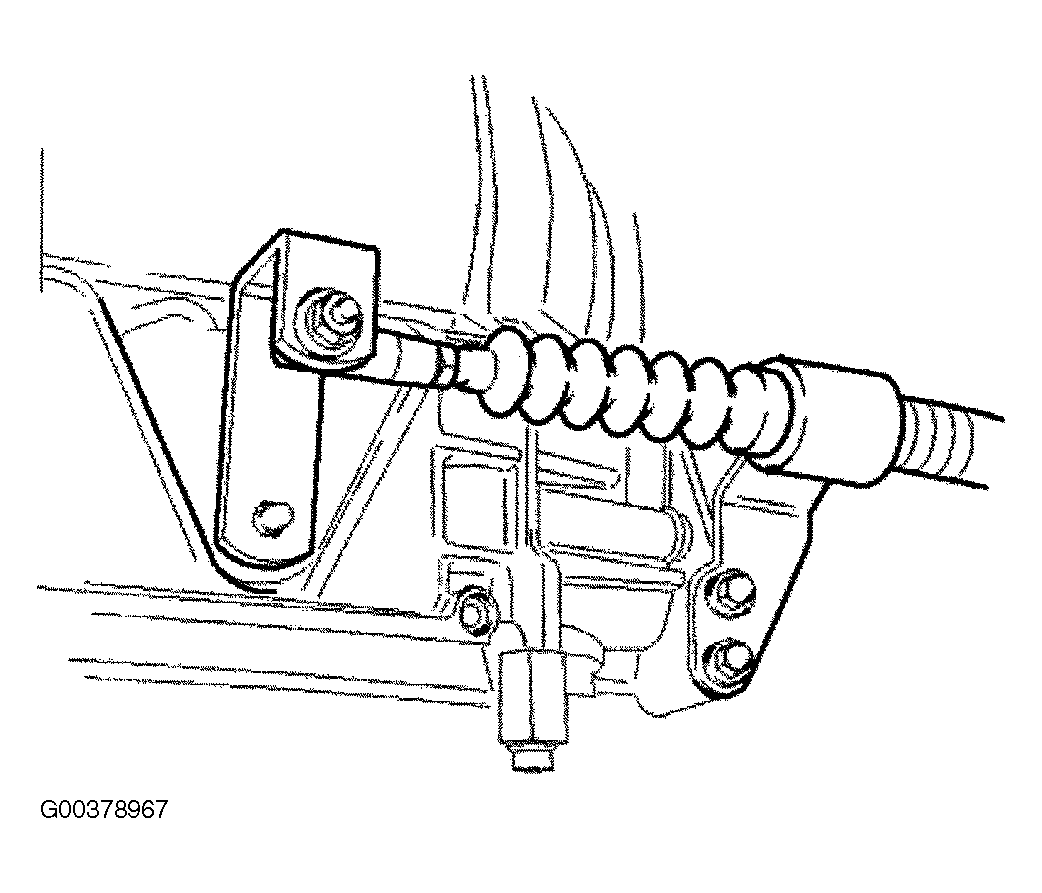

Fig 1: Identifying Transmission Unit Gear Selector

Courtesy of JAGUAR CARS, INC.

The gear selector at the transmission unit:

• Is connected to the operators selector module by cable.
• Operates the selector valve, at the electro-hydraulic control unit.
