Selector Lever Cable & Bracket: Installation

Assemble the cable to the gear shift assembly.

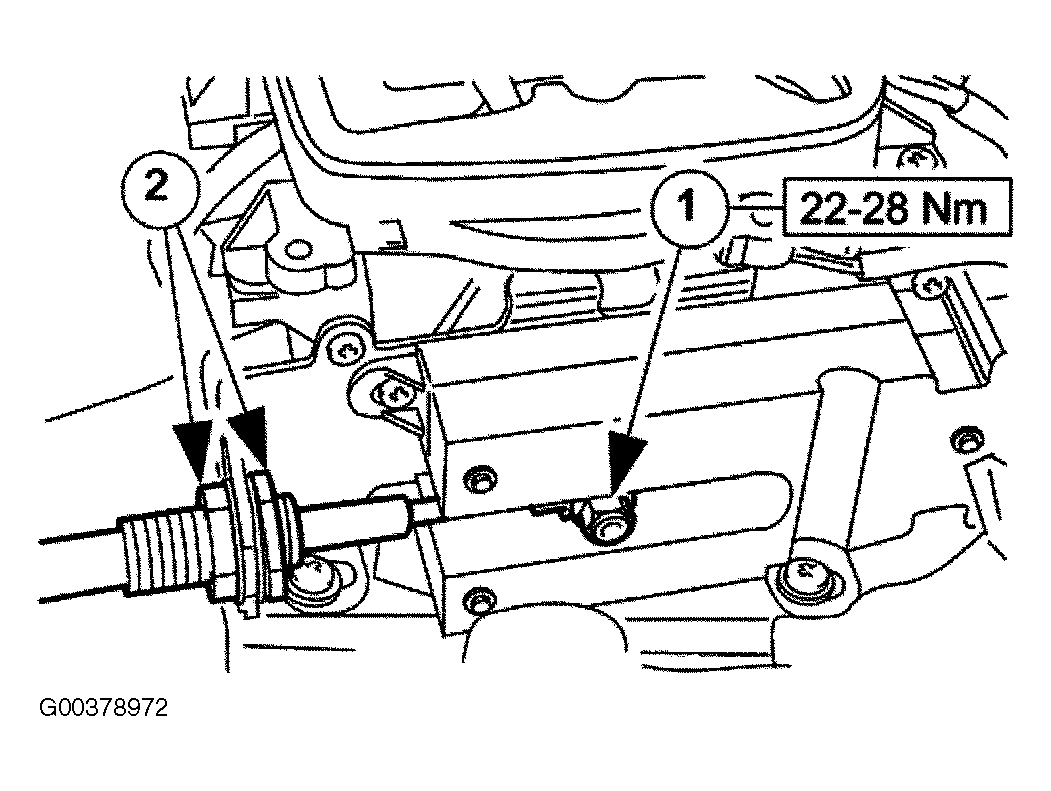

1. Locate the outer cable and fit the inner cable to the gear selector arm. Tighten to the specified torque figure.
2. Position the abutment nuts to the approximate position, but do not tighten.
Fig 1: Installing Selector Cable To Gear Shift Assembly
Courtesy of JAGUAR CARS, INC.

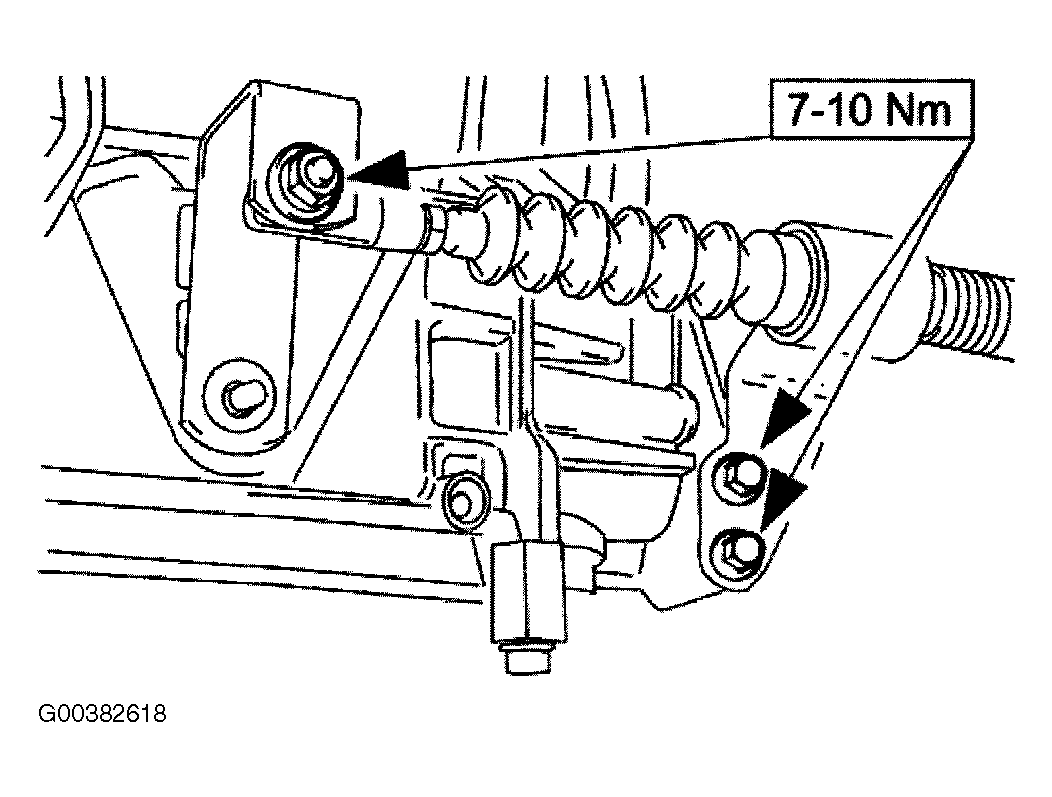

Fit the cable to the transmission and tighten the fixings to the specified torque figure.

Fig 2: Installing Selector Cable To Transmission
Courtesy of JAGUAR CARS, INC.

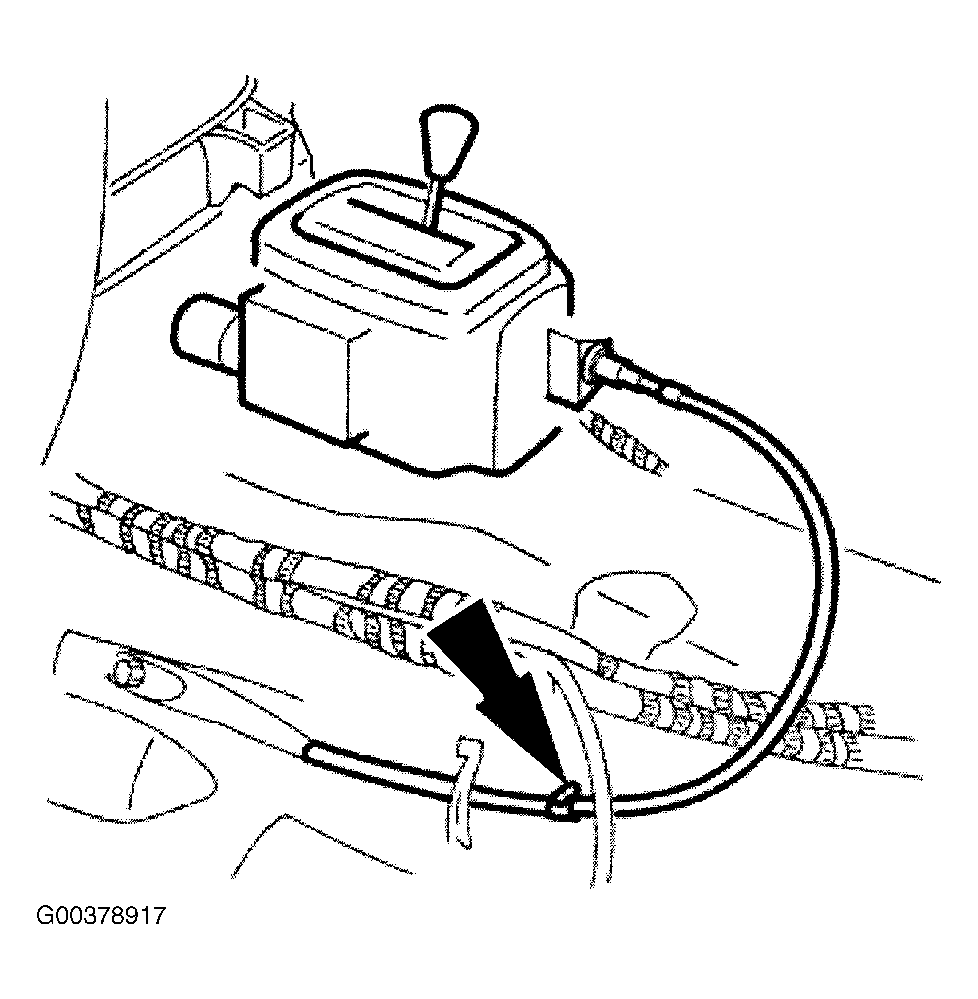

Secure the outer cable. See Figure .
Adjust the selector cable in accordance with SELECTOR LEVER CABLE ADJUSTMENT .
Further installation is the reverse of the removal procedure.
