Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

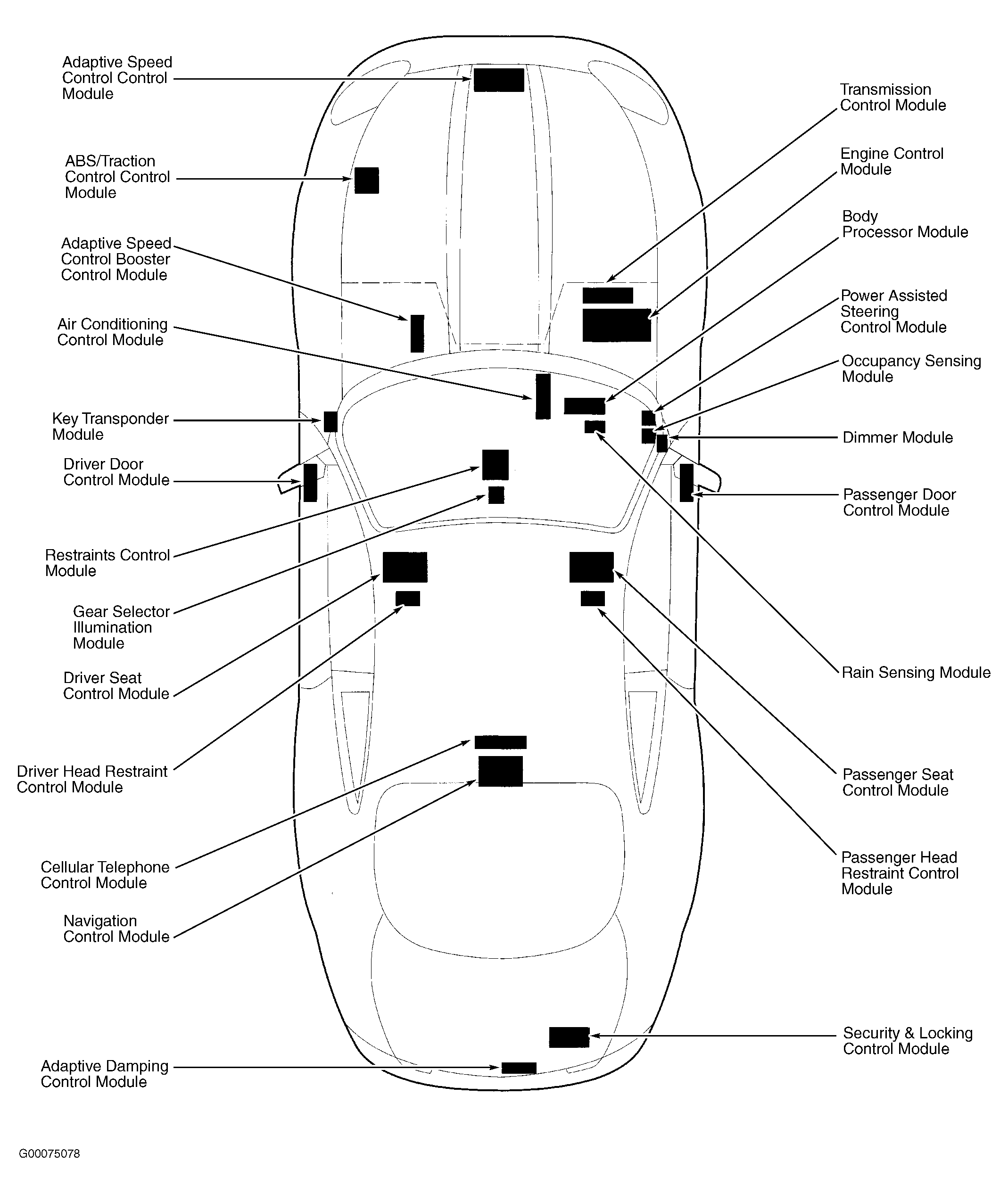

Fig 1: Vehicle Overview
G00075078Courtesy of JAGUAR CARS, INC.

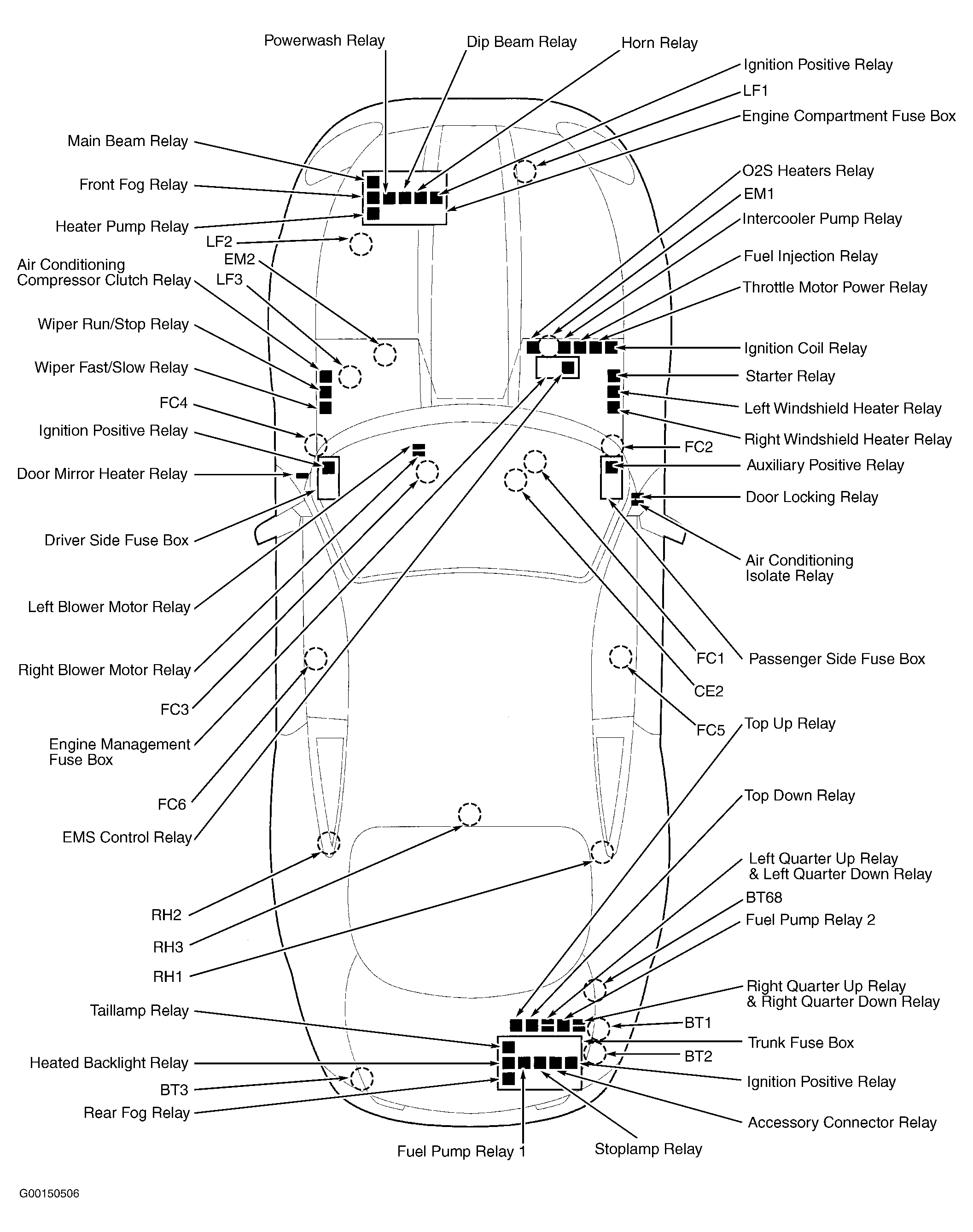

Fig 2: Vehicle Overview
G00150506Courtesy of JAGUAR CARS, INC.
