Jacking & Supporting: Front

To raise both front wheels, position the floor jack centrally under the front body crossmember. See Fig 1 . Raise the vehicle. Place suitable vehicle stands in position at the front vehicle support locations. See Figure . Lower the vehicle onto the vehicle stands.

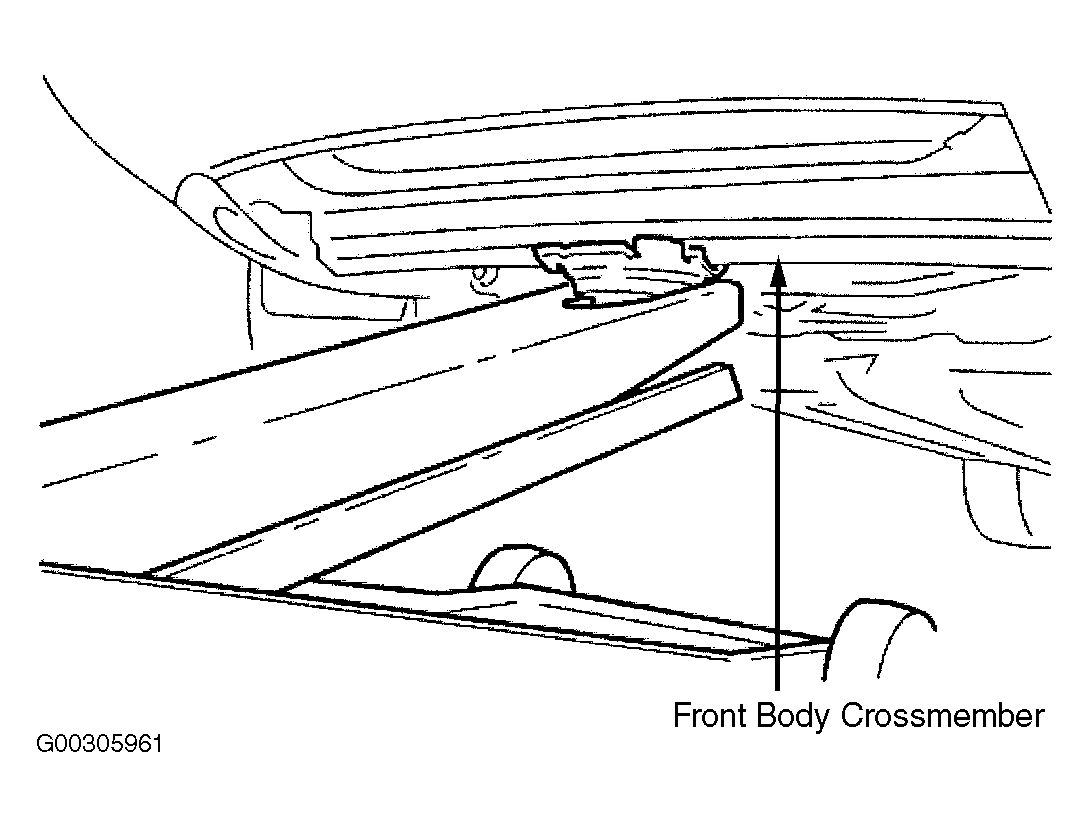

Fig 1: Identifying Front Jacking Location

Courtesy of JAGUAR CARS, INC.
