Ignition Coil: Service and Repair

Ignition Coil-On-Plug

Removal







1. Remove the oil level indicator.







2. NOTE: Left-hand shown, right-hand similar.

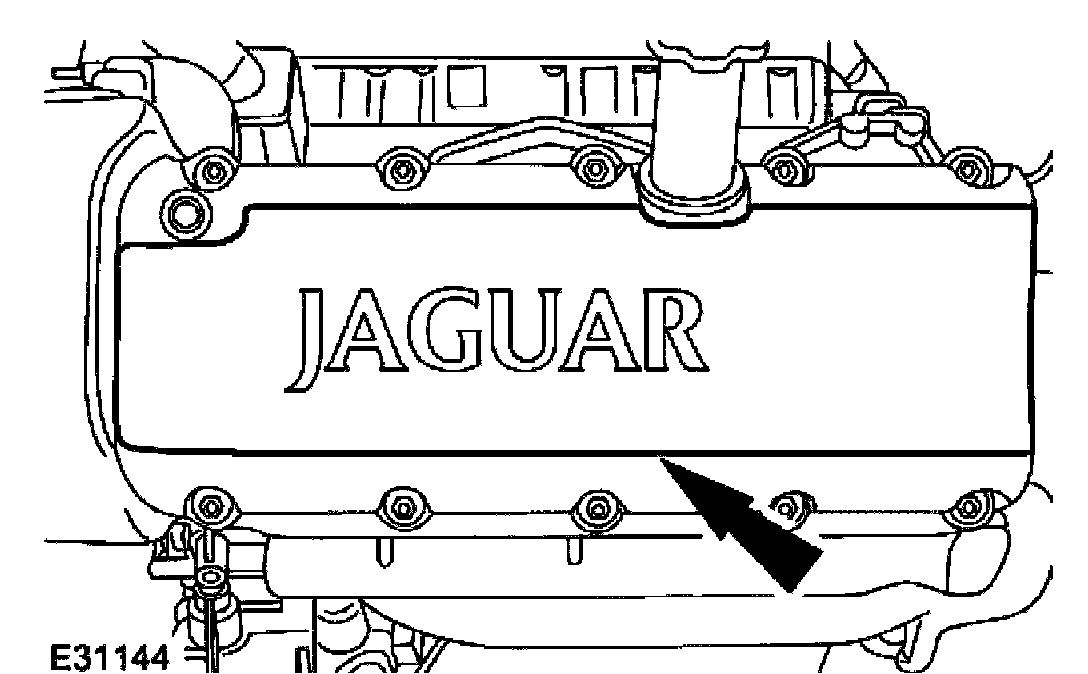

Remove the ignition coil-on-plug cover.

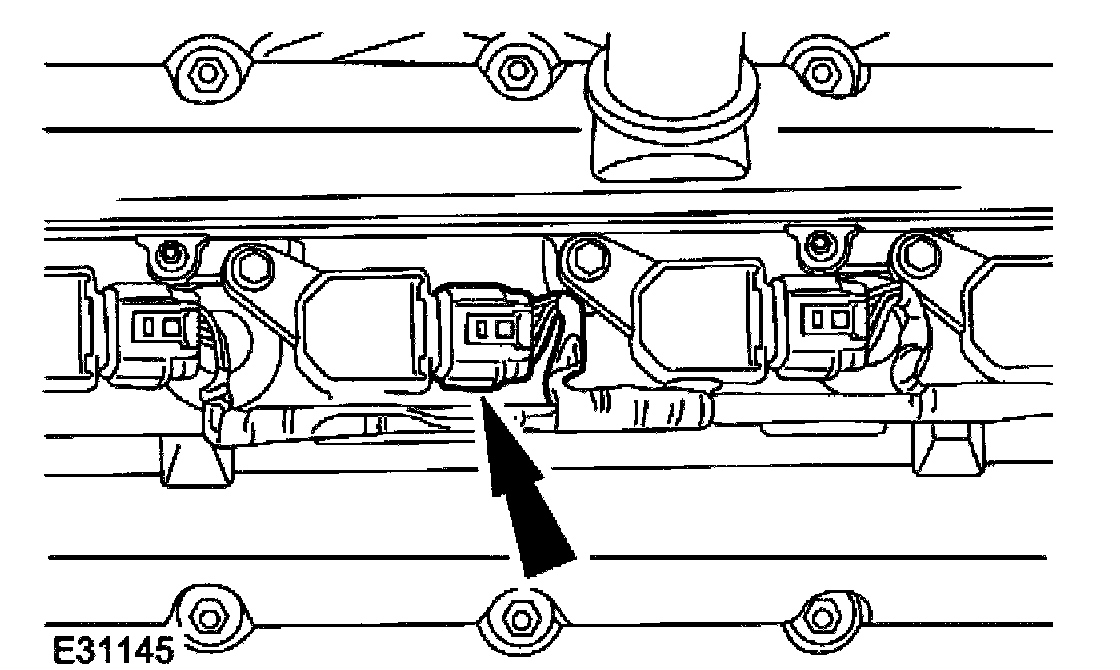

3. Disconnect the ignition coil-on-plug electrical connector.

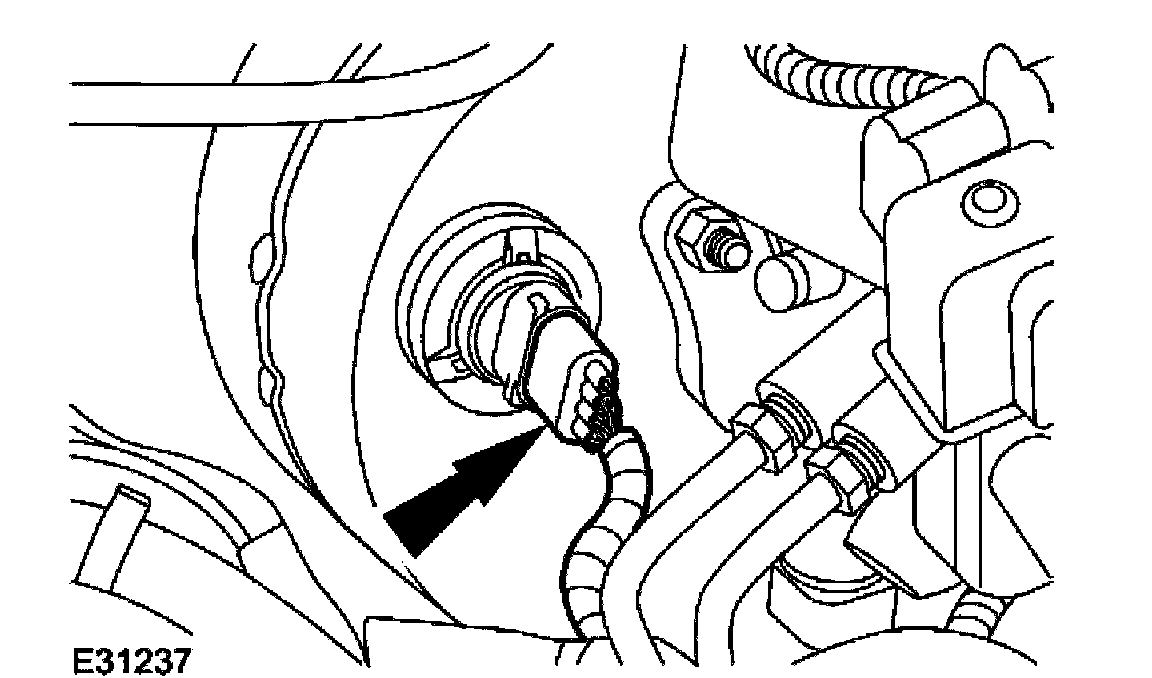

4. Disconnect the brake servo pressure sensor electrical connector.

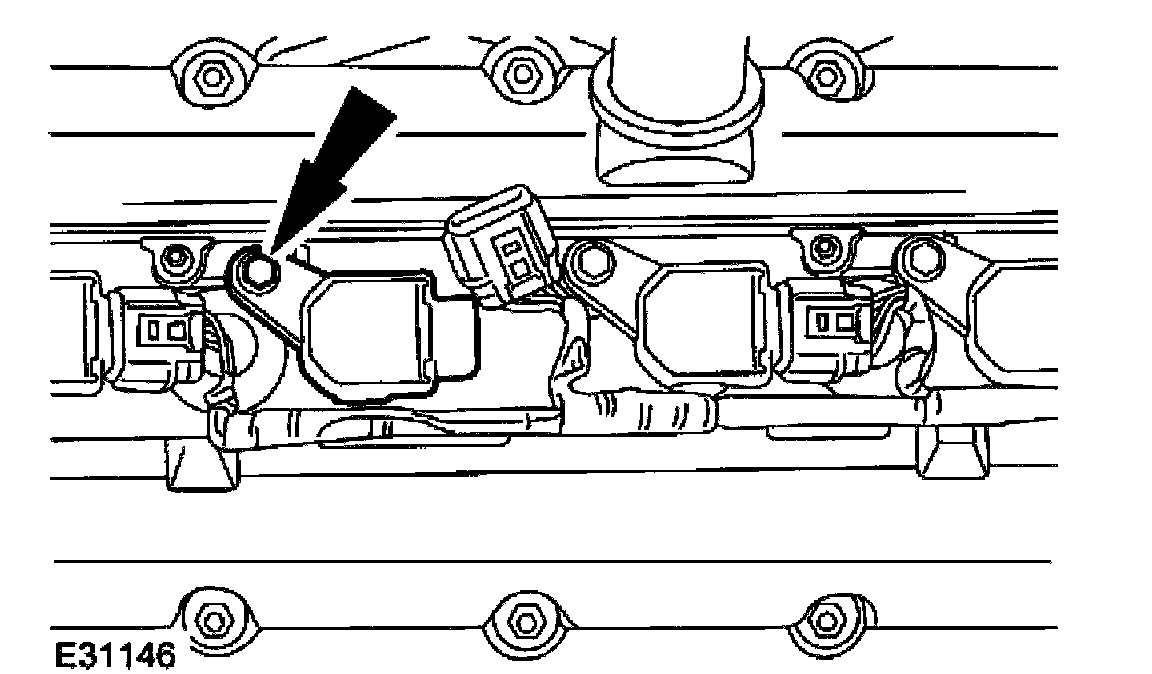

5. Remove the ignition coil-on-plug.

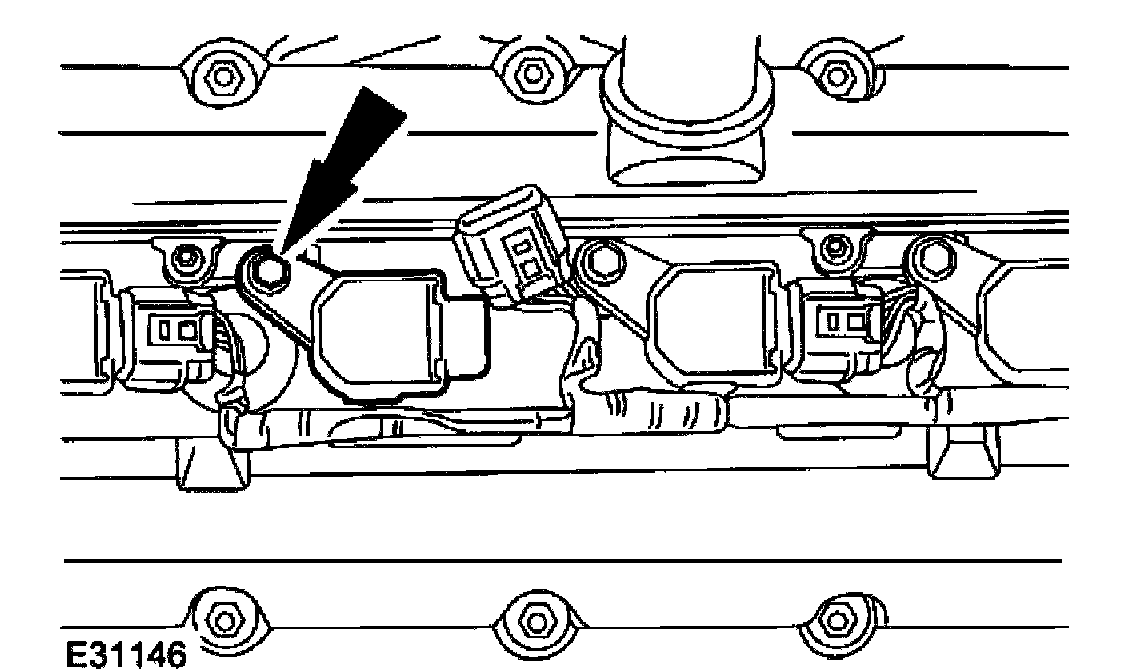

- Remove the retaining bolt.

Installation
1. To install, reverse the removal procedure.







2. Tighten to 5 Nm.
