Ignition System

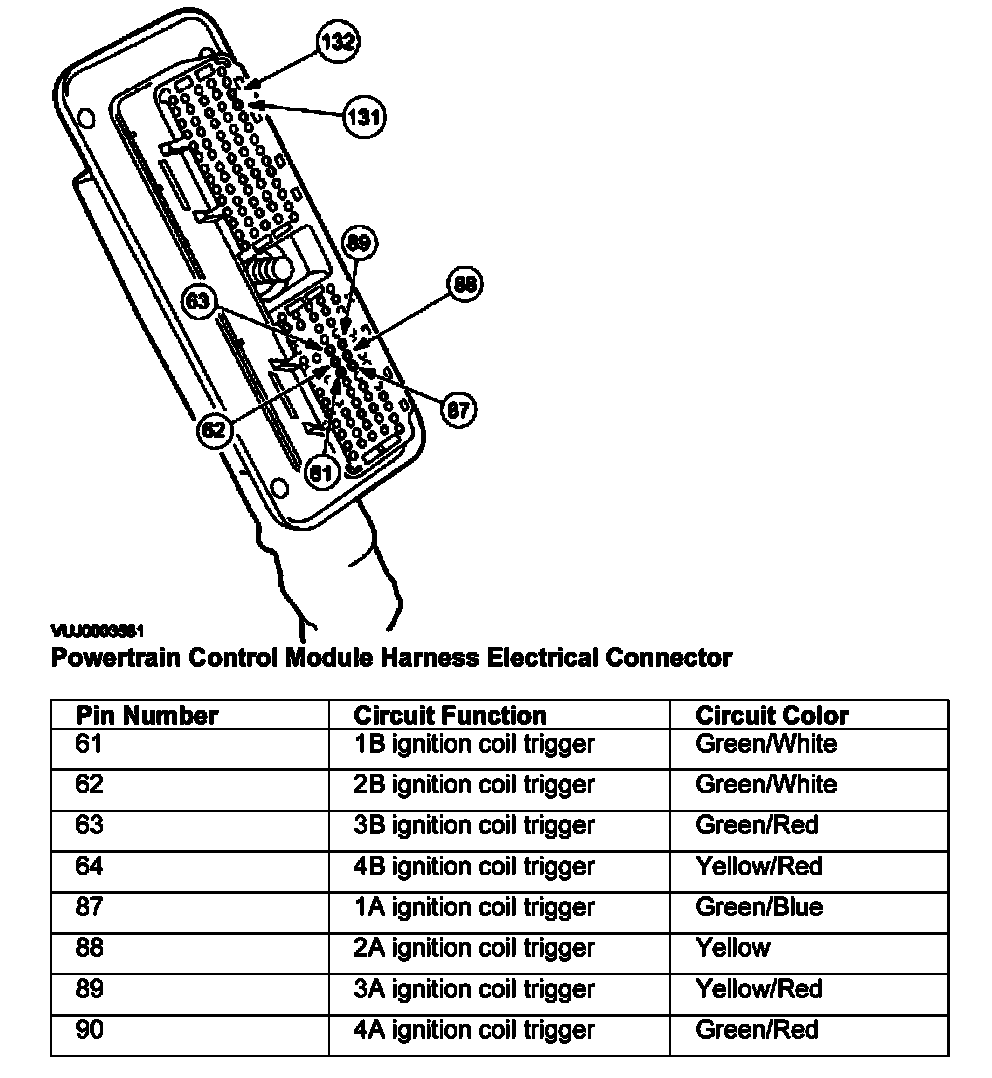

Powertrain Control Module Harness Electrical Connector:

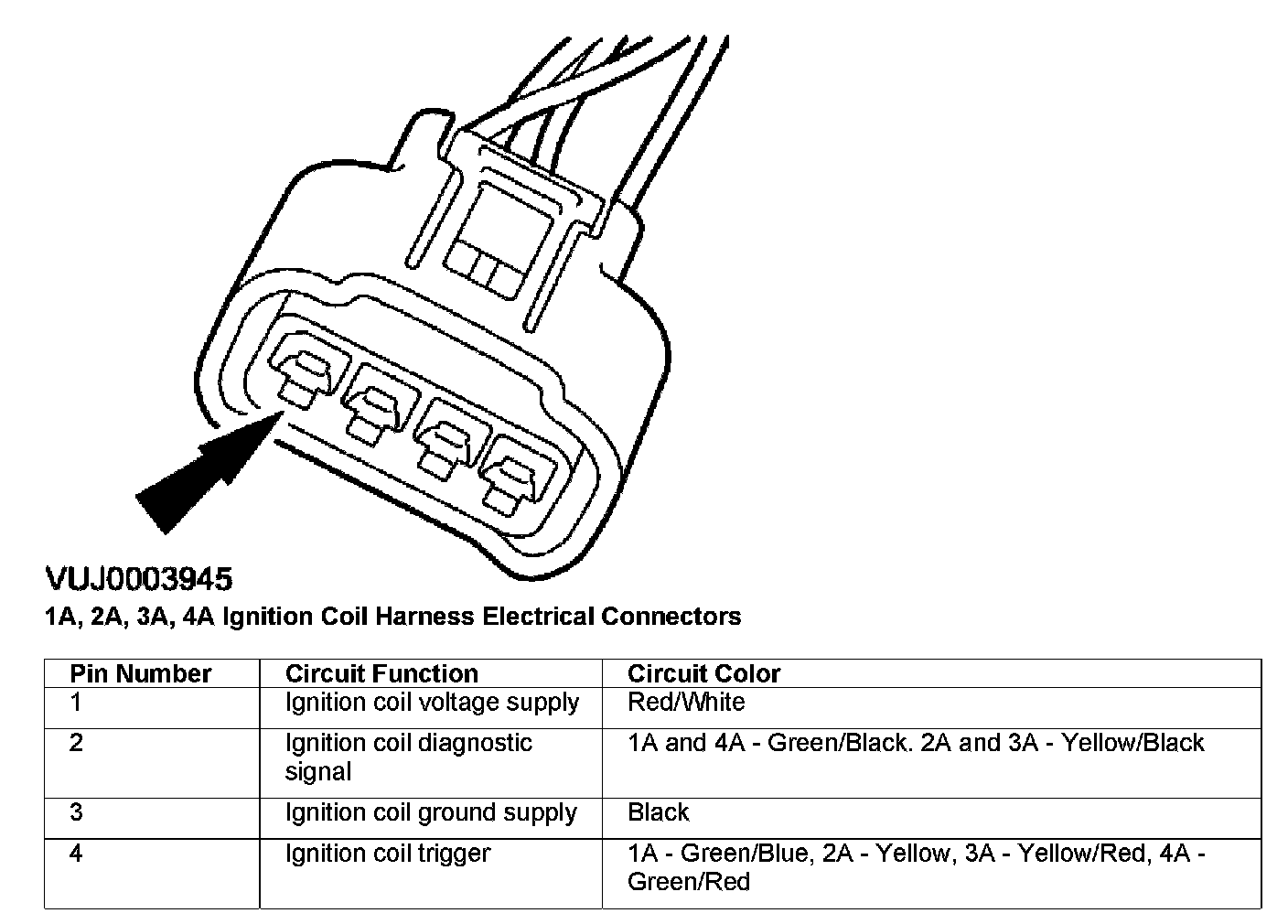

1A, 2A, 3A, 4A, Ignition Coil Harness Electrical Connectors:

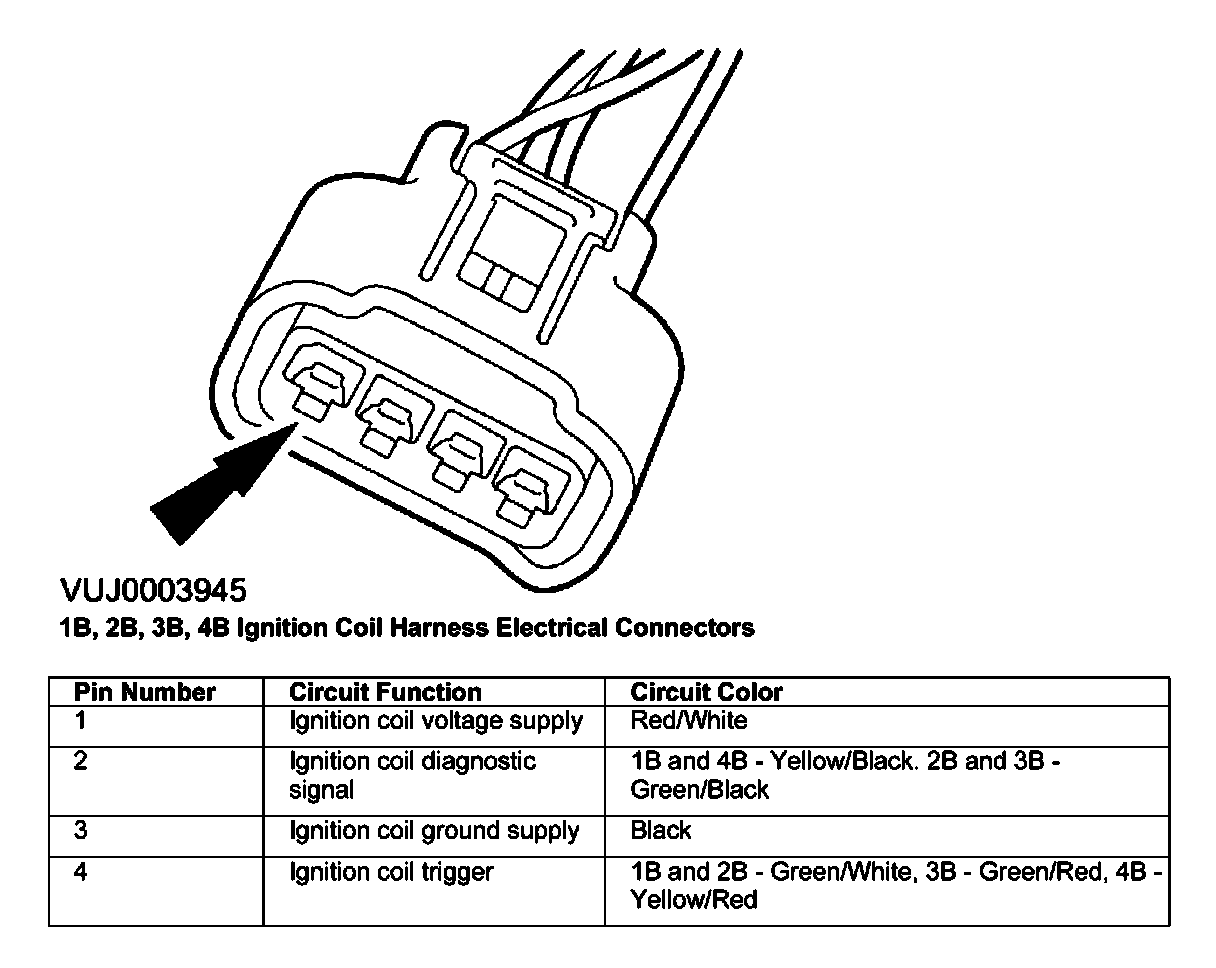

1B, 2B, 3B, 4B, Ignition Coil Harness Electrical Connectors:




1A, 2A, 3A, 4A, 1B, 2B, 3B, 4B Ignition Coils:
