Variable Valve Timing Solenoid: Service and Repair

Variable Camshaft Timing Oil Control Solenoid

Removal

Right-Hand Bank
1. Remove the right-hand valve cover.

Left-Hand Bank
2. Remove the left-hand valve cover.

Right-Hand and Left-Hand Banks

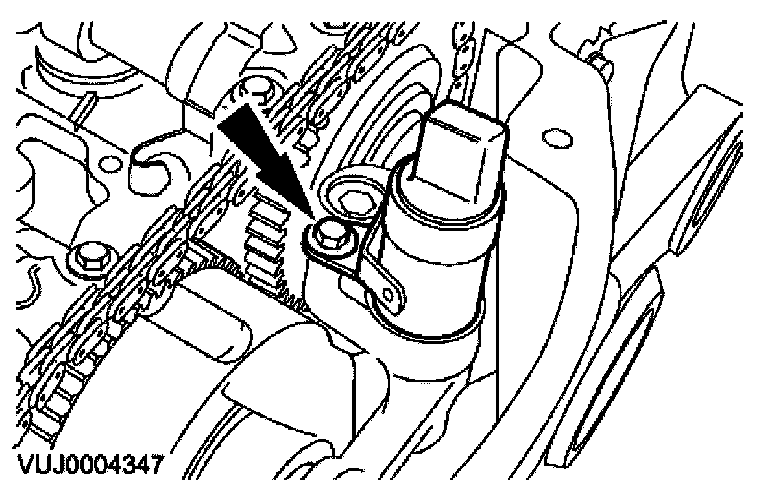

3. Remove the variable camshaft timing oil control solenoid.

Installation

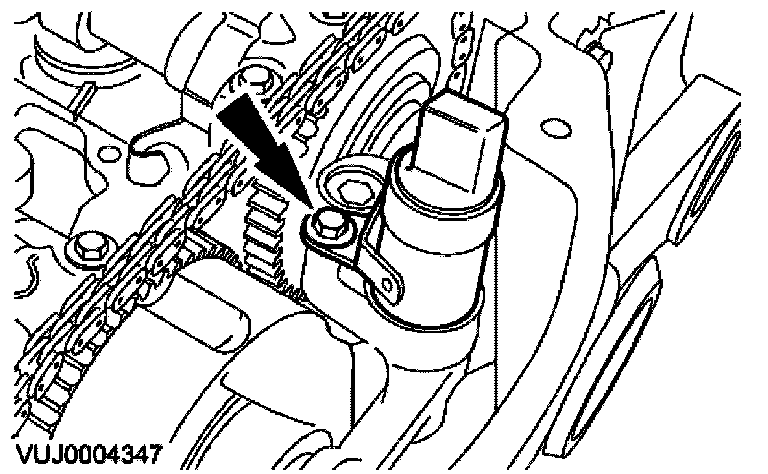

1. To install, reverse the removal procedure.
- Tighten to 10 Nm.
