Air Conditioning Control Module (001) Connector End View

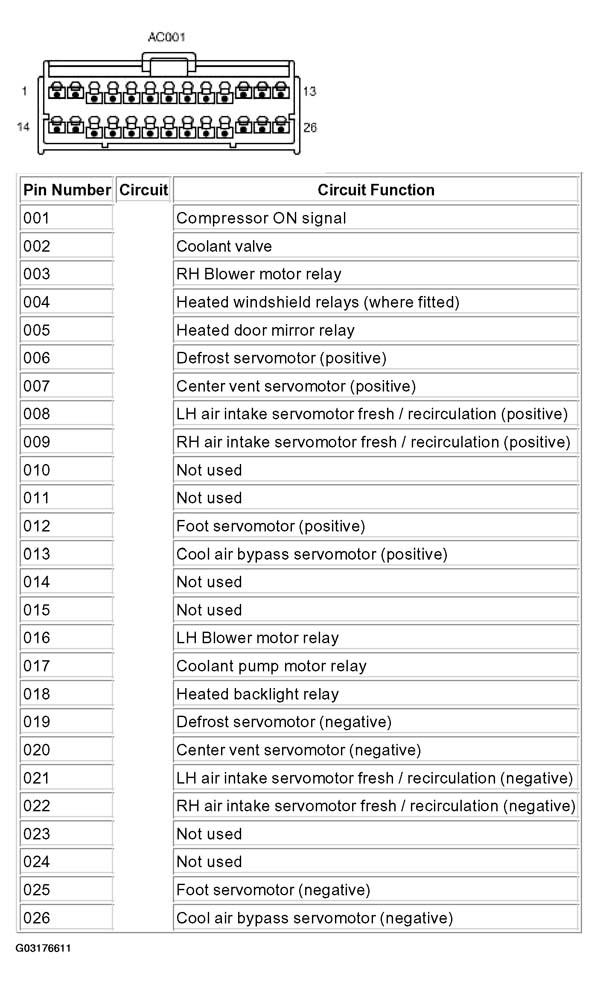

Fig 1: Air Conditioning Control Module (001) Connector End View
G03176611Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
