Air Discharge Temperature Sensor - Removal and Installation: Removal
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
- Remove heater matrix for access.
 Courtesy of JAGUAR CARS, INC.
|

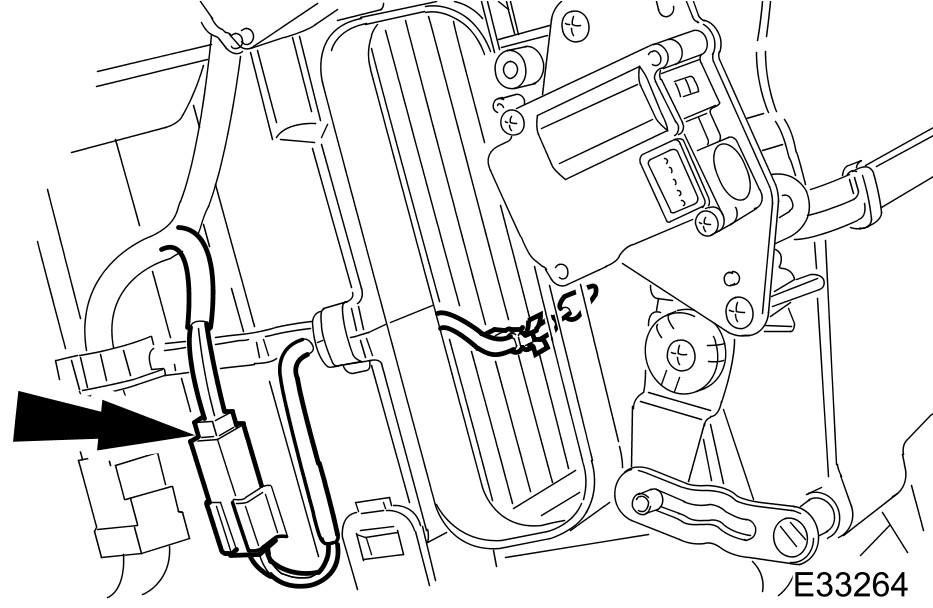

- Detach sensor connector from heater / cooler assembly.
 Courtesy of JAGUAR CARS, INC.
|

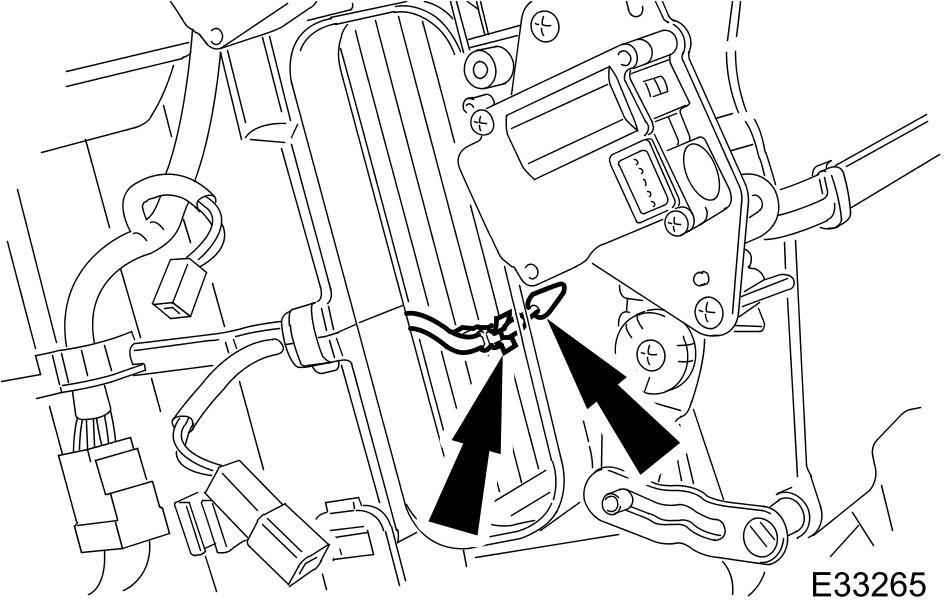

- Detach clip and sensor from evaporator.
 Courtesy of JAGUAR CARS, INC.
|

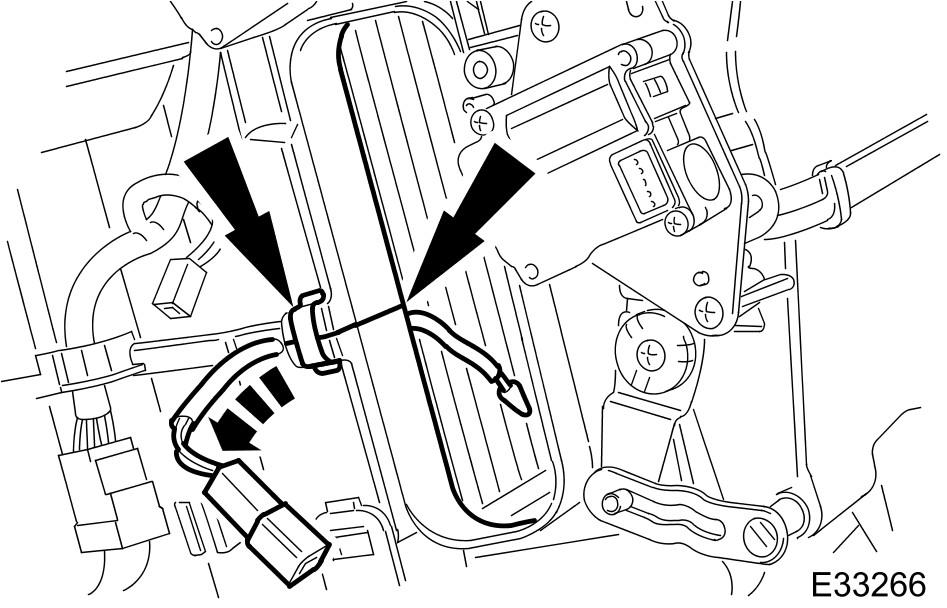

- Remove sensor from heater / cooler assembly.
- Remove clip.
- Lever case apart sufficient enough to withdraw sensor through aperture.
