Abs Module

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

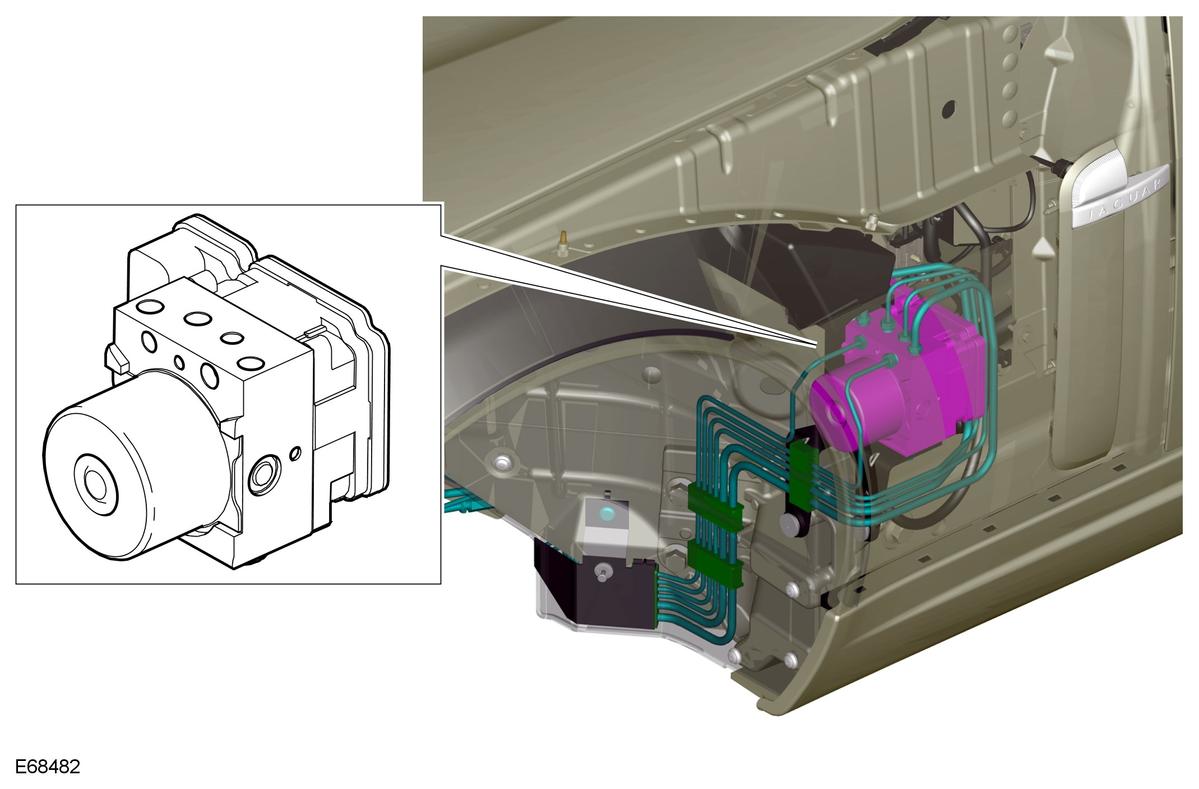

Fig 1: ABS Module

Courtesy of JAGUAR CARS, INC.

The ABS module is secured to a mounting bracket located in the LH front wheel arch. The module is mounted on the rear face of the Hydraulic Control Unit (HCU), which it uses to control all braking and stability functions by modulating hydraulic pressure to the individual wheel brakes.

Two different ABS modules are available; one for vehicles with standard Speed Control, one for vehicles fitted with Adaptive Speed Control. Both incorporate analogue valves which offer refined pressure control and reduced noise levels over previously used systems.

If an ABS modulator fault is detected, 'ABS FAULT' will be displayed in the instrument cluster message center and the amber warning indicator will illuminate. Refer to Information and Message Center article.

CAUTION: The ABS module and the Hydraulic Control Unit (HCU) are a single unit and must not be separated.
